MGMT (RJ-45 10/100/1000 management
port)
5Fixed fan modules on C9200L switches2
StackWise-80 port connectors6Power supply module slots3

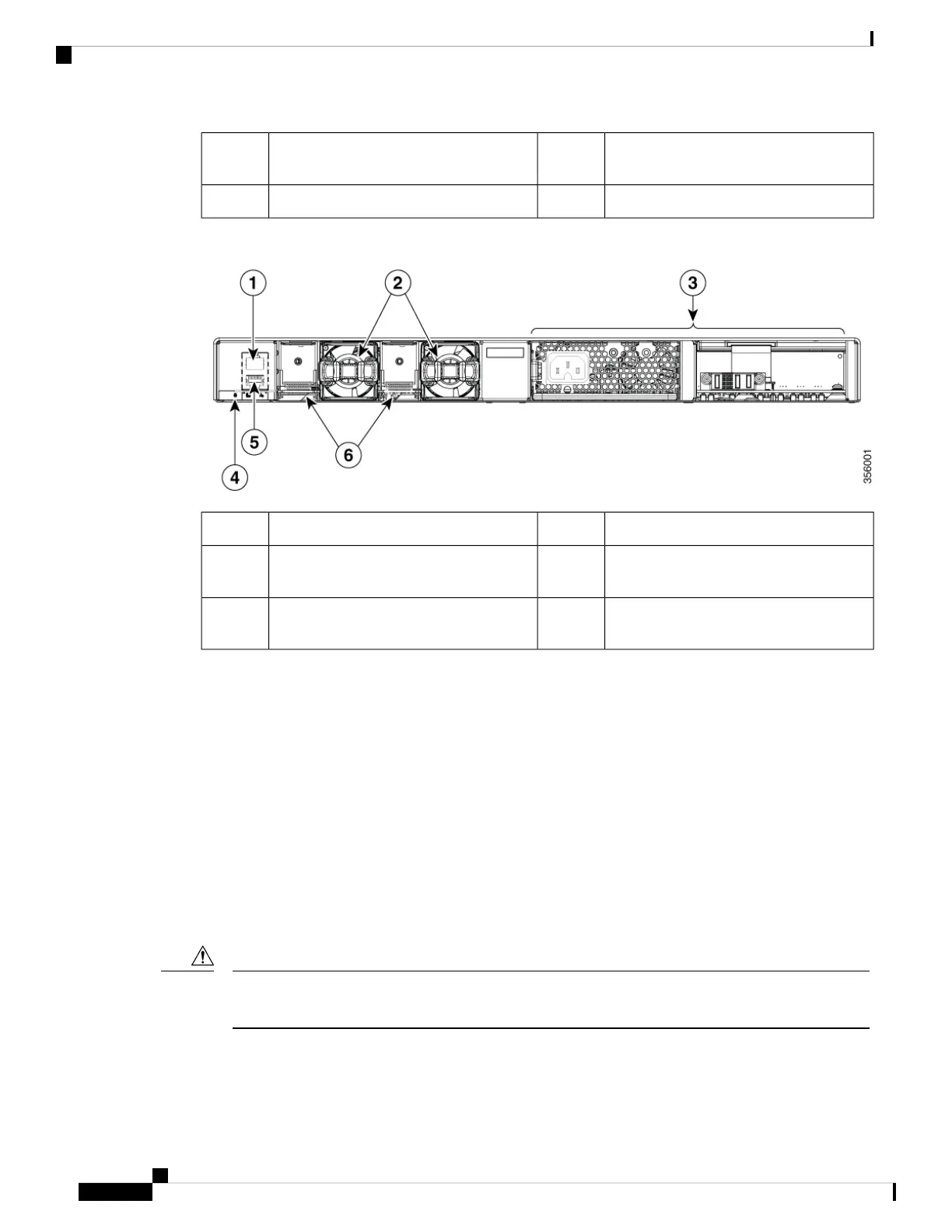

Figure 5: Rear Panel of a C9200 Switch
Blue Beacon LED4RJ-45 console port1
MGMT (RJ-45 10/100/1000 management
port)
5Modular fan modules on C9200 switches2
StackWise-160 port connector slots with
stack blanks installed
6Power supply module slots3
RFID Tag
The switch has a built-in, front-facing, passive RFID tag that uses UHF RFID technology and requires an
RFID reader with compatible software. It provides auto-identification capabilities for asset management and
tracking. The RFID tags are compatible with the Generation 2 GS1 EPC Global Standard and are ISO 18000-6C
compliant. They operate in the 860- to 960-MHz UHF band. For more information, see Radio Frequency
Identification (RFID) on Cisco Catalyst 9000 Family Switches White Paper.
StackWise Ports
StackWise ports are used to connect switches in StackWise stacking configurations. The switch ships with a
0.5-meter StackWise cable that you can use to connect the StackWise ports. For more information on StackWise
cables, see Connecting to the StackWise Ports, on page 43.
Use only approved cables, and connect only to similar Cisco equipment. Equipment might be damaged
if connected to nonapproved Cisco cables or equipment.
Caution
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
10
Product Overview
RFID Tag
