Cisco Catalyst C9200L-24PXG-4X-E Hardware Installation Guide

Procedure
Step 1 Place the DIN rail mount on the DIN rail, making sure that the top of the DIN rail mount clip hooks over the
top of the DIN rail.
Step 2 Sliding the release tab downwards, hook the clip on to the rail and release the tab until the rail mount clip
locks into place with a click.

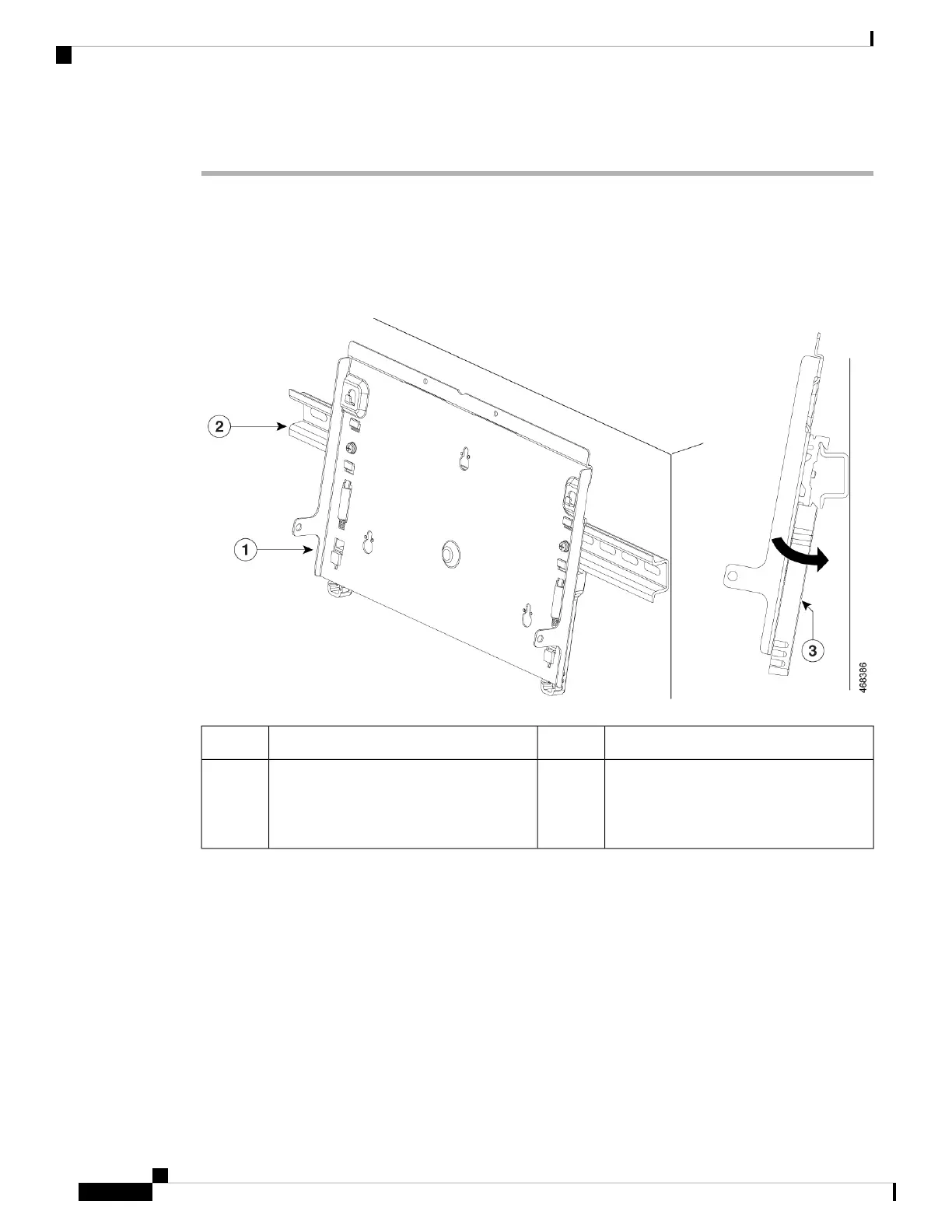

Figure 35: Attaching the DIN Rail Mount to the DIN Rail
Release tab3DIN rail mount1
--DIN rail
Note that the DIN rail is not
part of the DIN Rail Mount kit.
Note
2
Step 3 Place the switch on to the DIN rail mount and secure it using the two 10-32 Phillips pan-head screws.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
64
Installing a Compact Switch
Mounting the Switch on a DIN Rail
