• Power adapter bracket (C9K-ADPT-BRKT-12T)
• One 8-18 Phillips pan-head screws
• Two M3x6mm pan head screw
• Phillips screwdriver
Procedure
Step 1 Thread the velcro straps through the slots on the adapter bracket that corresponds to the size of the adapter.
You can thread the strap based on the size of the power adapter. The following illustration displays some
examples.

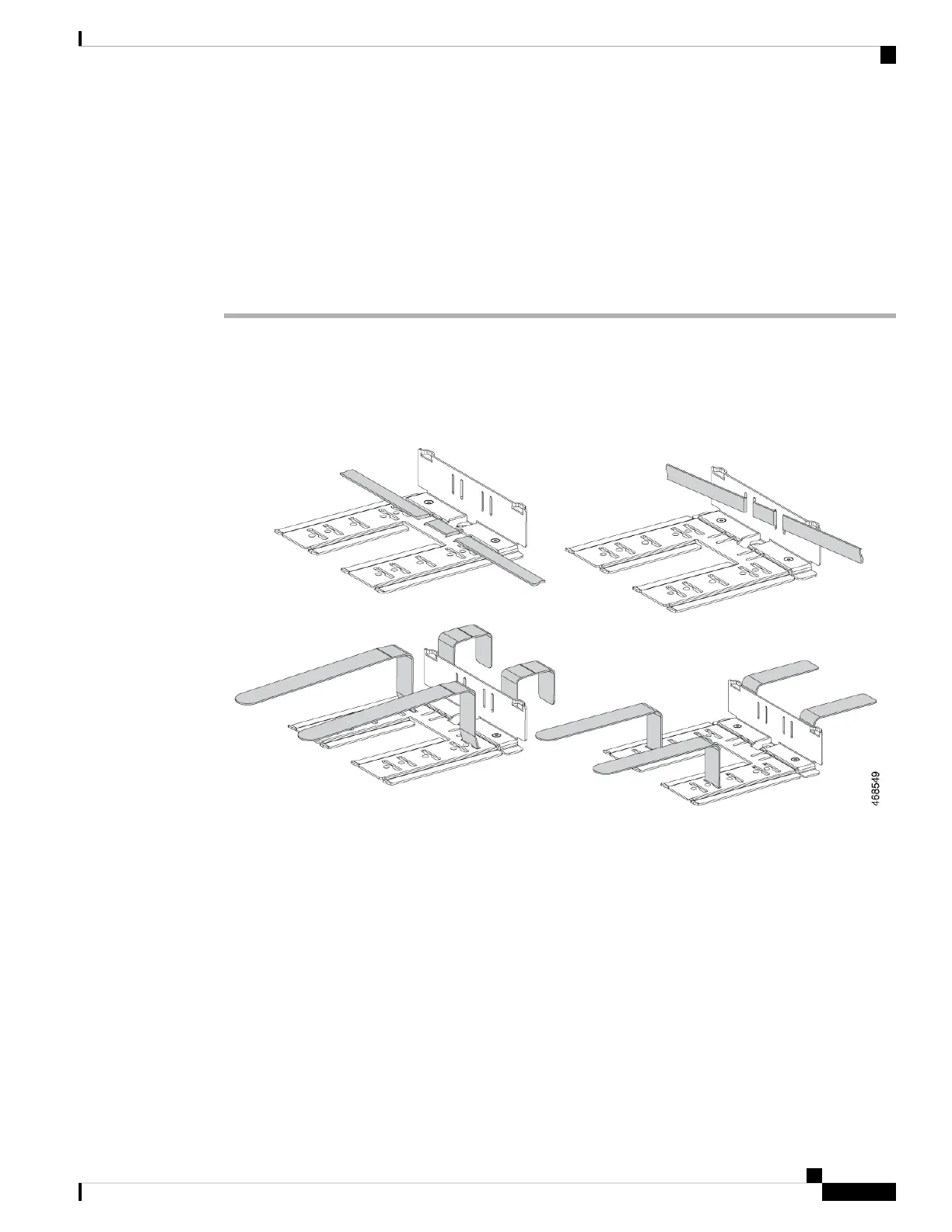

Figure 39: Threading the Velcro Strap through the Adapter Bracket
Step 2 Attach the power adapter bracket using the two M3 x 6 mm Phillips pan head screws provided. The adapter
bracket can be fixed in different positions to suit the size of the adapter used.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
67
Installing a Compact Switch
Attaching the Adapter Bracket to the Switch (Optional)
