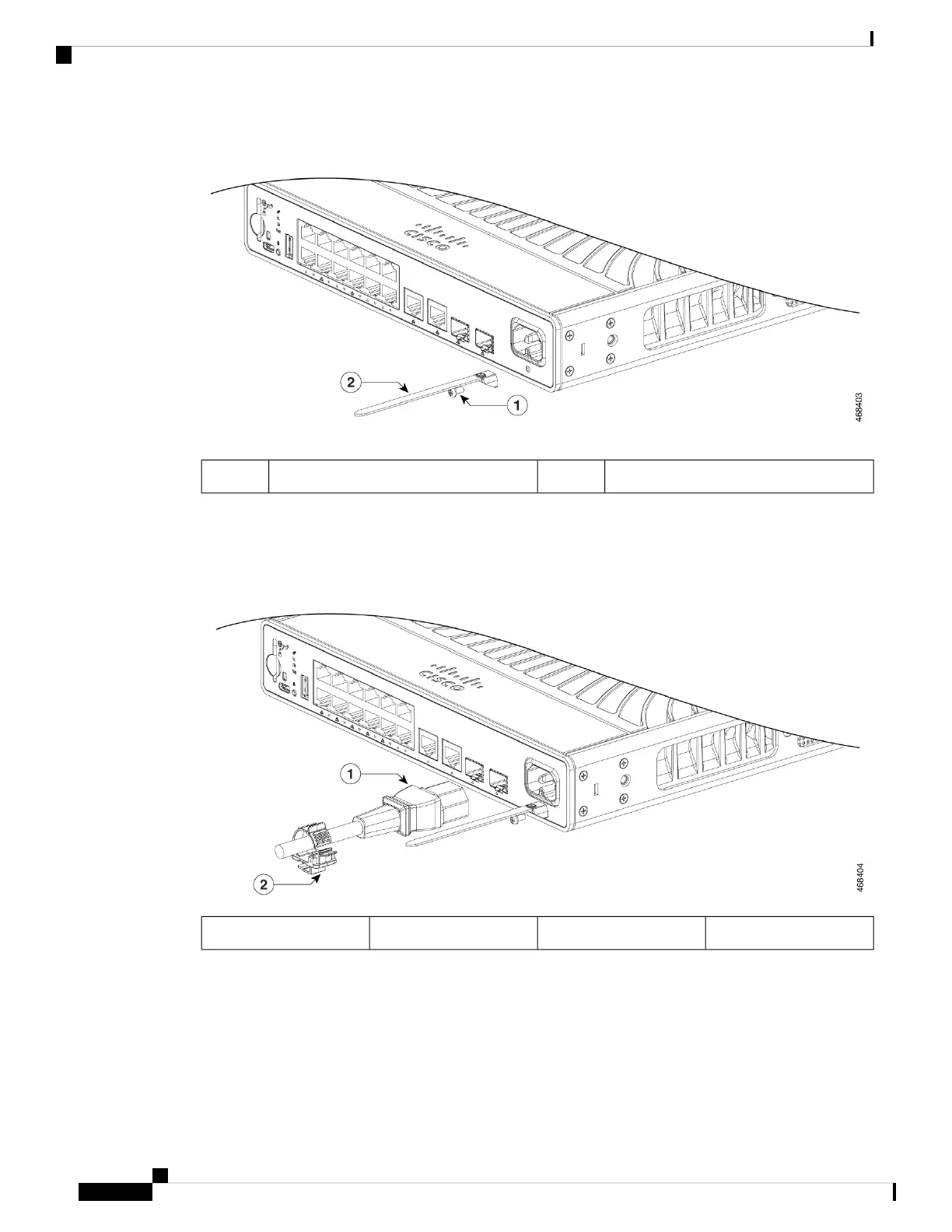

Figure 42: Attaching the Power Cord Retainer Strap
Power cord retainer strap2M3x6mm pan-head screw1
Step 2 Slide the retainer clamp around the AC power cord and position it closest to the connector on the adapter.
Depending on the width of the power cord, adjust the size of the retainer clamp, if required.
Note
Figure 43: Sliding the Retainer Clamp Through the Power Cord
Power cord retainer clamp2AC power cord connector1
Step 3 Insert the retainer strap through the latch at the bottom of the clamp and press the tabs on the retainer clamp
towards each other to secure the power cord.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
70
Installing a Compact Switch
Installing the Power Cord Retainer (Optional)
