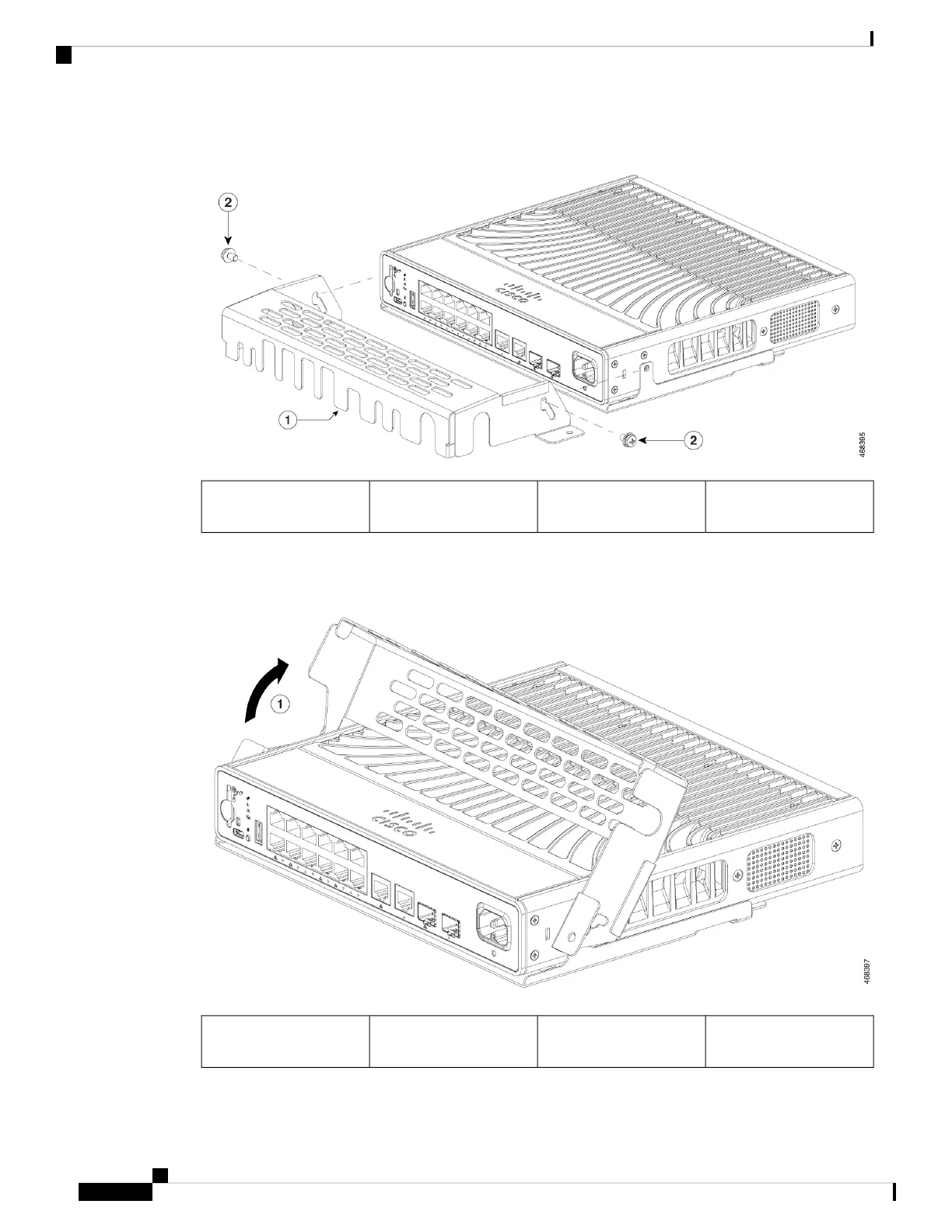

Figure 45: Attaching the Cable Guard to the Switch
Two 10-32 pan-head
screws
2Cable Guard1
Step 2 Pivot the cable guide upwards and install the cables.
Figure 46: Pivoting the Cable Guard Upwards
Pivot direction for cable
guard
2Cable guard1
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
72
Installing a Compact Switch
Installing the Cable Guard (Optional)
