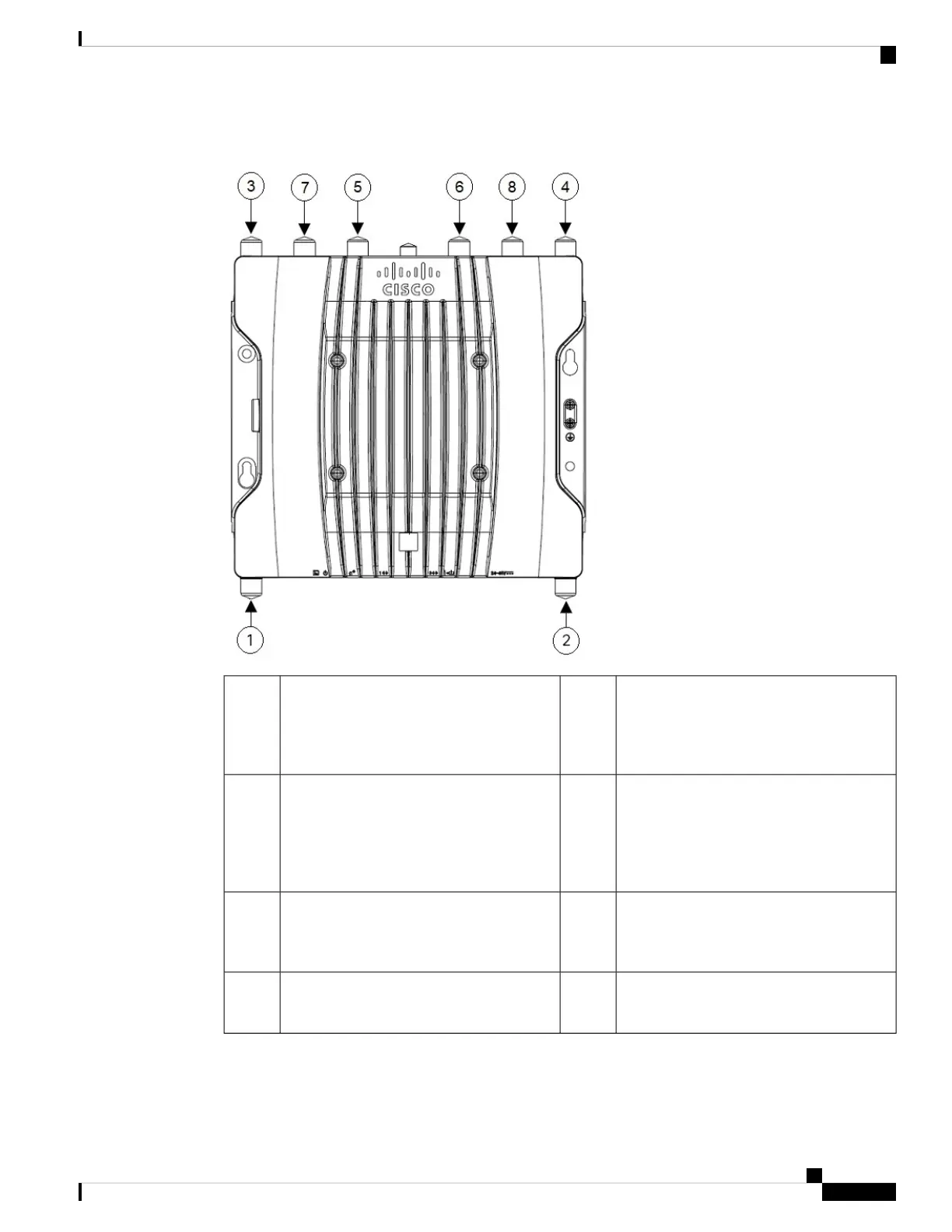

Figure 6: IW9167EH Access Point Antenna Ports
Port 2
Supports 2.4 GHz radio in 4x4, 2x2 mode.
Supports 5 GHz radio in 4x4 mode.
2Port 1
Supports 2.4 GHz radio in 4x4, 2x2, or 1x1
mode. Supports 5 GHz radio in 4x4 mode.
Supports SIA.
1
Port 4
Supports 2.4 GHz radio in 4x4 mode.
Supports 5 GHz radio in 4x4, 2x2, or 1x1
mode. Supports Bluetooth Low Energy
(BLE) radio. Supports SIA.
4Port 3
Supports 2.4 GHz radio in 4x4 mode.
Supports 5 GHz radio in 4x4,2x2 mode.
3
Port 6
Supports 5 GHz radio in 4x4,2x2 mode.
6Port 5
Supports 5 GHz radio in 4x4,2x2,1x1 mode.
Supports SIA.
5
Port 8
Supports 5 GHz radio in 4x4 mode.
8Port 7
Supports 5 GHz radio in 4x4 mode.
7
