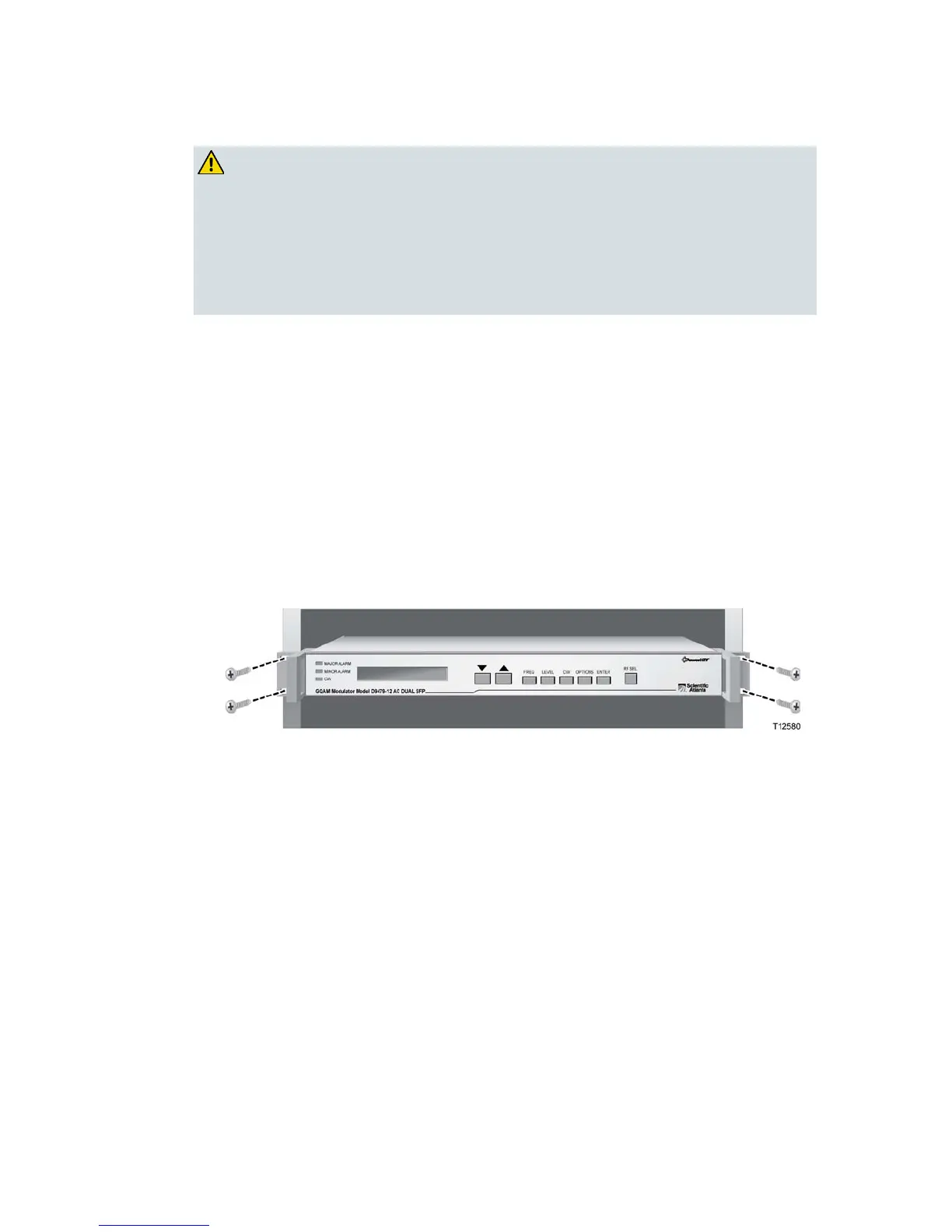

Installing the Modulator into a Rack
CAUTION:
Do not tangle or strain interconnecting cables.
Use caution when installing wiring and racks to avoid obstruction of airflow
into the side air vents of the GoQAM or out of the vent fans on the side of the
GoQAM.
IMPORTANT: You must use the supplied notched rack mounts to provide
additional support and to allow correct air circulation through the unit.
1 Install the rack mounts.
Important: The supplied rack mounts (Cisco part numbers 734845 and 734846)
must be used. When you use the supplied rack mounts, you can install these
modulators above or below each other in the rack with no space required. These
rack mounts provide additional support along with the following features:
Attaches directly to the rack
Allows you to slide modulators partially out of the rack for service
Allows appropriate air circulation throughout the unit
2 Place the modulator in the rack.
3 Insert a mounting screw through each of the four-bezel mounting holes on the
front panel of the GoQAM and then into the rack.
4 Firmly tighten each mounting screw.
5 Go to Connect Power Sources (on page 27).
