Understand the Set Up IF GoQAM GUI
This section provides descriptions of the fields in the Set Up IF GoQAM GUI.
Understanding Basic Parameters
The Basic Parameters fields allow you to identify the IF GoQAM, assign it to a
headend, and specify the QAM modulation type. If you want to view the Basic
Parameters fields while reading this section, follow these steps to examine the Set
Up IF GOQAM window.
1 From the DNCS Administrative Console, select one of the following tabs:
For SR 2.7/3.7/4.2 and later, click the Network Element Provisioning tab.
For SR 2.5/3.5/4.0 and earlier, click the Element Provisioning tab.
2 Click QAM. The QAM List window opens.

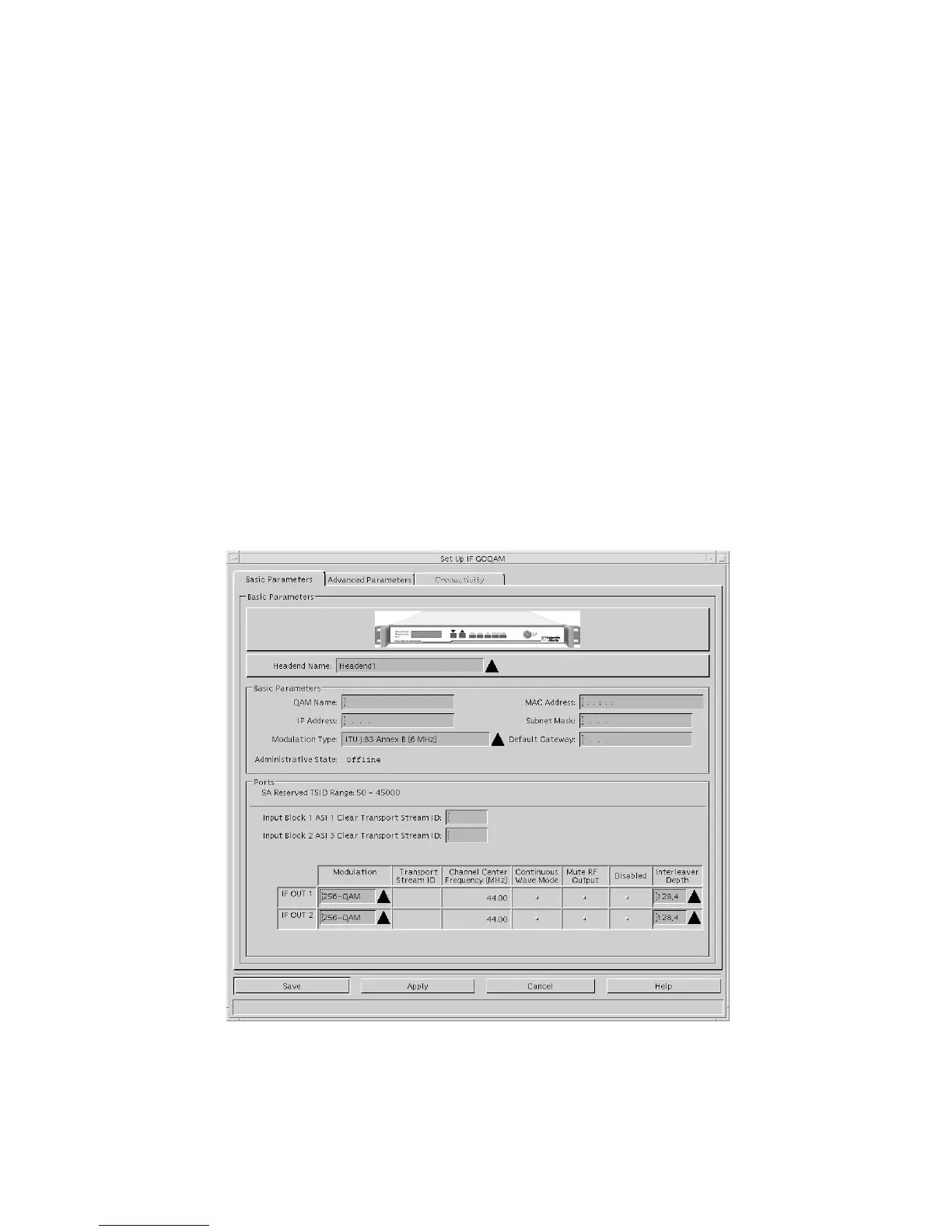

3 Select File > New >GOQAM > IF GOQAM. The Set Up IF GOQAM window
opens with the Basic Parameters tab to the forefront and displays the Basic
Parameters fields as shown in the following example.
