Cisco GoQAM User Manual

Chapter 1 Introducing the GoQAM
12 4004834 Rev D
Back Panel Overview

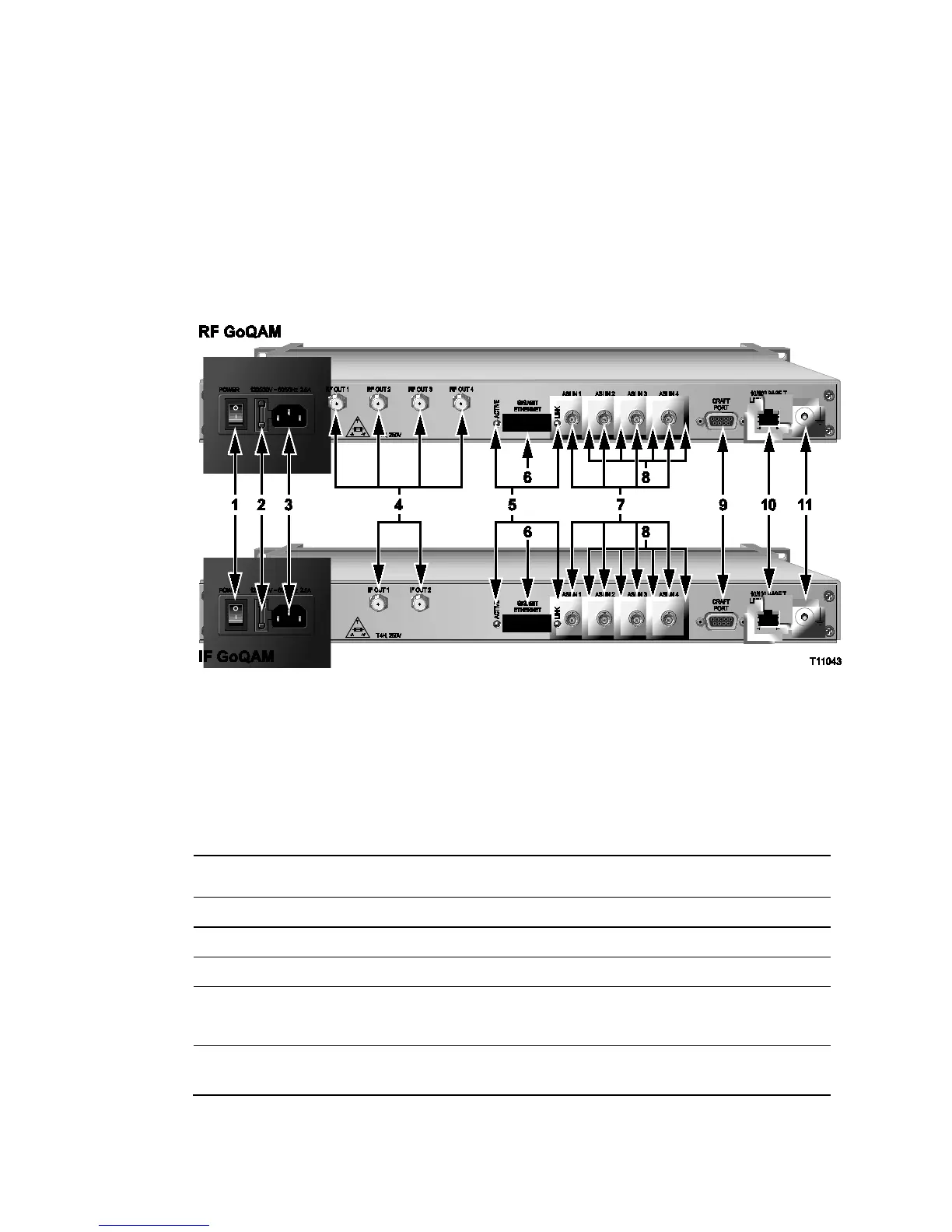

Back Panel Diagram
This illustration shows the back panel components for each type of GoQAM.
Back Panel Diagram
Back Panel Components
The following table describes the back panel components.
Back Panel Components
Important: The cooling fans for the GoQAM are mounted on the side panel.
Item Component Description
1 Power Switch On/off rocker-type power switch
2 Fuse Holder 4.0 A SLO BLO 250 V fuse (Cisco part number 188106)
3 AC Power Inlet IEC 320-conductor grounded outlet
4 RF OUT and
IF OUT Ports
F-connectors for RF or IF output, 75 Ω
Note: The RF GoQAM uses only RF OUT ports 1 and 3.
5 Gigabit Ethernet Port
LEDs
Not used (disabled) in the Overlay solution
