Read the Default Status Screen
The Default Status screen provides status information such as the channel frequency
setting, RF level settings, modulation type, and the number of active alarms. The
default status screen displays after one of the following occurs:
The reset process is complete.
You press ENTER to complete a command.

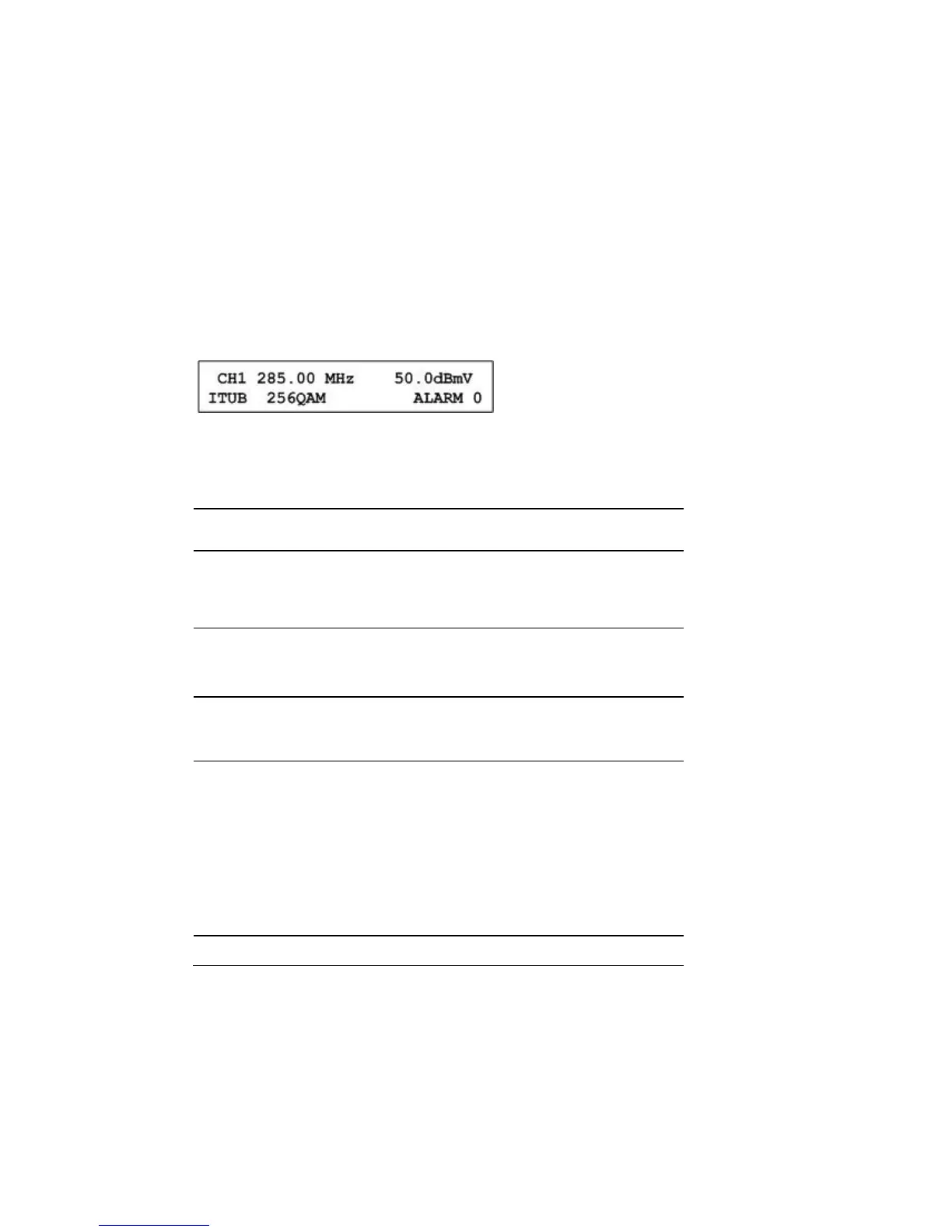

The following is an example of the Default Status screen.
Reading the Default Status Screen
The following table describes the information displayed on the default status screen.
Display Function
CH1 Current RF Channel output selected. The CH
number corresponds to the channel number
Note: The GoQAM uses only CH1 and CH2.
285.00 MHz Established RF frequency setting for the selected
RF modulator (91 MHz to
869 MHz)
50.0 dBmV Configured RF level setting (42 dBmV to 56
dBmV)
ITUB 64QAM Selected modulation type. Values are:
ITUB 64 QAM
ITUB 256 QAM
DAVIC 256 QAM
DAVIC 16 QAM
