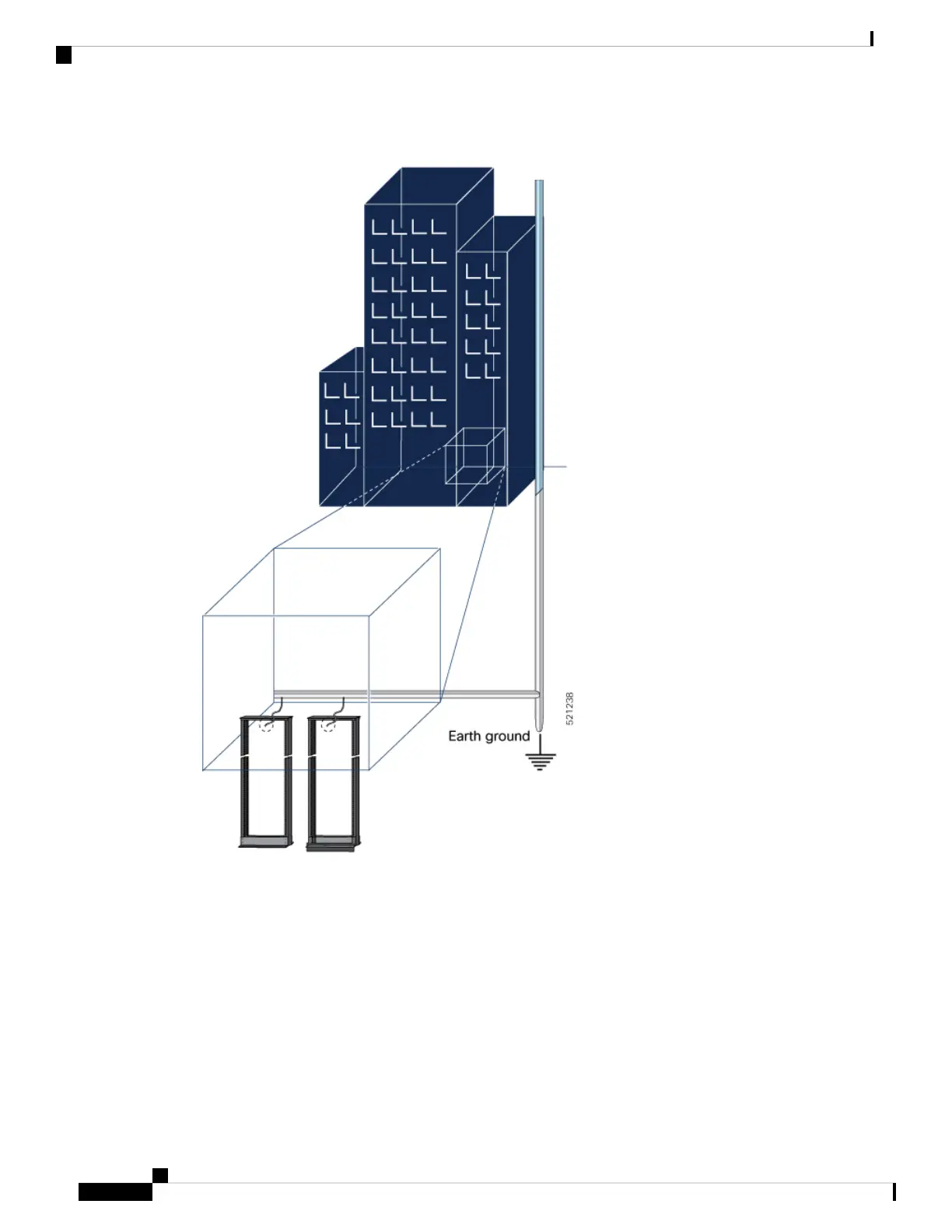

Figure 4: Building with Rack Room Connected to Earth Ground
Prepare Yourself
This section illustrates how to prepare yourself before removing the chassis from the sealed antistatic bag.
The figures show how to wear the ESD strap around the wrist and how to connect the other end of the strap
to the ground. ESD wrist straps are the primary means of controlling static charge on personnel.
Note: These images are for only representation purposes. The chassis' actual appearance and size would vary.
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
22
Prepare for Installation
Prepare Yourself
