Cisco N540-24Q8L2DD-SYS User Manual

Install the AC Power Supply Module
Follow these steps to install the AC power supply module:
1. Ensure that the system (earth) ground connection is made.
2. If necessary, remove the blank power supply filler plate from the chassis power supply bay opening by
loosening the captive installation screws.
3. Grasp the power supply handle with one hand. Place your other hand underneath the power supply. Slide
the power supply into the power supply bay. Make sure that the power supply is fully seated in the bay.
(See the following figure.)

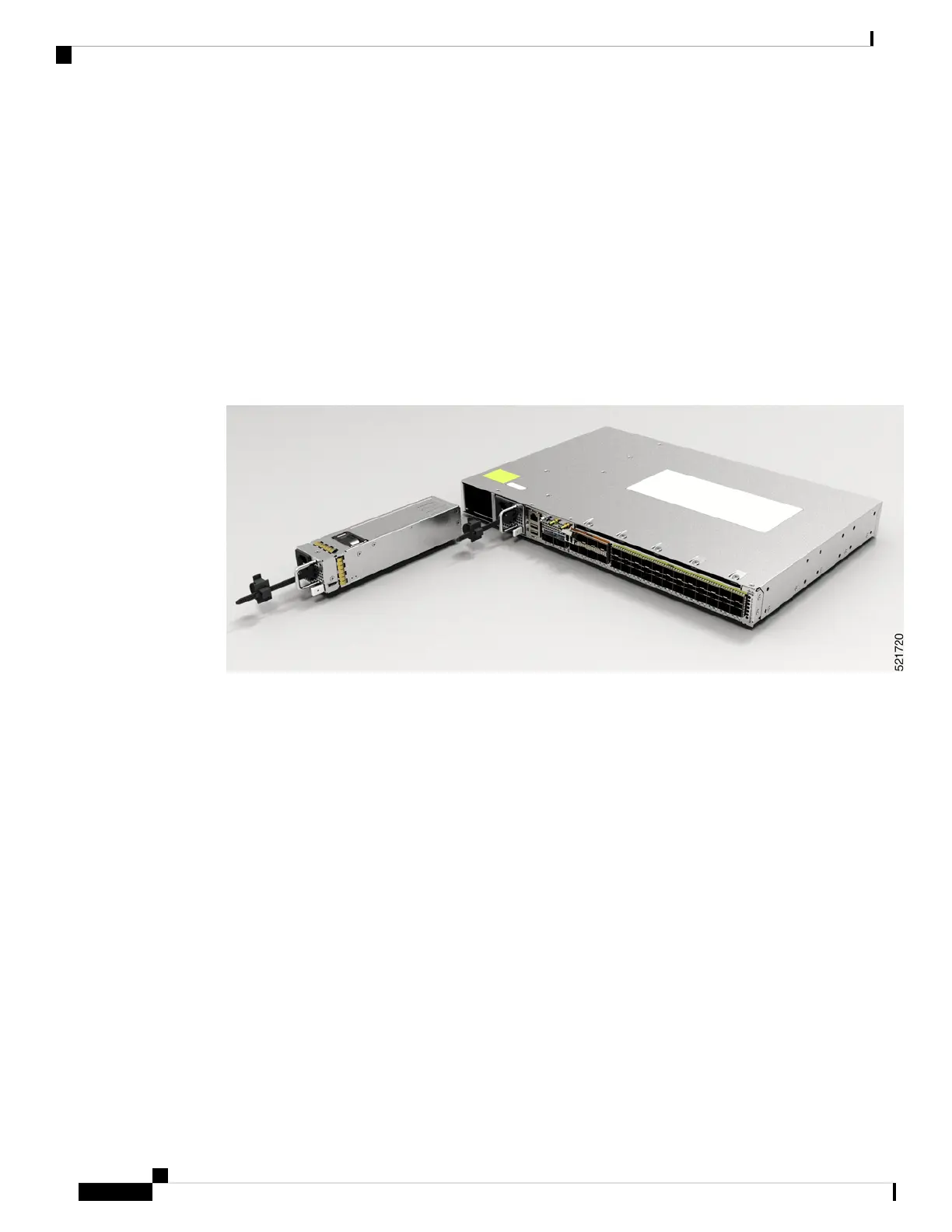

Figure 35: Install AC Power Supply Module for Cisco N540-24Q8L2DD-SYS
4. Slide the AC power supply cord inside the tie of the tie-and-holder and tighten the tie around the power
supply cord.
5. Plug the power supply cord into the AC power supply.
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
64
Replace Power Supply
Install the AC Power Supply Module
