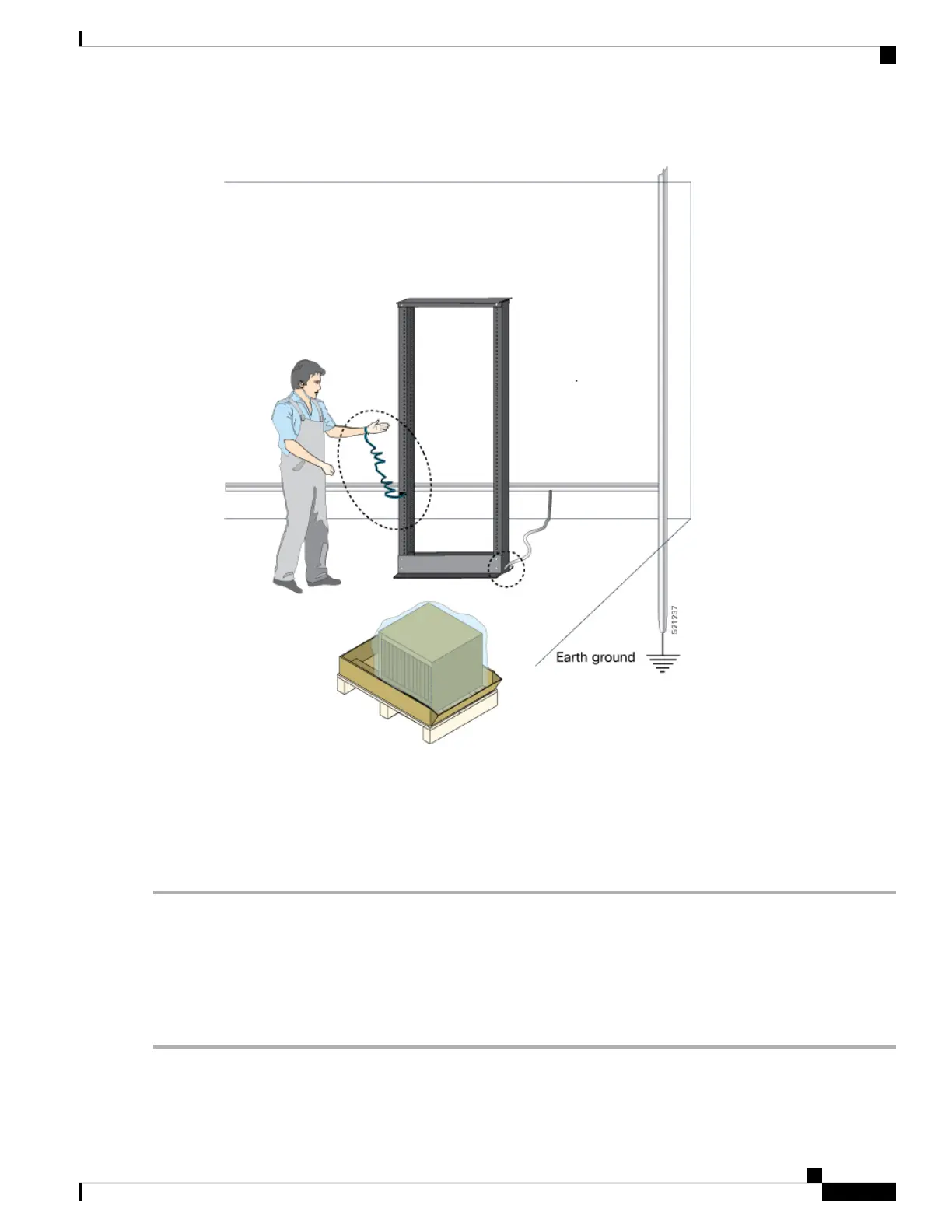

Figure 5: Wearing the ESD Strap
Prepare Rack for Router Installation
Install the chassis into a two-post standard rack with standard horizontal mounting rails. Before you mount
the chassis into the rack, we recommend that you do the following:
Step 1 Place the rack where you plan to install the chassis. Ensure that the rack is grounded to earth.
Step 2 Secure the rack to the floor.
To bolt the rack to the floor, a floor bolt kit (also called an anchor embedment kit) is required. For information on bolting
the rack to the floor, consult a company that specializes in floor mounting kits (such as Hilti; see Hilti.com for details).
Make sure that floor mounting bolts are accessible, especially if an annual retorquing of bolts is required.
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
23
Prepare for Installation
Prepare Rack for Router Installation
