Rack Types

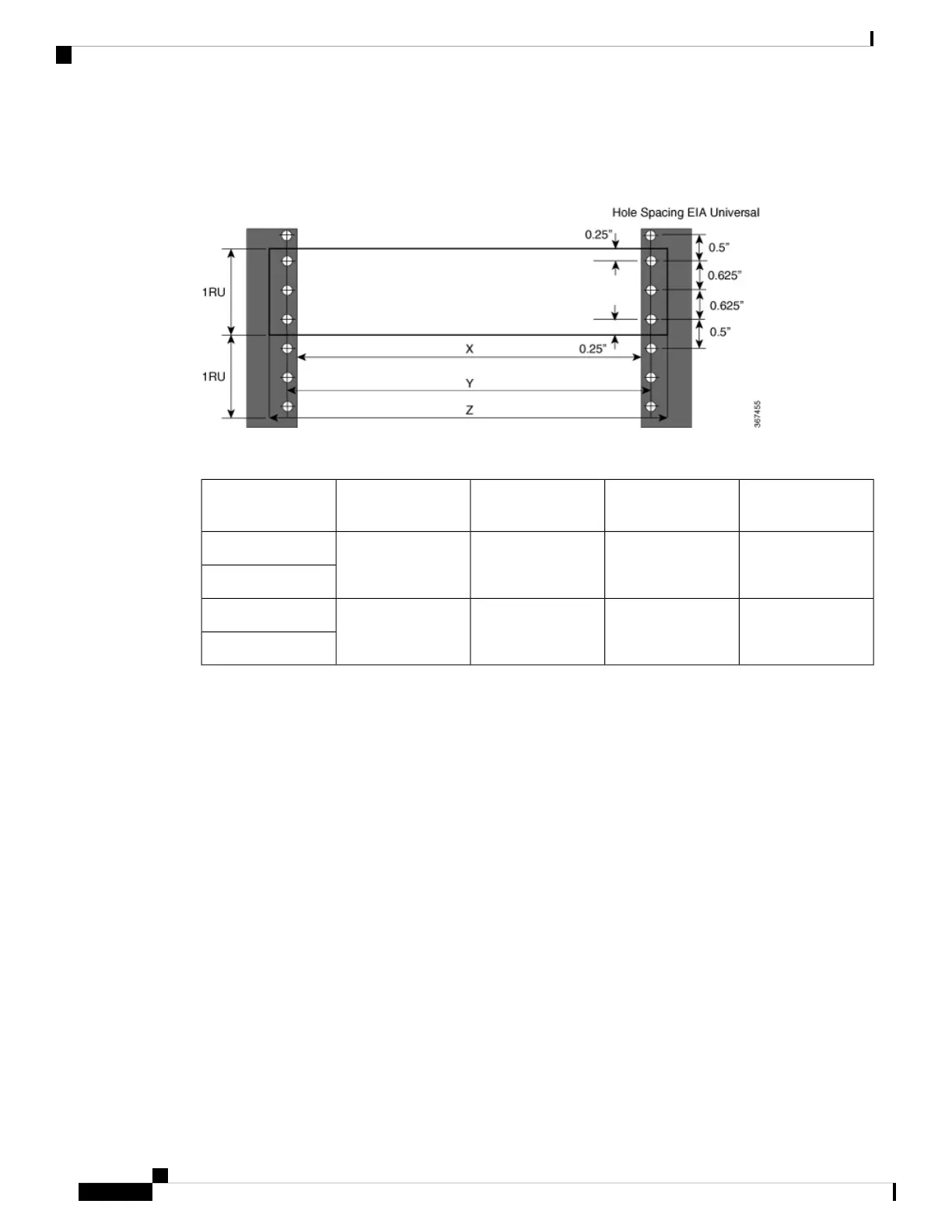

Figure 7: Rack specification EIA (19 inches and 23 inches)
Table 5: Rack specification EIA (19 inches and 23 inches)
Mounting Flange
Dimension (Z)
Rack Mounting Hole
Centre-Centre (Y)
Rack Front Opening
(X)
Rack TypePost Type
482.6mm (19”)465mm (18.312”)450.8mm (17.75”)19 inches (48.3
centimeters)
4 Post
2 Post
584.2mm (23”)566.7mm (22.312”)552.45mm (21.75”)23 inches (58.4
centimeters)
4 Post
2 Post
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
28
Install the Device
Rack Types
