Weight and Power Consumption
For information on physical specifications and power consumption, see the Cisco Network Convergence
System Large Density 540 Routers Data Sheet.
Environmental Specifictaions
For information on environmental specifications, see table Environmental properties for NCS 540 fixed
systems on the Cisco Network Convergence System 540 Large Density Routers Data Sheet.
Transceiver and Cable Specifications
To determine which transceivers and cables are supported by this router, see Cisco Transceiver Modules
Compatibility Information.
To see the transceiver specifications and installation information, see Cisco Transceiver Modules Install and
Upgrade Guides.
RJ-45 Connectors
The RJ-45 connector connects Category 3, Category 5, Category 5e, Category 6, or Category 6A foil twisted-pair
or unshielded twisted-pair cable from the external network to the following module interface connectors:
• Router chassis
• CONSOLE port
• MGMT ETH port
The following figure shows the RJ-45 connector.

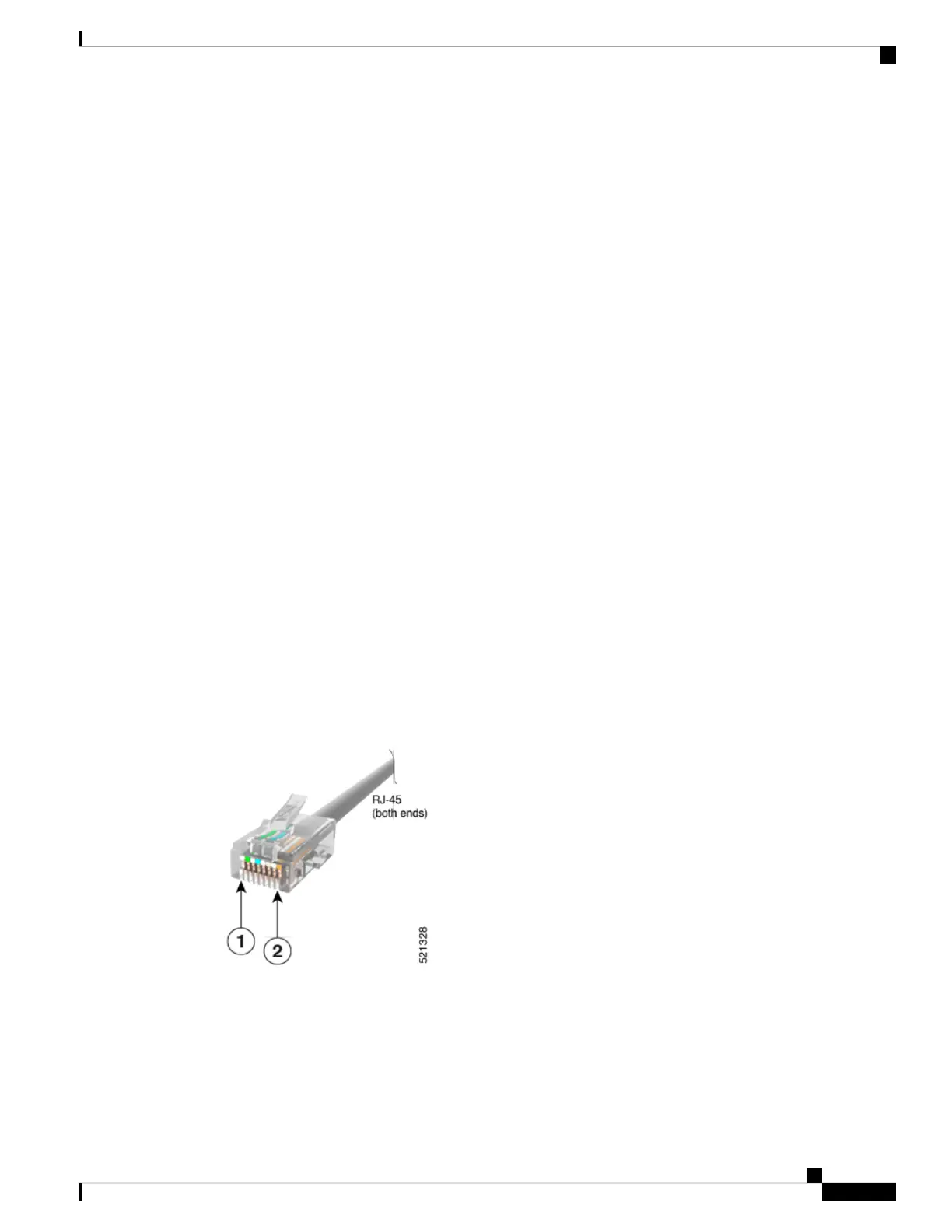

Figure 36: RJ-45 Connector
Console Port Pinouts
This following table summarizes the Console port pinouts:
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
69
