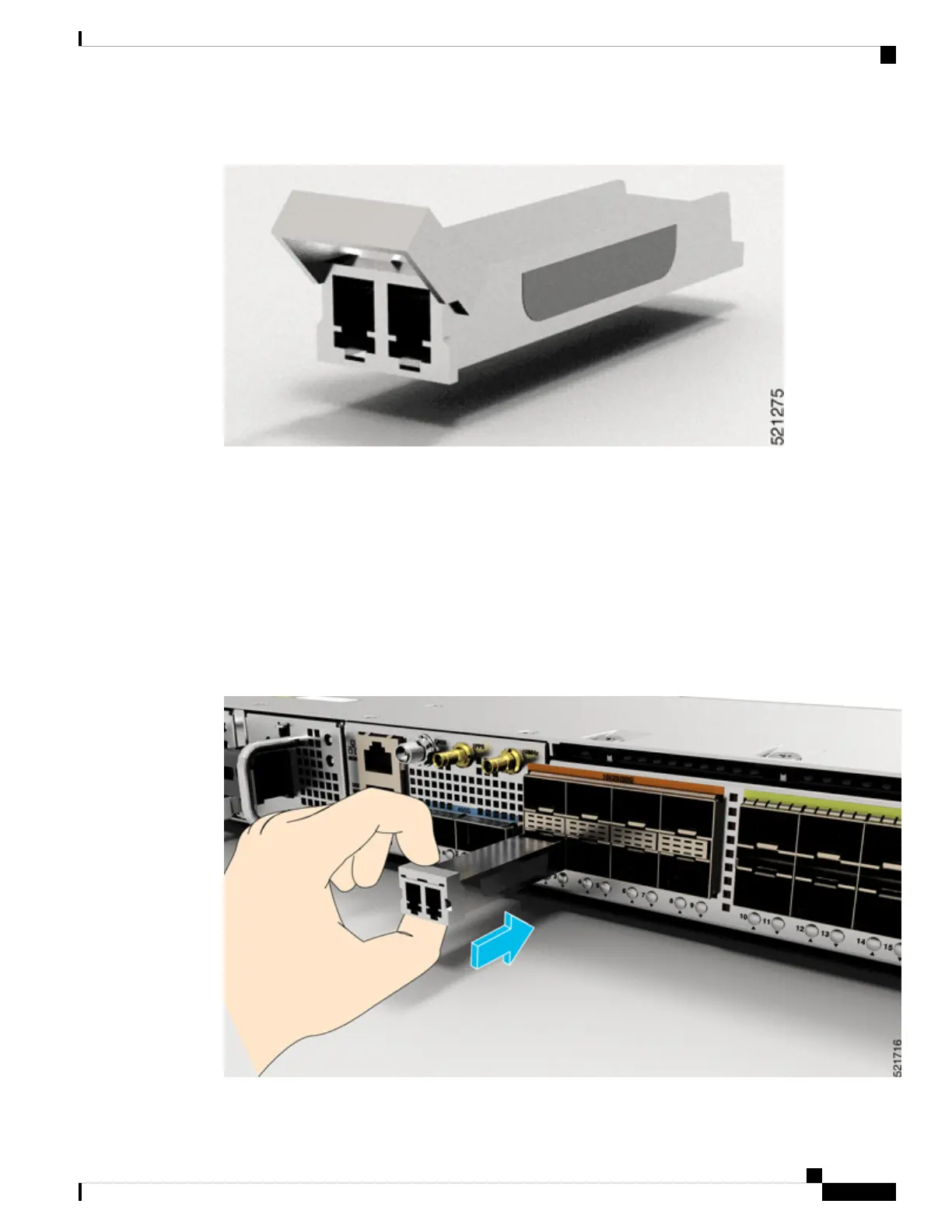

Figure 27: Bale Clasp SFP56, SFP28, SFP10, and SFP Module
Install a Bale SFP56, SFP28, SFP10, and SFP Module
To install this type of SFP56, SFP28, SFP10, and SFP module:
1. Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
2. Close the bale clasp before inserting the SFP56, SFP28, SFP10, and SFP module.
3. Line up the SFP56, SFP28, SFP10, and SFP module with the port and slide it into the port. (See the figure
below.)
Figure 28: Installing a Bale Clasp SFP56, SFP28, SFP10, and SFP Module into a Port
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
47
Install the Device
Install a Bale SFP56, SFP28, SFP10, and SFP Module
