c) Repeat Step 1a with the other front rack-mount bracket on the other side of the router.

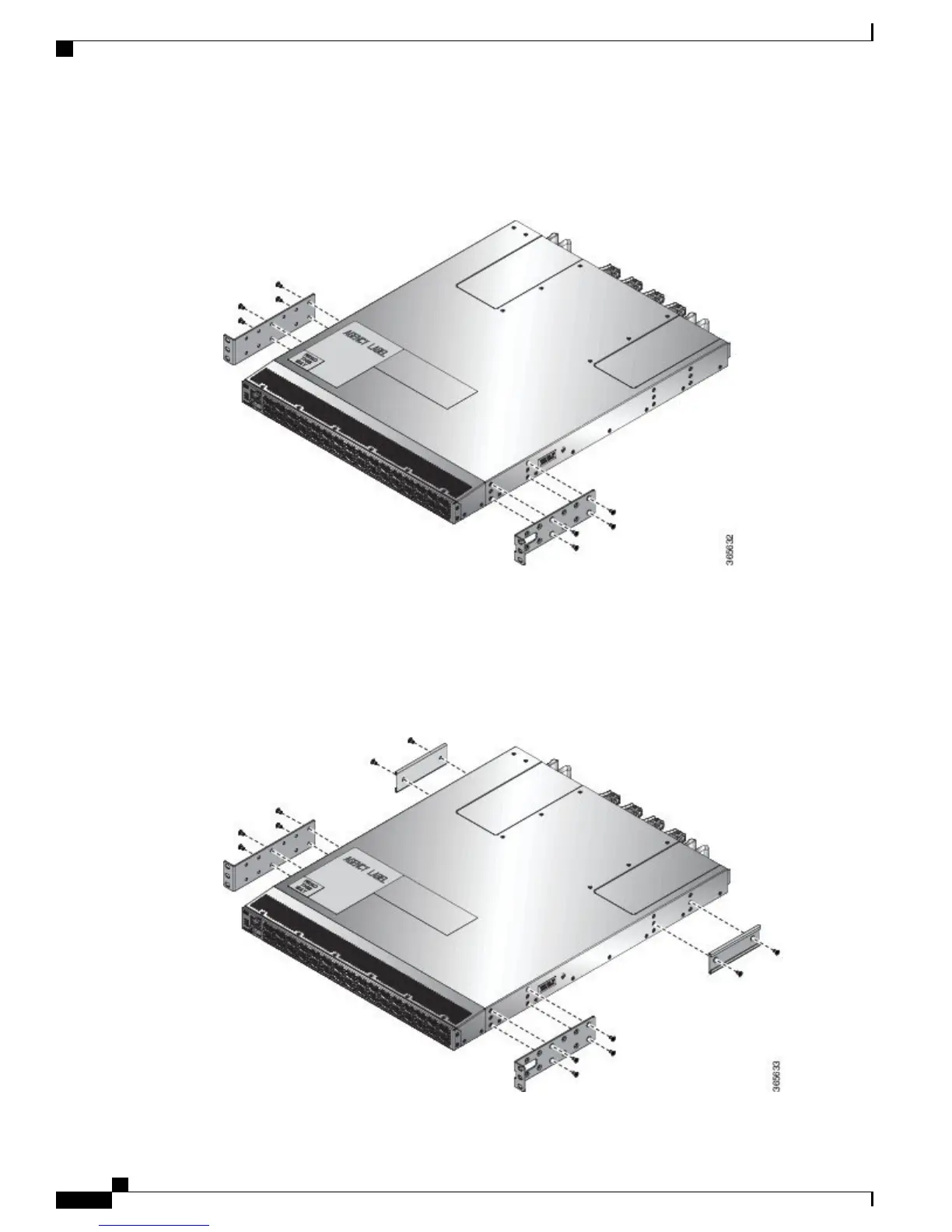

Figure 12: Rack-Mount Brackets on the Front Side on Cisco NCS 5011
Step 2
Install the rear rack-mount brackets on the rack as follows:
a) Align the two screw holes on a rear rack-mount bracket to the middle two screw holes in the remaining
six screw holes on a side of the chassis, and use two M4 screws to attach the bracket to the router.
b) Repeat Step 2a for the other side of the router.
Figure 13: Rack-mount brackets at the rear side on Cisco NCS 5011
Hardware Installation Guide for Cisco NCS 5000 Series Routers
26
Installing the NCS 5000 Router
Installing Cisco NCS 5011
