Cisco NCS 540 Hardware Installation Guide

Rack Types

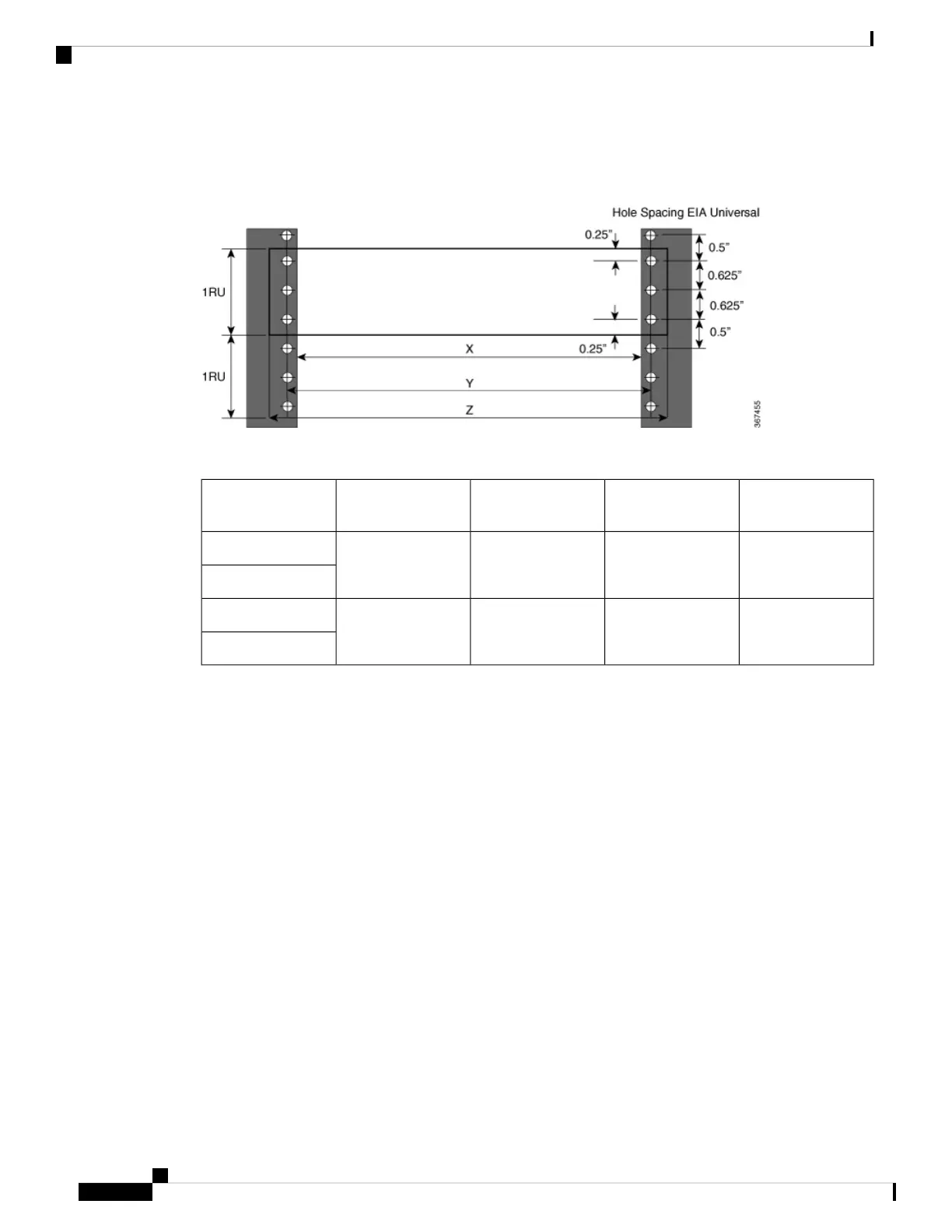

Figure 7: Rack specification EIA (19 inches and 23 inches)
Table 5: Rack specification EIA (19 inches and 23 inches)
Mounting Flange
Dimension (Z)
Rack Mounting Hole
Centre-Centre (Y)
Rack Front Opening
(X)
Rack TypePost Type
482.6mm (19”)465mm (18.312”)450.8mm (17.75”)19 inches (48.3
centimeters)
4 Post
2 Post
584.2mm (23”)566.7mm (22.312”)552.45mm (21.75”)23 inches (58.4
centimeters)
4 Post
2 Post
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
28
Install the Device
Rack Types

Cisco NCS 540 Specifications

General

Operating System	Cisco IOS XR
Memory	16 GB DDR4
Storage	128 GB SSD
Ports	Multiple 1G/10G/40G/100G Ethernet ports
Forwarding Capacity	800 Gbps
Redundancy	Redundant power supplies and fans
Form Factor	1 RU
Operating Relative Humidity	5% to 95% noncondensing
Input Voltage	100-240 VAC, 50-60 Hz
Power Supply	AC or DC
Processor	Quad-core 2.4 GHz
