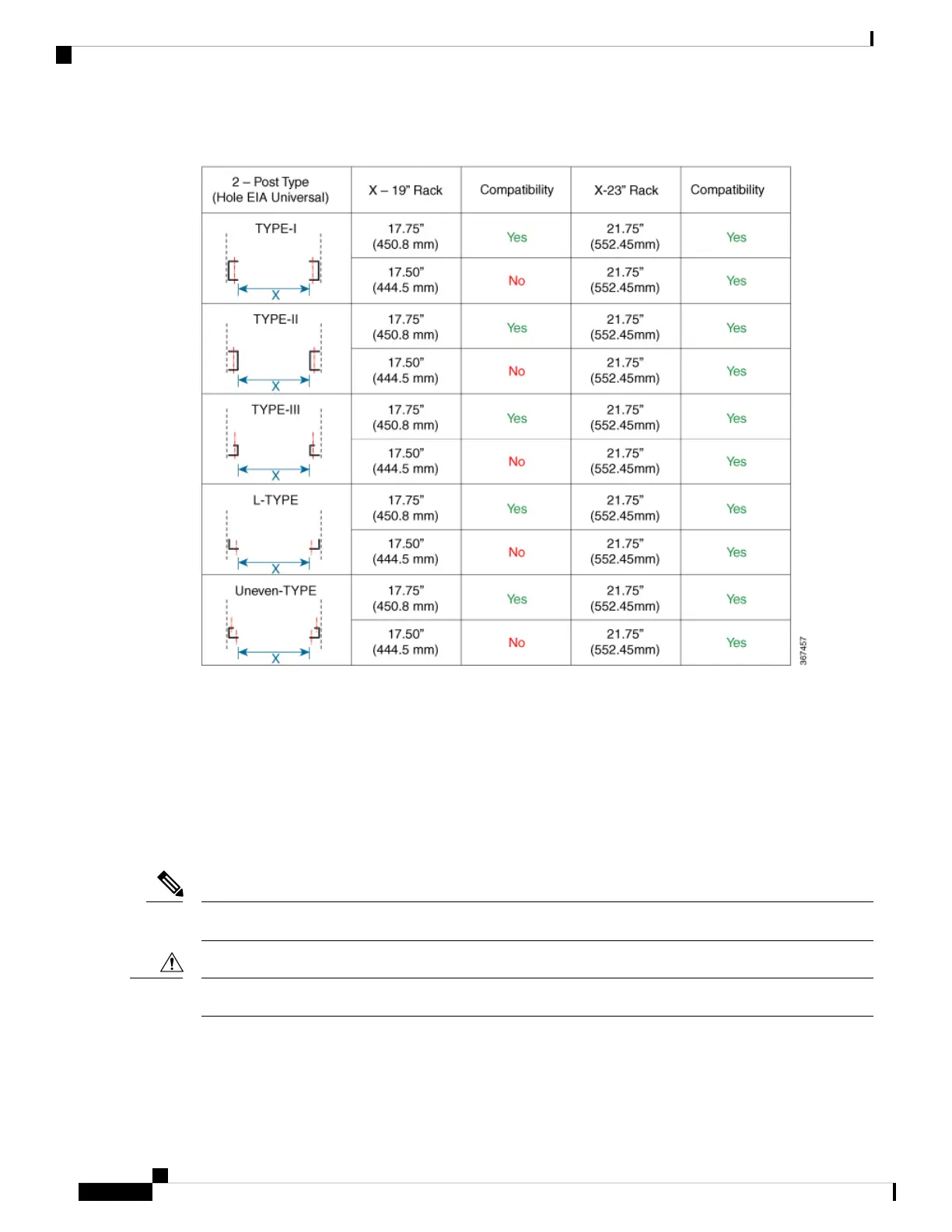

Figure 9: Two Post Rack Type
Set up Device on Rack
You can set up the Cisco N540-24Q8L2DD-SYS on a rack.
Rack Mount
The device is shipped with rack mounting brackets that are to be secured on the sides of the device.
For rack mounting brackets details, refer to Table 5.
Note
If the rack is on wheels, ensure that the brakes are engaged or the rack is otherwise stabilized.
Caution
Cisco Network Convergence System 540 Large Density Routers Hardware Installation Guide
30
Install the Device
Set up Device on Rack
