Cisco NCS 540 Installation Guide

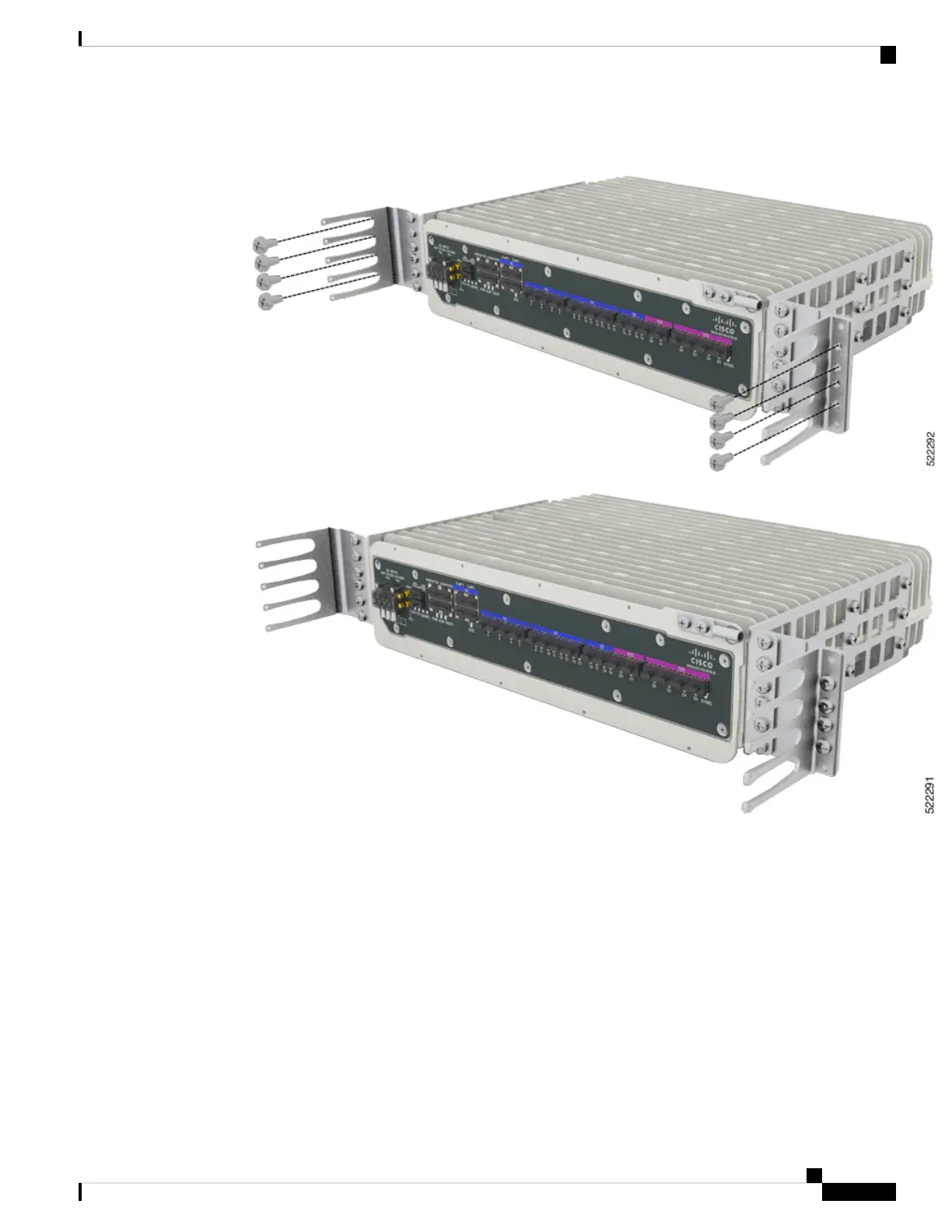

Figure 10: Cable Guide Installation For 23-inch Rack Brackets
2. Secure the cable guides along with rack mount brackets and fix it with the screws as shown above. M4
screws supplied with the cable guide are not indented to use for this unit.
Connect the Chassis Ground and Power
Before you connect the power or turn on power to the router, you must provide an adequate chassis ground
(earth) connection to your router.
Ground the Router
The router provides a grounding point on either side of the unit for a two-hole lug.
Cisco Network Convergence System 540 Passive Cooled Small Density Routers Hardware Installation Guide
27
Install the Cisco N540-6Z14S-SYS-D Routers
Connect the Chassis Ground and Power
