Cisco NCS 540 Installation Guide

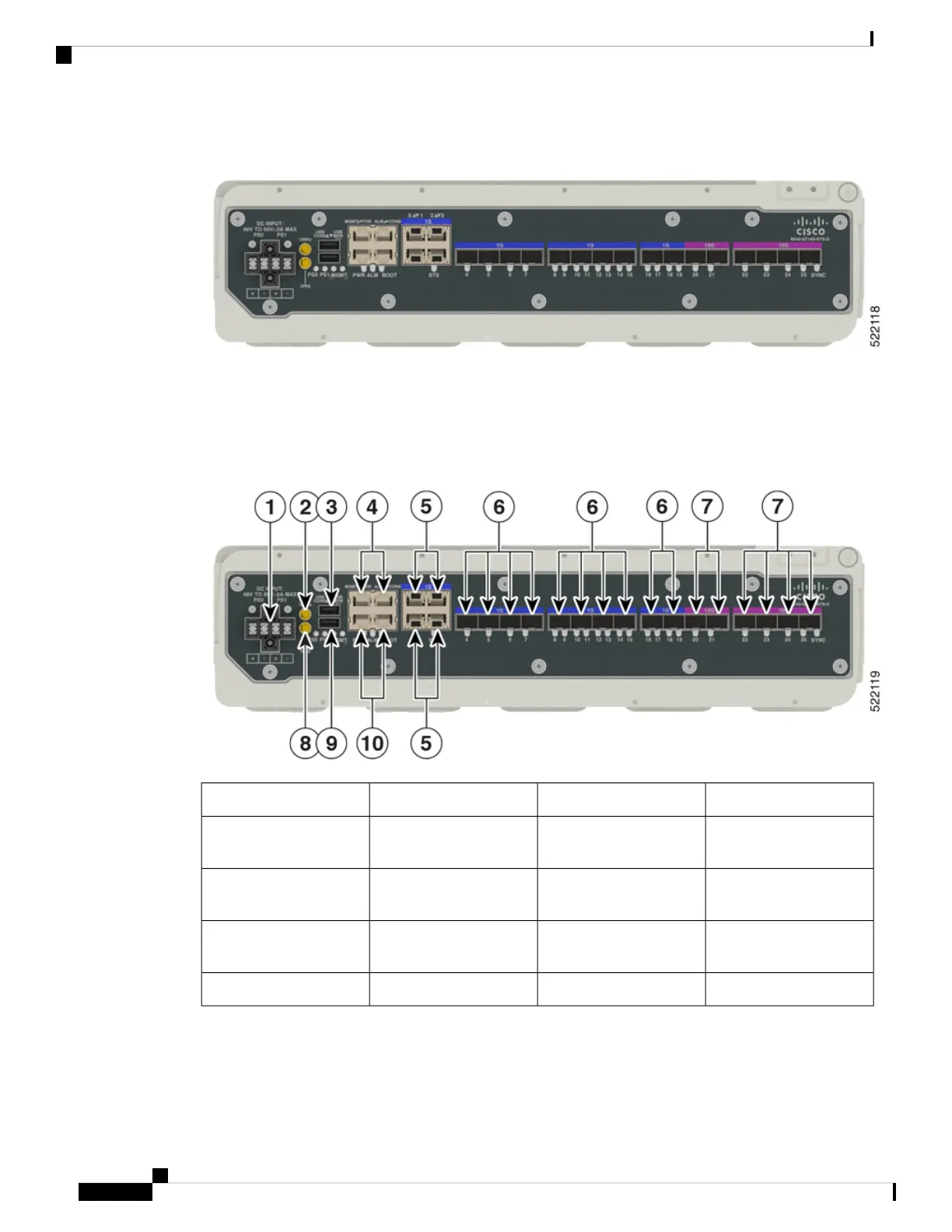

Figure 1: Cisco N540-6Z14S-SYS-D
Cisco NCS 540 Small Density Passive Cooled Router Features
Figure 2: Cisco N540-6Z14S-SYS-D Ports
10 MHz Input or Output2DC Power Input1
Management and Alarm
Ports
4USB Console3
1G ports (Ports 4-19)64 X 1G Copper Ports
(Ports 0-3)
5
1 PPS86 X 10G SFP ports (Ports
20-25)
7
ToD and Console Ports10USB Memory9
Cisco Network Convergence System 540 Passive Cooled Small Density Routers Hardware Installation Guide
2
Cisco NCS 540 Small Density Passive Cooled Routers Overview
Cisco NCS 540 Small Density Passive Cooled Router Features

Cisco NCS 540 Specifications

General

Operating System	Cisco IOS XR
Memory	16 GB DDR4
Storage	128 GB SSD
Ports	Multiple 1G/10G/40G/100G Ethernet ports
Forwarding Capacity	800 Gbps
Redundancy	Redundant power supplies and fans
Form Factor	1 RU
Operating Relative Humidity	5% to 95% noncondensing
Input Voltage	100-240 VAC, 50-60 Hz
Power Supply	AC or DC
Processor	Quad-core 2.4 GHz
