Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 4 Installing a Cisco Nexus 7010 Chassis
Installing Storage Media in a Supervisor Module

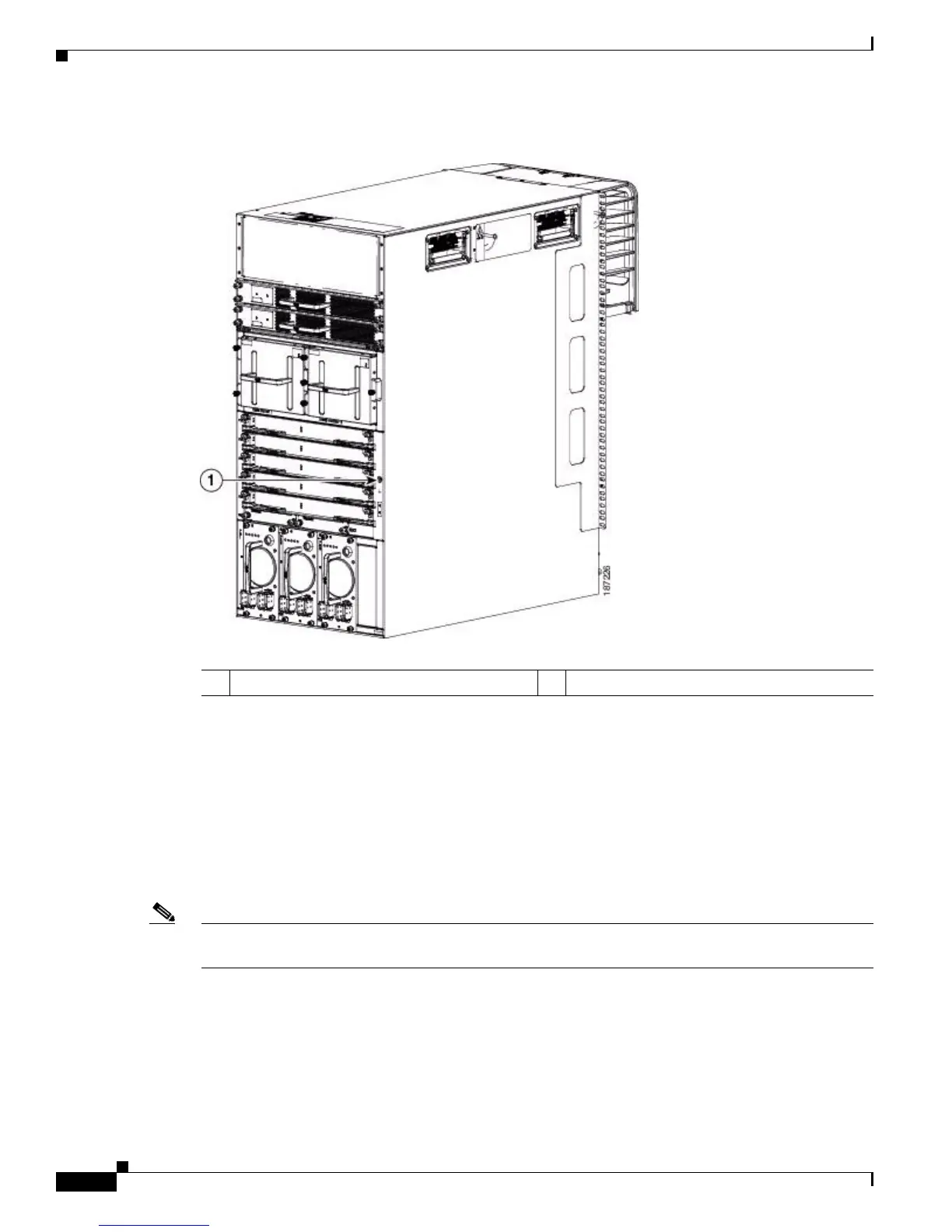

Figure 4-9 ESD Grounding Port on the Rear of the Cisco Nexus 7010 Chassis
Installing Storage Media in a Supervisor Module
Each supervisor module on a Cisco Nexus 7000 Series switch is shipped with a CompactFlash card
installed in the LOG FLASH reader (Supervisor 1 modules) or a USB drive installed in the LOG FLASH
reader (Supervisor 2 and Supervisor 2E modules). The EXPANSION FLASH reader (Supervisor 1) or
Slot0 port (Supervisor 2 and 2E) is left empty, but you can optionally install a card in that reader or a
USB drive in the USB port. To allow this storage media to function with the reader or port, you must
make sure that it is either formatted for the reader before installing it or format it after installing it.
Note The LOG FLASH and EXPANSION FLASH or Slot0 readers require different formats for their storage
media.
To replace an installed CompactFlash card, see the “Replacing Storage Media for a Supervisor Module”
section on page 10-59.
1 ESD grounding port

Cisco Nexus 7000 Specifications

General

Chassis Type	Modular
Product Type	Switch
Power Supply	AC or DC
Cooling	Redundant, hot-swappable fan trays
Management	CLI, SNMP
Form Factor	Modular chassis
Interfaces/Ports	Varies by module
Product Series	Nexus 7000
Port Density	Varies by module
Redundancy	Power supply, fan, supervisor engine
Management Interfaces	Console, Ethernet
Security Features	ACLs, port security
Virtualization Support	VRF
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% non-condensing
