5-12
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 5 Installing a Cisco Nexus 7018 Chassis
Installing the Chassis
Tip To adjust the placement of the chassis so that the screw holes in the chassis mounting brackets align with
the screw holes in the vertical mounting rails, use the chassis handles shown in Figure 5-4.
Step 8 Use a Phillips torque screwdriver to screw in nine M6 x 19-mm or 12-24 x 3/4-inch screws in each of
the two chassis mounting brackets (use a total of 18 screws for two mounting brackets) as shown in
Figure 5-4. Tighten each screw to a maximum of 40 in-lb [4.5 N·m] of torque.

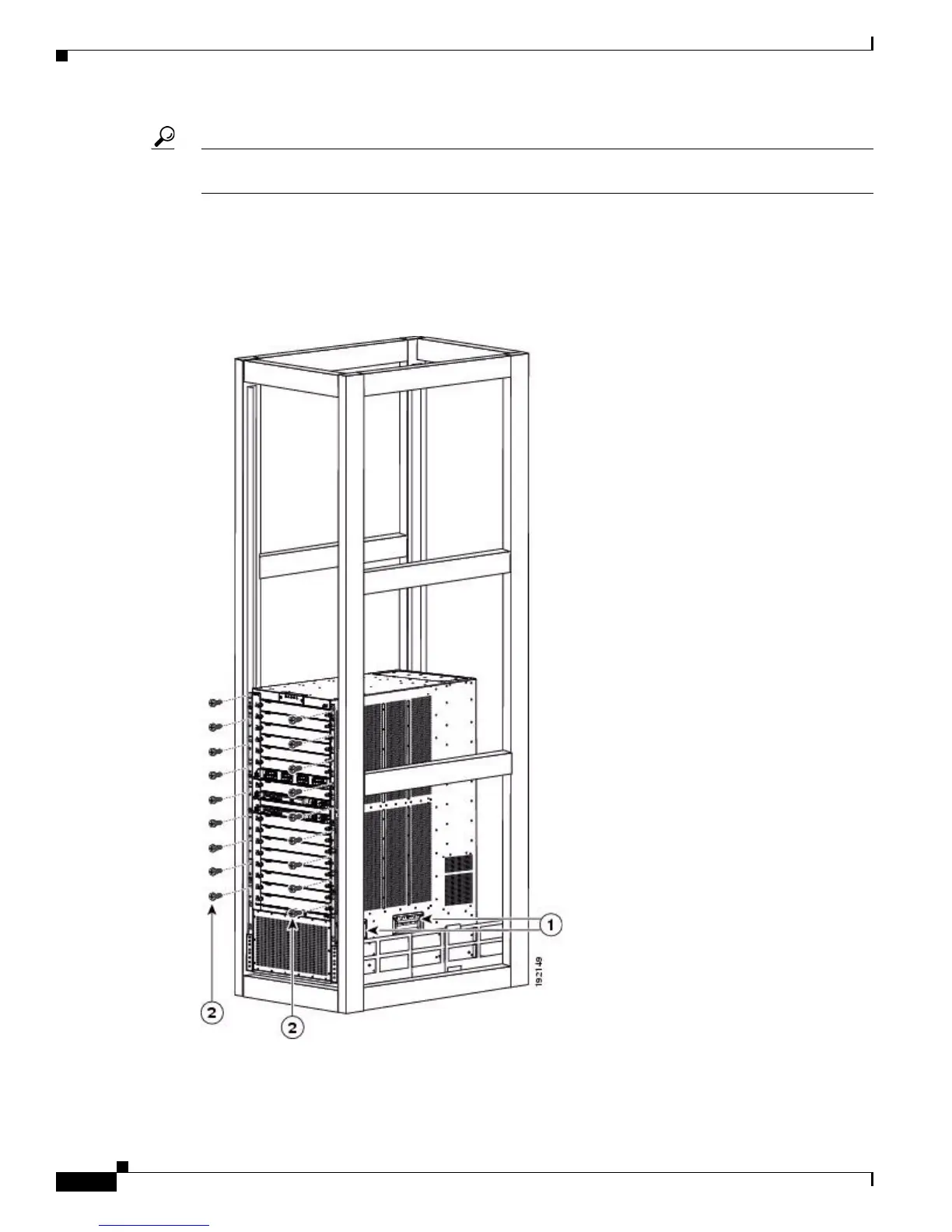

Figure 5-4 Attaching the Cisco Nexus 7018 Chassis to the Rack
