6-24
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 6 Installing Power Supplies
Connecting a DC Power Supply to DC Power Sources

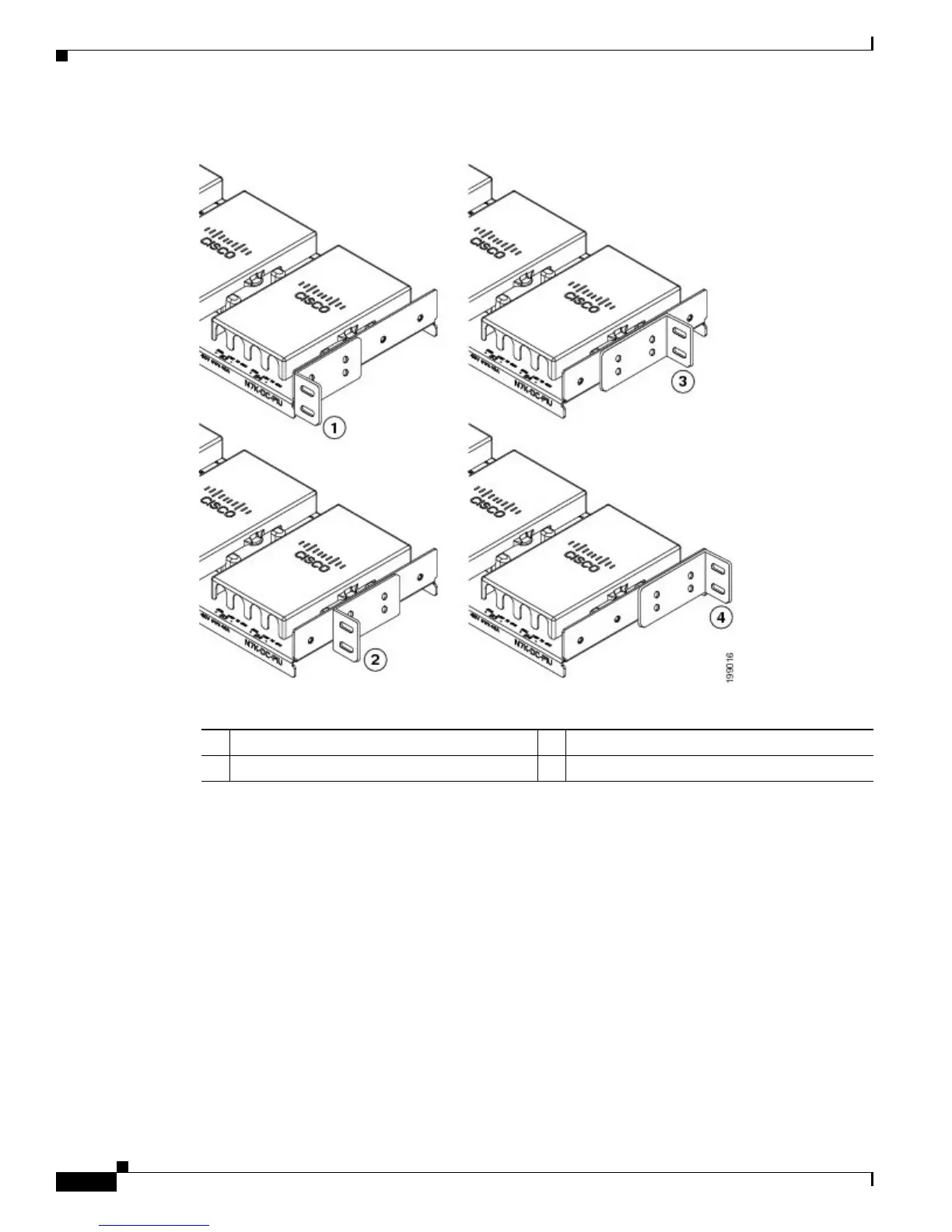

Figure 6-12 Positioning the PIU Mounting Brackets
Step 2
Position the PIU on a rack so that you can connect it to the power supply with the power cables that you
are using (user supplied for the 3-kW DC power supply or a 15-foot [4.6 m] cable shipped with the 6-kW
DC power supply). Make sure that the PIU is level and its mounting holes align to holes in the mounting
rails on the rack.
Step 3 Fasten the PIU to the rack using four M6 x 19 mm screws or four 12-24 x 3/4 inch screws, as shown in
Figure 6-13. Tighten each screw to 40 in-lb (4.5 N·m).
1 Positioned at the front of the PIU 3 Positioned offset from the rear of the PIU
2 Positioned offset from the front of the PIU 4 Positioned at the rear of the PIU
