Chapter 10 Installing or Replacing Components
Replacing a Supervisor Module
Caution To prevent ESD damage, avoid touching the electronic circuitry and prevent anything else from coming
in contact with the circuitry.
Step 9 If you are removing the module from a Cisco Nexus 7010 chassis, rotate the module 90 degrees
counterclockwise so that it is horizontal and you can see its circuitry from above.
Step 10 Place the removed module in an antistatic bag.
Step 11 Repack the bagged I/O module in its original packing materials as shown in Figure 10-6.

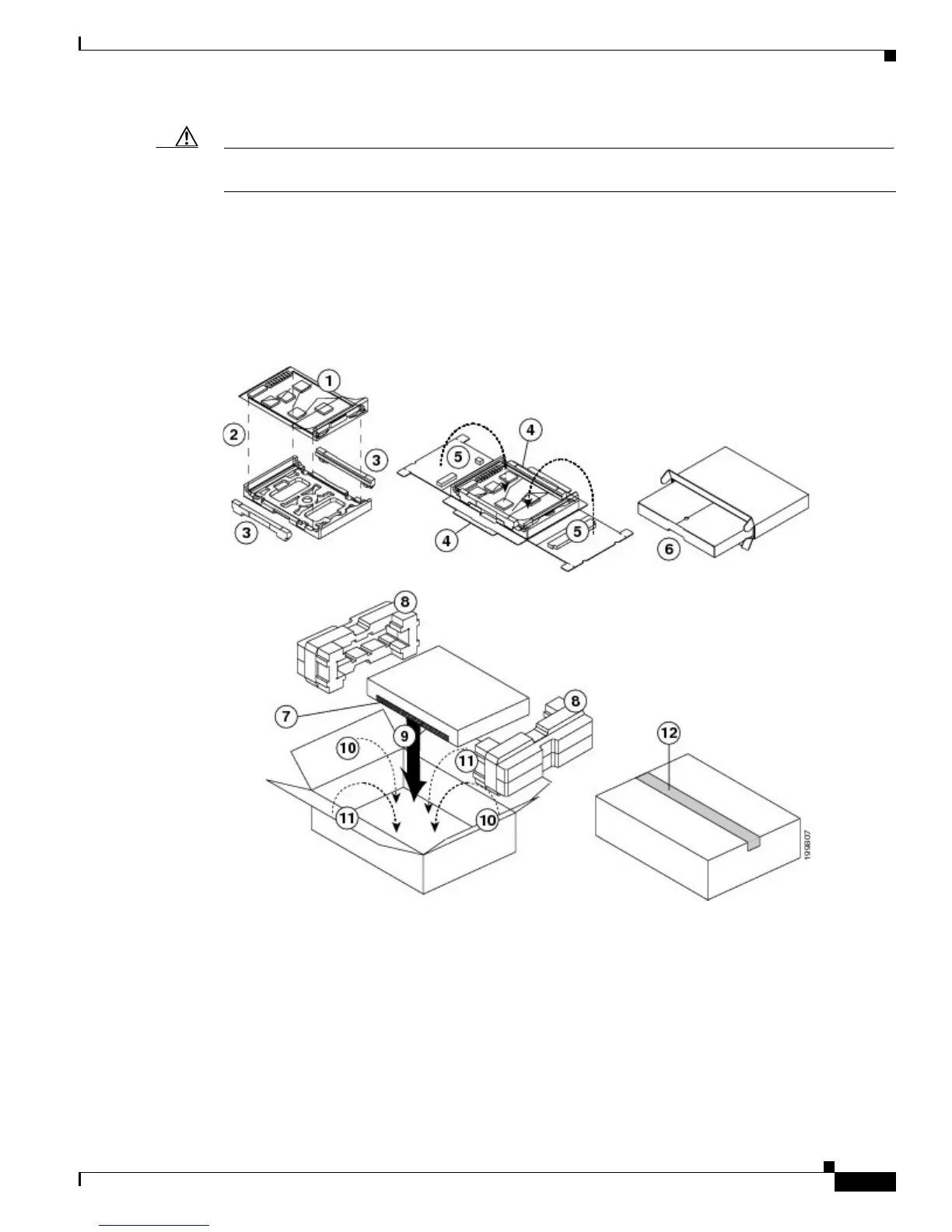

Figure 10-6 Repacking a Supervisor Module
