Chapter 10 Installing or Replacing Components
Installing an I/O Module
Note To prevent contaminants from entering the fiber-optic lines or transceivers, cover the fiber-optic
openings with a plug.
Warning
Invisible laser radiation may be omitted from disconnected fibers or connectors. Do not stare into
beams or view directly with optical instruments.
Statement 1051
Step 4 Loosen the two captive screws identified in View A of Figure 10-11.

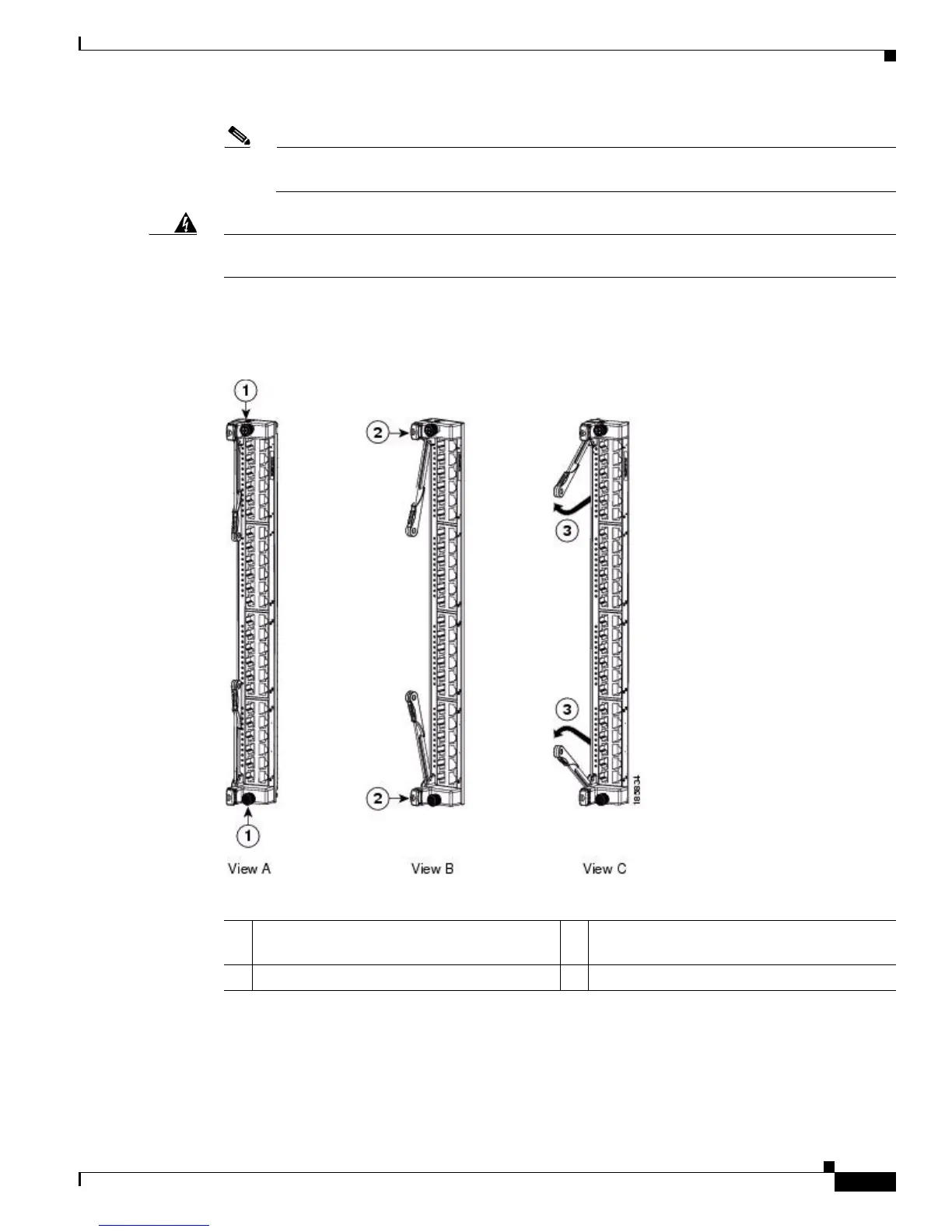

Figure 10-11 Unseating an I/O Module
Step 5
Press ejector release buttons on the top and bottom ends of the module (see View B in Figure 10-11) to
push out the ejector levers and to disconnect the module.
Step 6 Simultaneously rotate the two ejector levers outward to unseat the module from the midplane connector
(see View C in Figure 10-11).
1 Unscrew two captive screws. 3 Simultaneously swing open both ejector
levers to unseat the module.
2 Simultaneously press both ejector buttons.
