Chapter 10 Installing or Replacing Components
Replacing the Front Doors and Frame Assembly on the Cisco Nexus 7010 Chassis

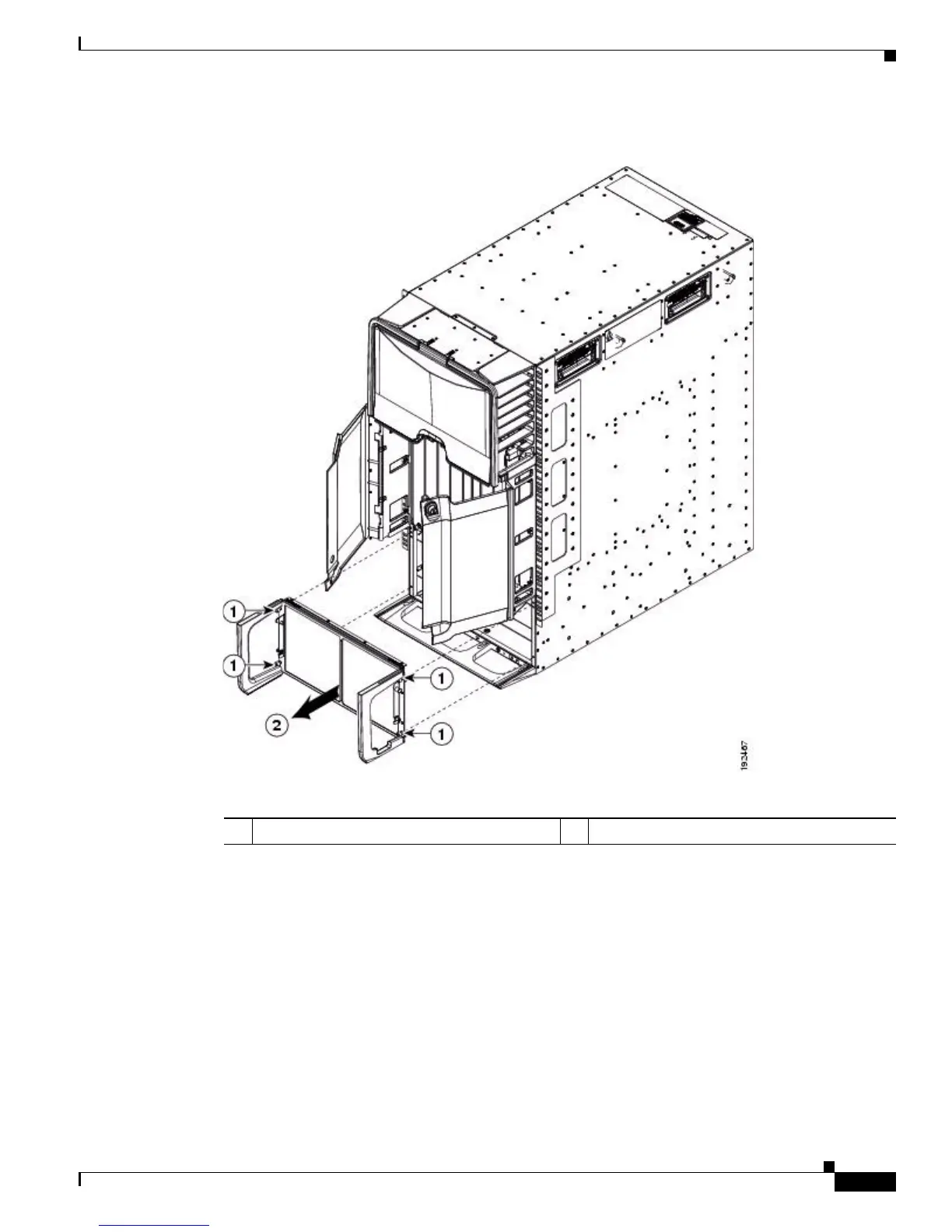

Figure 10-18 Removing the EMI Panel from the Chassis
c.
From the back of the EMI panel, unscrew each of the four screws that attach the two side frame
pieces to the EMI panel, and remove the side frame pieces (see Figure 10-19).
1 Unscrew four captive screws from the chassis. 2 Remove the EMI panel from the chassis.
