Chapter 10 Installing or Replacing Components
Replacing the Cable Management Frame on the Cisco Nexus 7018 Chassis

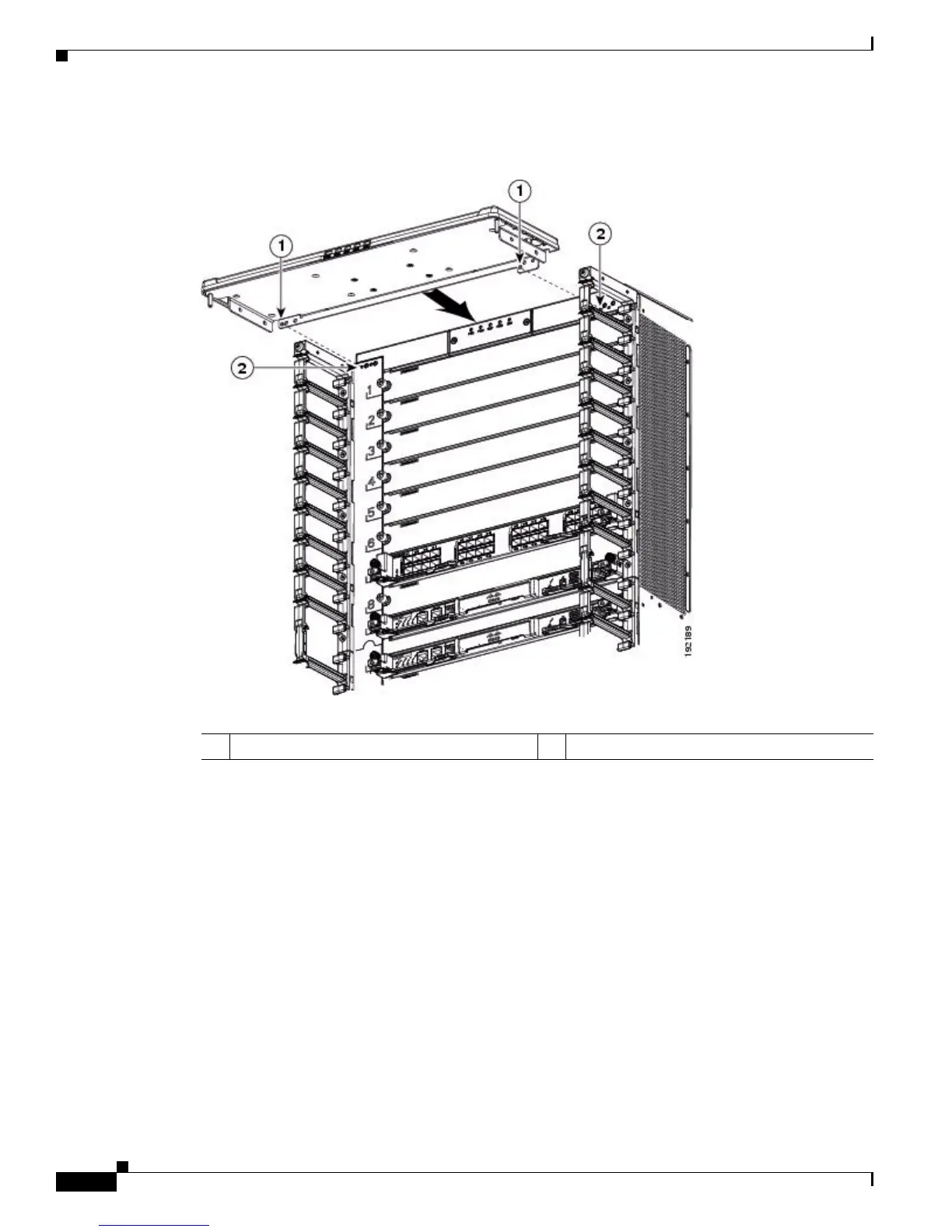

Figure 10-33 Positioning the Top Cover with the Upper Cable Management Assemblies and the
Switch Chassis
Step 7
Use four M4x8 pan-head screws to loosely fasten the top cover to the chassis (see Callout 1 in
Figure 10-34).
1 Alignment pins 2 Alignment holes
