Chapter 10 Installing or Replacing Components
Replacing the Front Door and Air Intake Assemblies on the Cisco Nexus 7018 Chassis

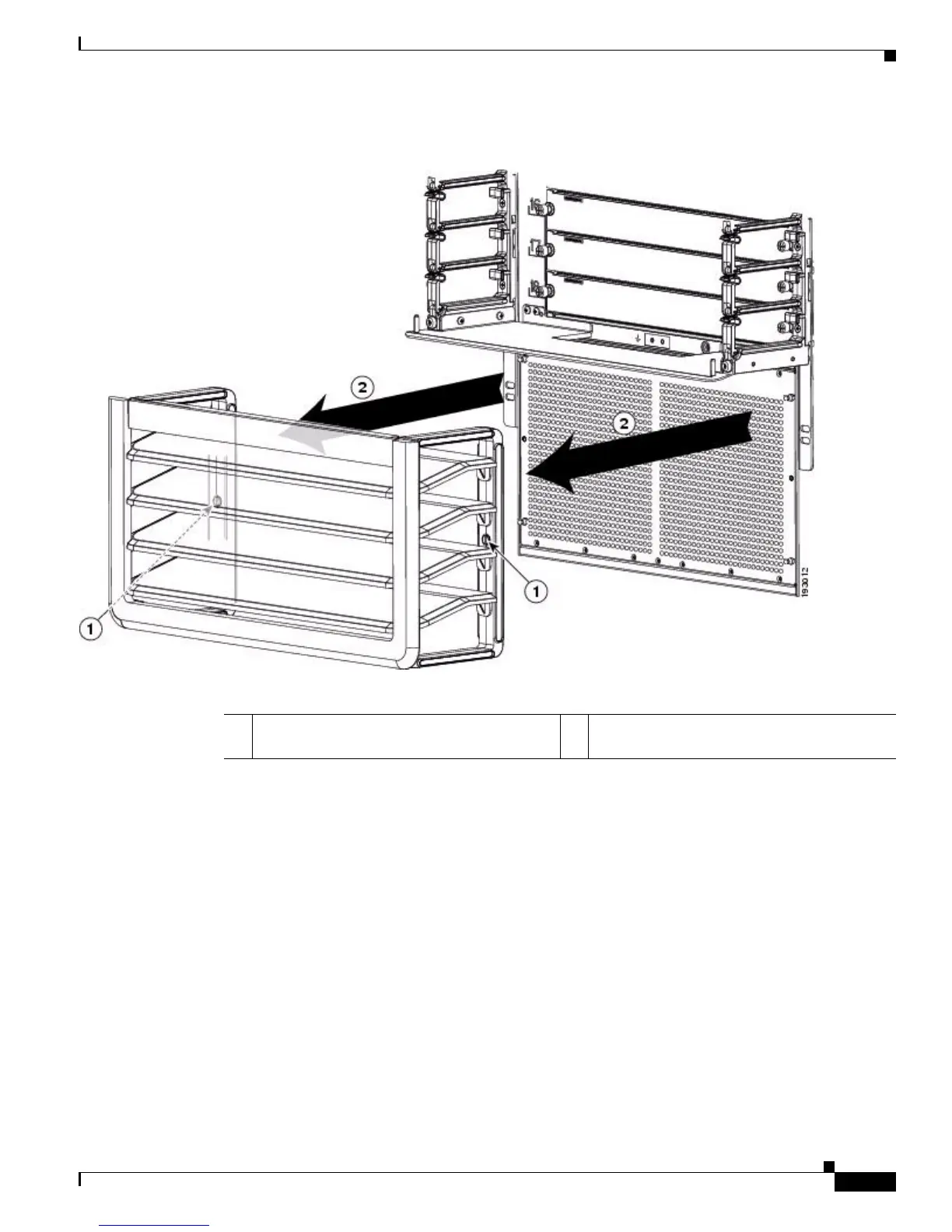

Figure 10-40 Removing the Air Intake Assembly
p.
Pull the air intake assembly off the chassis.
q. Loosen and remove the four ball-point studs shown in Figure 10-41.
r. Repack the air intake frame and ball-point studs in their original packing materials.
1 Loosen two captive screws until they are clear
of the chassis.
2 Remove the air intake assembly from the
chassis.
