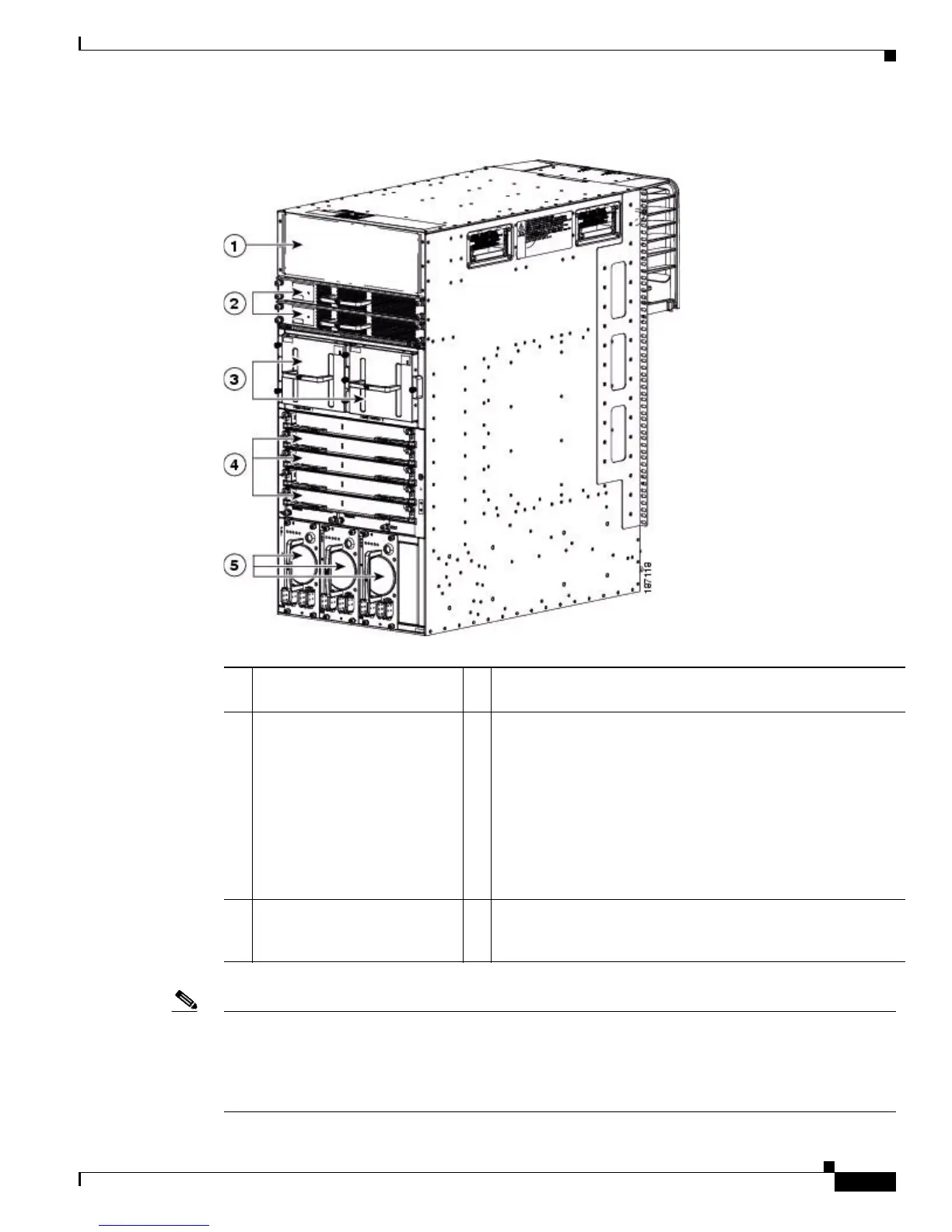

Figure 1-6 Standard Hardware Features on the Back of the Cisco Nexus 7010 Chassis
Note Figure 1-4 and Figure 1-6 show the Cisco Nexus 7000 Series chassis as it appears when it is fully
configured before including cables for connections to the Internet and the console. The systems that are
not fully configured with the maximum number of supervisor modules, I/O modules, fabric modules, or
power supplies have blank filler panels installed in place of the missing components to maintain the
designed airflow for system cooling.
1 Fan exhaust for the supervisor
and I/O modules
4 Fabric modules (up to 5) [N7K-C7010-FAB-1 or
N7K-C7010-FAB-2])
2 System fan trays (2)
(N7K-C7010-FAN-S) and
exhaust for the supervisor and
I/O modules
5 Power supply units (up to 3) and exhaust for the power supply
units—these modules are a combination of the following:
• 6 kW AC power supply (N7K-AC-6.0KW)
• 7.5 kW AC power supply (N7K-AC-7.5KW-INT
[international plugs] and N7K-AC-7.5KW-US [US plugs])
• 6 kW DC power supply (N7K-DC-6.0KW)
• Blank filler plate (replaces a missing power supply to
maintain the designed airflow)
3 Fabric fan trays (2)
(N7K-C7010-FAN-F) and
exhaust for the fabric modules
