A-16
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Appendix A Technical Specifications
Power Supply Cable Specifications

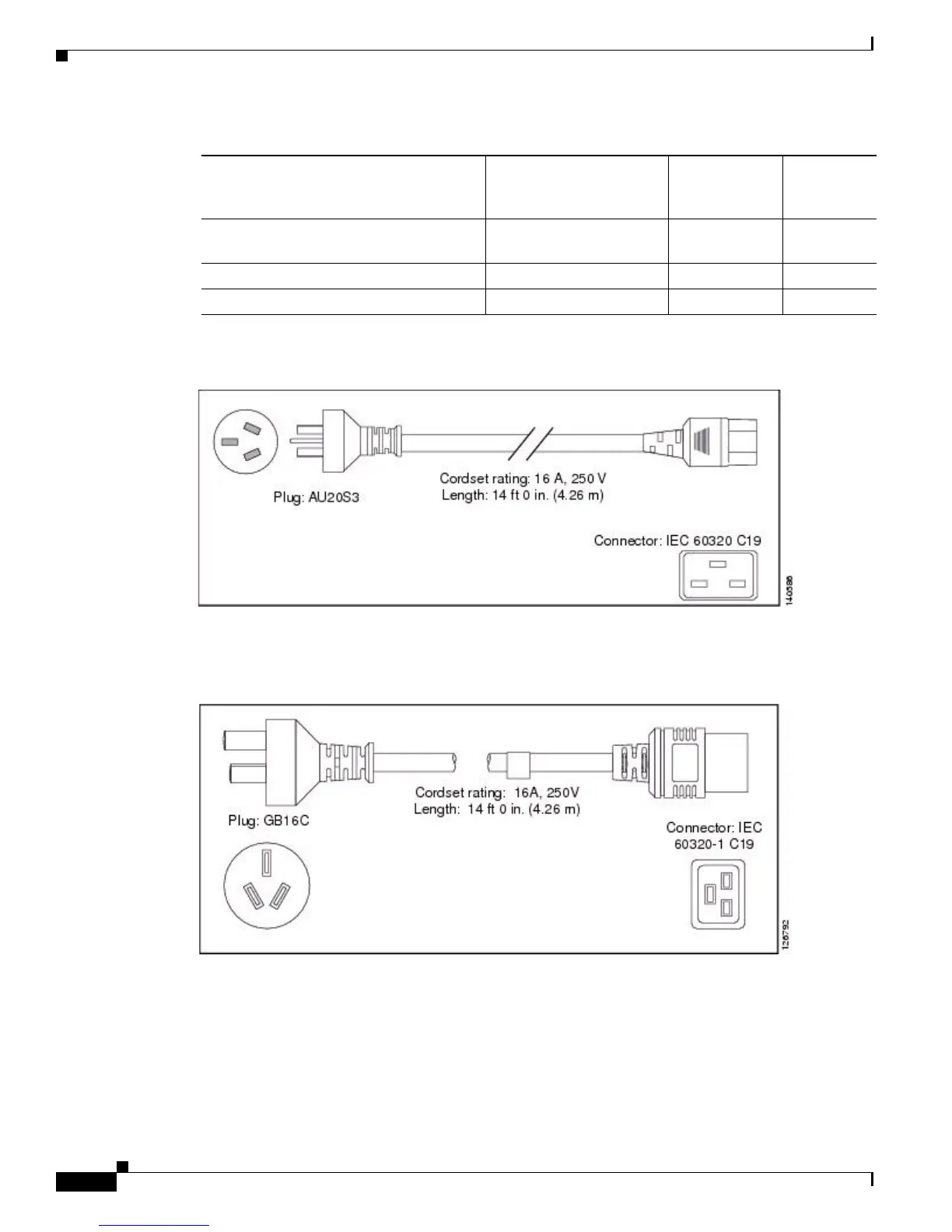

Figure A-1 CAB-AC-16A-AUS Power Cord and Connectors for the 6-kW AC Power Supply Unit
Figure A-2 CAB-AC-16A-CH Power Cord and Connectors for the 6-kW AC Power Supply Unit
Japan and North America 100-120 VAC
operation
CAB-7513AC 16A, 250 VAC Figure A-8
Power distribution unit (PDU) CAB-C19-CBN 16A, 250 VAC Figure A-9
Switzerland CAB-ACS-16 16A, 250 VAC Figure A-10
Table A-16 6-kW AC Power Supply Power Cords (continued)
Locale Power Cord Part Number Cord Set Rating
Power Cord
Reference
Illustration
