Chassis Clearances

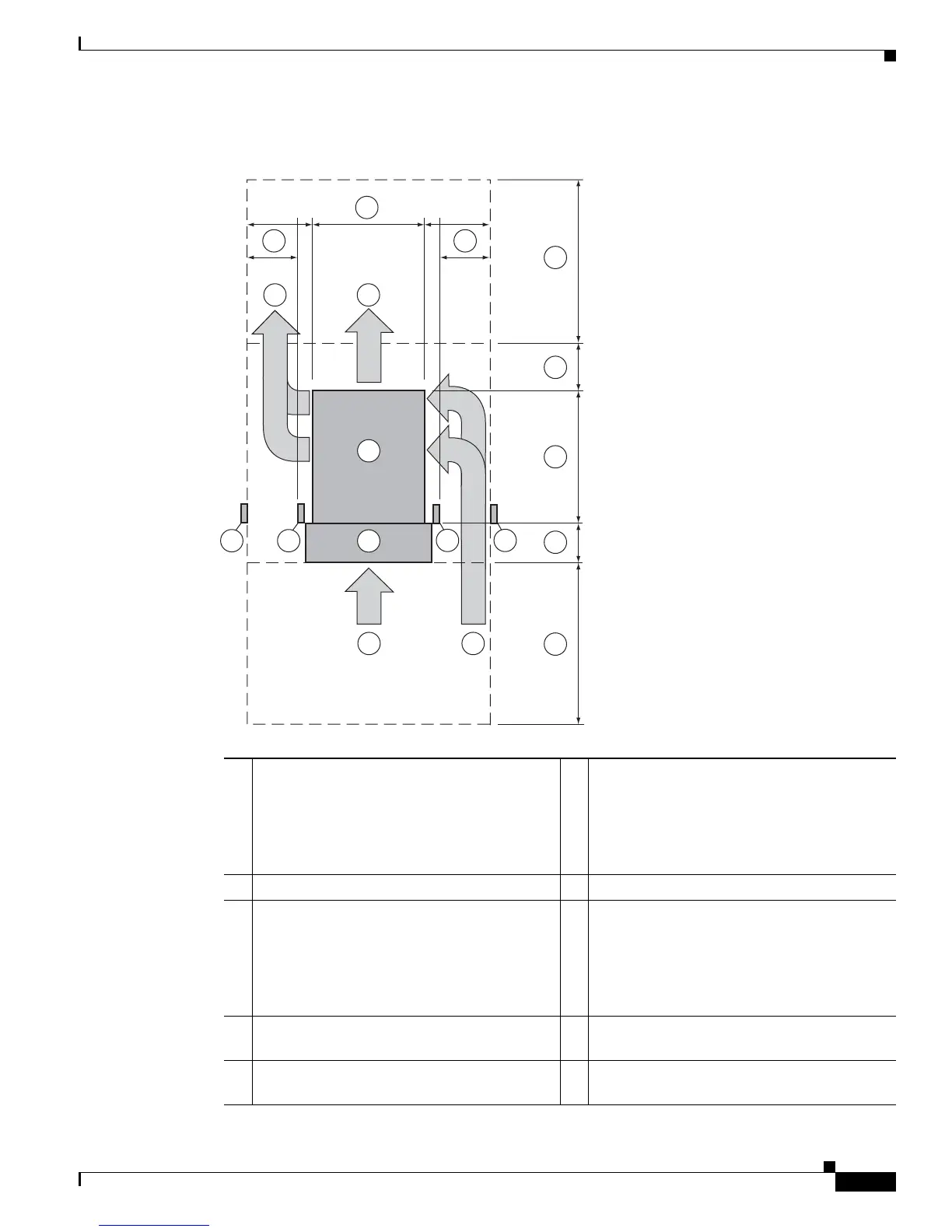

Figure A-18 Clearances Required for a Front-Mounted Cisco Nexus 7009 Chassis in a Two-Post
Rack
12
13
14
15
16
10
119
304233
8 7
65
34
3 4
17.3 in
(43.9 cm)
7.5 in
(19.1 cm)
24.0 in
(61.0 cm)
26.0 in
(66.0 cm)
28.0 in
(71.1 cm)
5.0 in
(12.7 cm)
1
2
1 Cisco Nexus 7009 chassis 9 Side clearance required for open rack
installations:
• If next to another open rack, use 6 inches
(15.2 cm).
• If next to a wall, use 11 inches (27.9 cm).
2 Cable management frames 10 Chassis width
3 Vertical rack-mount post 11 Side clearance required for open rack
installations:
• If next to another open rack, use 6 inches
(15.2 cm).
• If next to a wall, use 11 inches (27.9 cm).
4 Vertical rack-mount post for neighboring rack 12 Rear service clearance required to replace fan
trays and fabric modules
5 Air intake from cold aisle for the power
supplies
13 Airflow clearance required between the
chassis and inside of cabinet (if used)
