B-2
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Appendix B Transceivers and Module Connectors
100-Gigabit CFP Transceivers

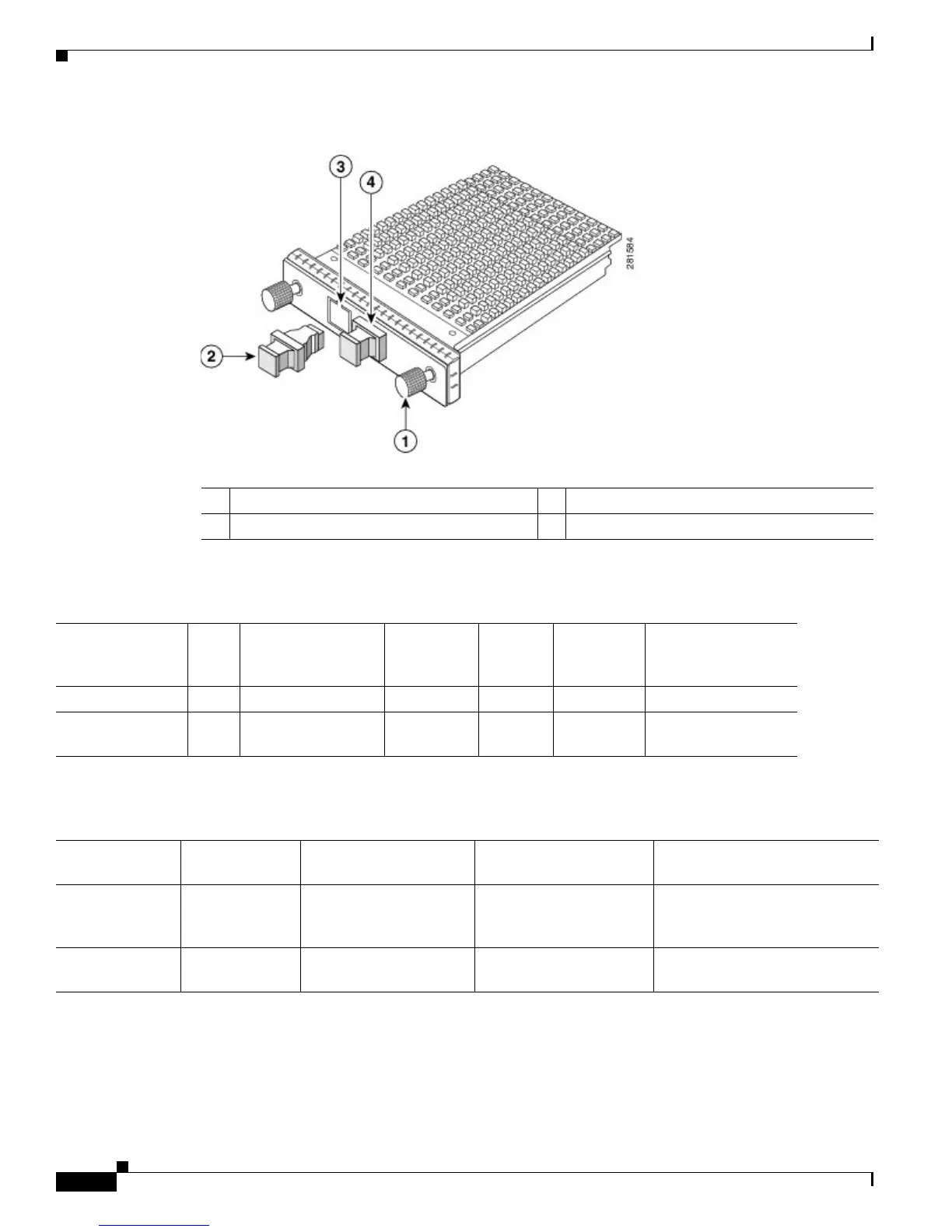

Figure B-1 CFP Transceivers
1 Thumb screws 3 Transmit optical bore
2 Dust plug 4 Receive optical bore
Table B-1 Cable Specifications for the CFP Transceivers
Transceiver
Cable
Type Connector Type
Wavelength
(nm)
Core Size
(microns)
Modal
Bandwidth
(MHz-km)
Maximum Cable
Distance
CFP-100G-LR4 SMF Dual SC/PC 1310 G.652 — 6.21 miles (10 km)
CFP-100G-SR10 MMF MPO/MTP 850 50.0
50.0
2000 (OM3)
4700 (OM4)
328 feet (100 m)
492 feet (150 m)
Table B-2 CFP Transceiver Optical Transmit and Receive Specifications
Product Number Transceiver Type Transmit Power (dBm) Receive Power (dBm)
Transmit and Receive
Wavelength (nm)
CFP-100G-LR4 100GBASE CFP 4.5 (maximum per lane)
–4.3 (minimum per lane)
4.5 (maximum per lane)
–10.6 (minimum per lane)
Four lanes: 1295.6 nm,
1300.1 nm, 1304.6 nm, and
1309.1 nm
CFP-100G-SR10 100GBASE CFP –1.0 (maximum per lane)
–7.6 (minimum per lane)
2.4 (maximum per lane)
–9.5 (minimum per lane)
Ten lanes: 840 to 860 nm
