Appendix B Transceivers and Module Connectors
10-Gigabit SFP+ Transceivers and Fabric Extender Transceivers
Figure B-4 identifies the major features of these transceivers. For the cable specifications that apply to
SFP+ transceivers and FETs, see Table B-12. For the physical and environmental specifications, see
Table B-13. For the environmental specifications that apply to these transceivers, see Table B-14.

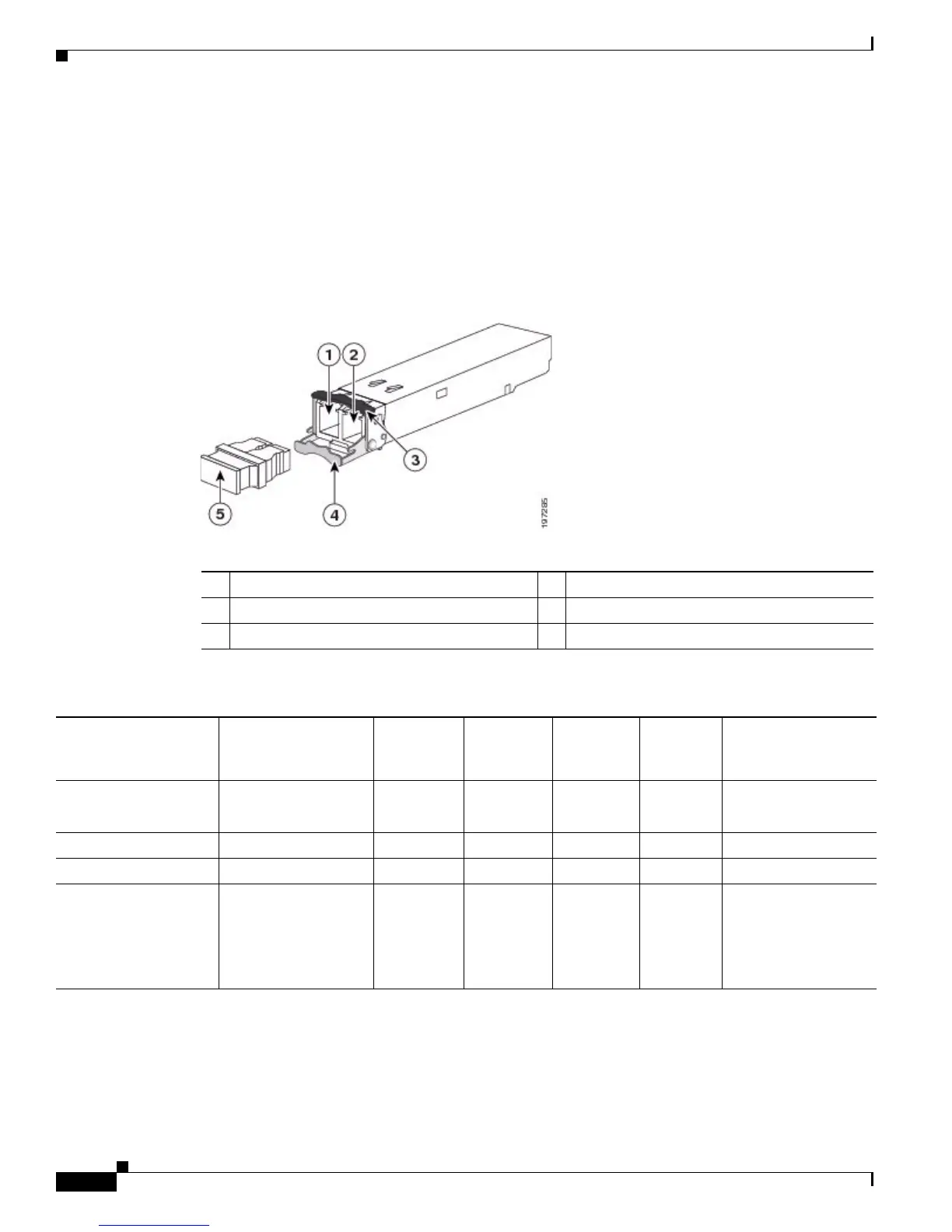

Figure B-4 SFP+ Transceivers and FETs
2. Requires the OneX Converter Module (part number CVR-X2-SFP10G) when this transceiver is used with the 8-port 10-GB
I/O module.
3. Requires revision 2 of this transceiver.
1 Receive optical bore 4 Clasp shown in open position
2 Transmit optical bore 5 Dust plug
3 Clasp shown in closed position
Table B-12 Cable Specifications for the 10-Gigabit SFP+ Transceivers and FETs
Transceiver Cable Type
Connector
Type
Wavelength
(nm)
Core Size
(microns)
Modal
Bandwidth
(MHz-km)
Maximum Cable
Distance
FET-10G MMF Dual LC/PC 850 50
50
500
2000
82 feet (25 meters)
328 feet (100 meters)
SFP-10G-ER SMF Dual LC/PC 1550 G.652 fiber — 24.9 miles (40 km)
SFP-10G-LR SMF Dual LC/PC 1310 G.652 fiber — 6.2 miles (10 km)
SFP-10G-LRM MMF
SMF
Dual LC/PC 1310 62.5
50
50
G.652
500
400
500
—
722 feet (220 meters)
328 feet (100 meters)
722 feet (220 meters)
984 feet (300 meters)
