Chapter 1 Overview
Cisco Nexus 7000 Series

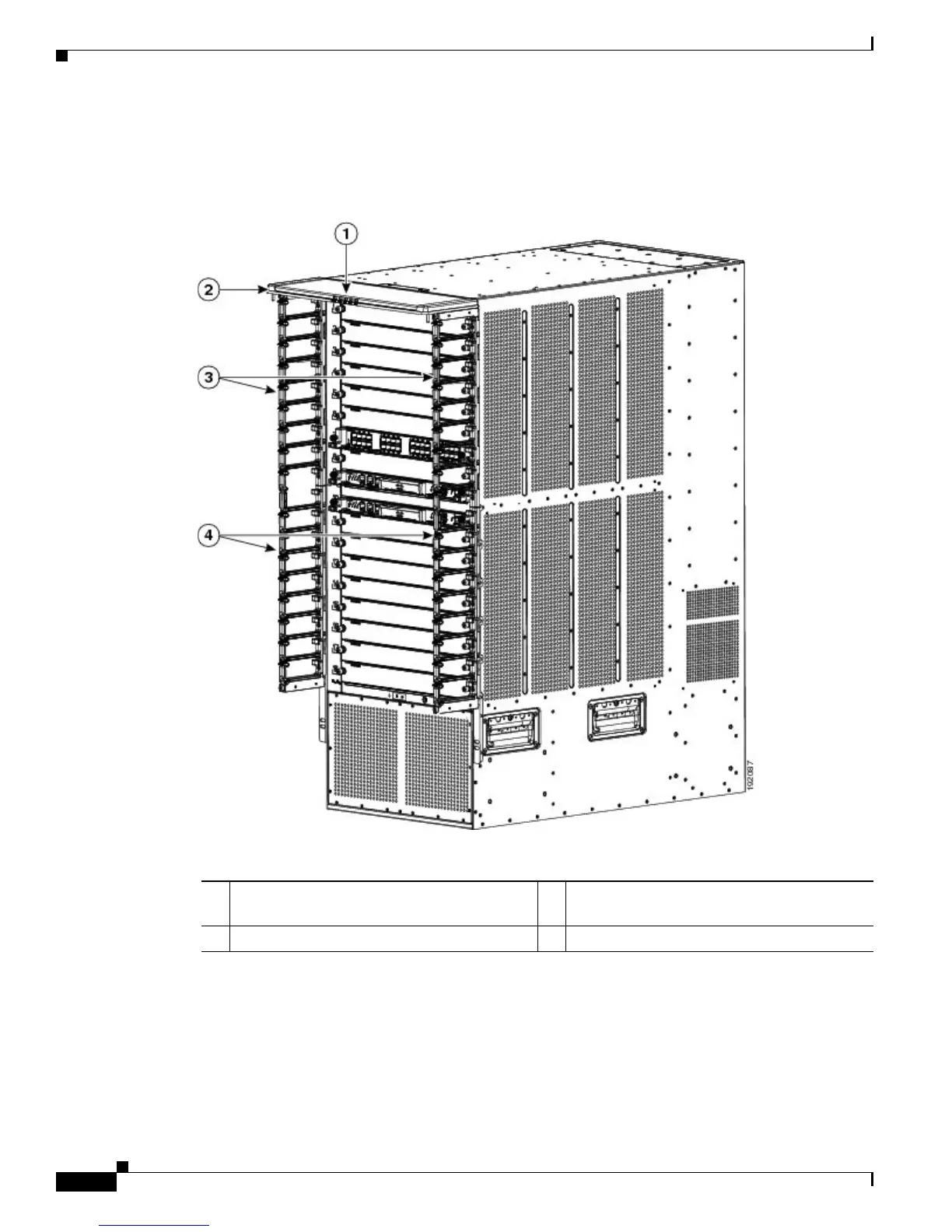

Figure 1-10 Cable Management System for the Cisco Nexus 7018 Chassis
1. The Cisco Nexus F2-Series 48-port 1/10-Gigabit SFP+ module supports all of the standard features of F2 modules and it functions like an F2-series
module with Layer 2 and Layer 3 enabled. These modules also support IPv6 DSCP-to-Queue mapping.
1 System status LEDs (these LEDs show the
system status displayed by the chassis LEDs)
3 Upper cable management assemblies
2 Top hood 4 Lower cable management assemblies
