Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components

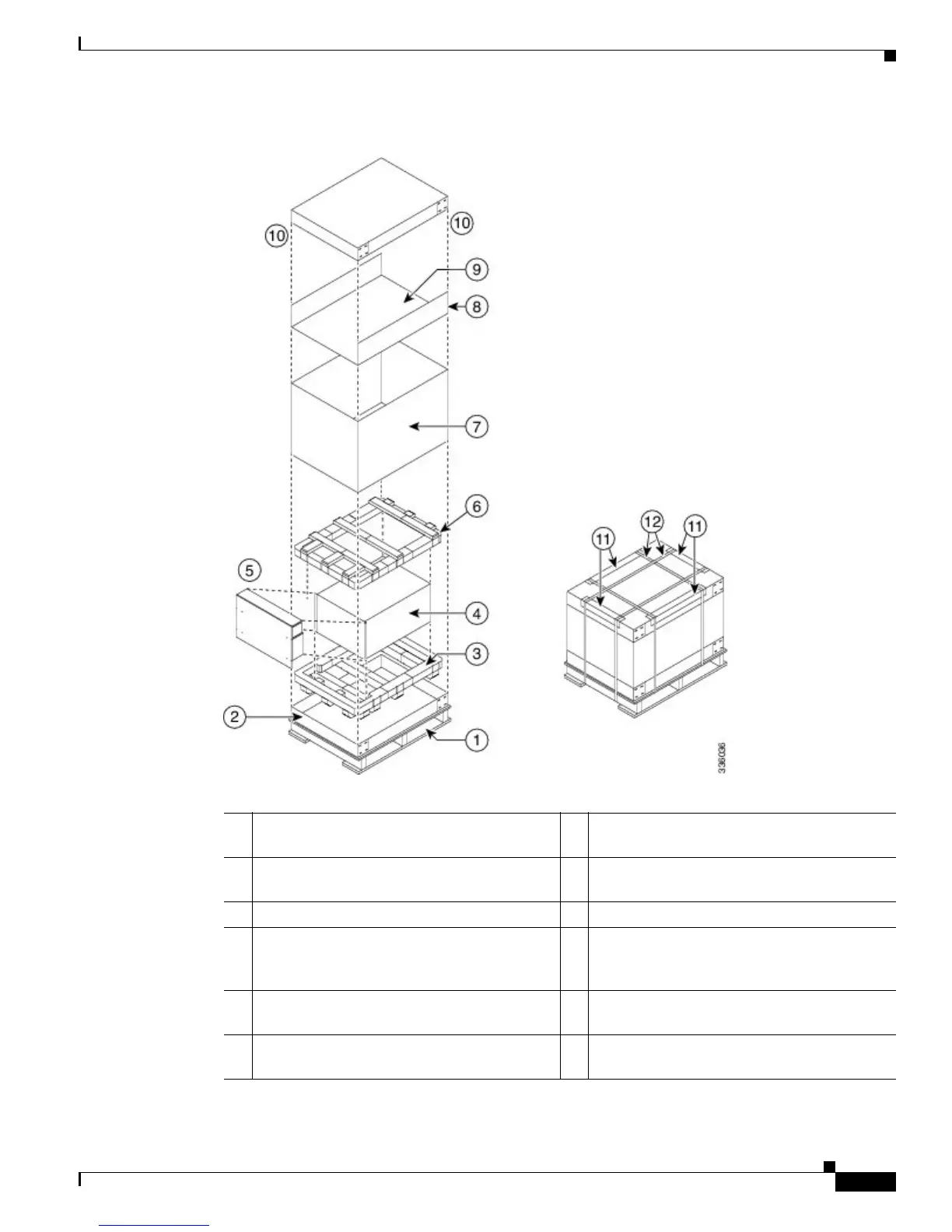

Figure E-3 Packing the Cisco Nexus 7004 Chassis
1 Pallet laying flat on the floor 7 Four sided box placed around chassis and
inside the walls of the box bottom piece
2 Box bottom with open side facing up 8 Trifold accessory tray placed inside box and
on top of padding
3 Padding placed inside box bottom 9 Accessory kit placed in accessory tray
4 Chassis placed on padding and positioned
with its rear against one side of the padding
(including power supplies)
10 Box top placed over the four sided box with
the box top walls outside the box
5 Cardboard insert placed in remaining open
area of padding against front of chassis
11 Four edge protectors placed on the top outer
edges of the box top
6 Padding placed on top of chassis 12 Four strapping tapes secure the box to the
pallet
