E-28
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components

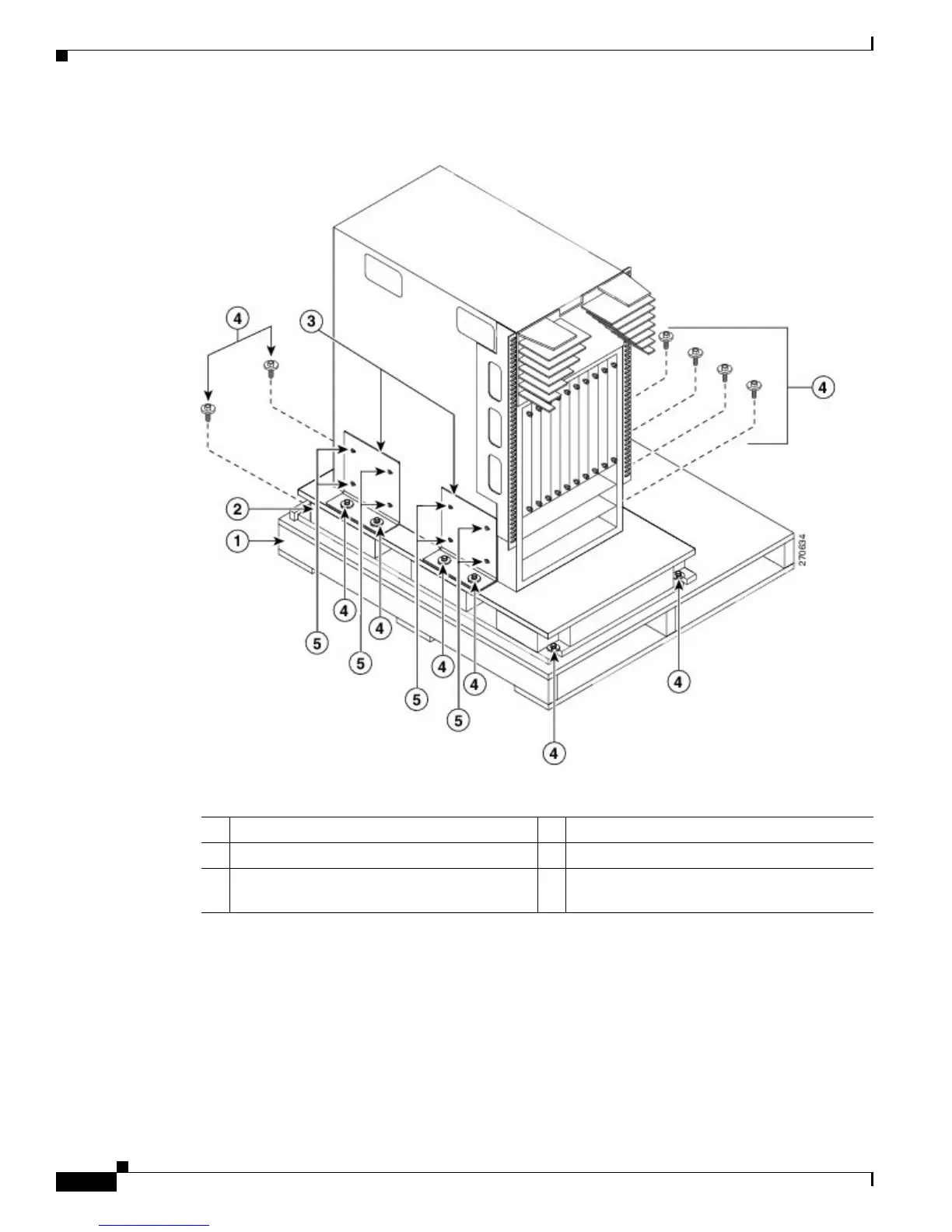

Figure E-16 Attaching the Chassis to the Shipping Pallet
Step 17
Align the screw holes in the side of the chassis with the screw holes in the vertical sides of the two angle
brackets. Fasten the two angle brackets to the chassis by securely tightening the four screws for each
bracket. See Figure E-16.
Step 18 Attach two more angle brackets to the pallet on the other side of the chassis. Make sure that the four
screw holes on the vertical side of each bracket align with four holes in the chassis.
Step 19 Use four screws to securely attach each of the additional two brackets to the chassis.
Step 20 Securely fasten the two bolts on each of the four angle brackets to the pallet.
Step 21 Place the packing bag over the chassis.
1 Lower pallet 4 Bolts holding brackets to the upper pallet
2 Raised portion of the pallet 5 Screws holding the chassis to the brackets
3 Mounting brackets (two shown and two
hidden on the other side of the chassis)
