Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components

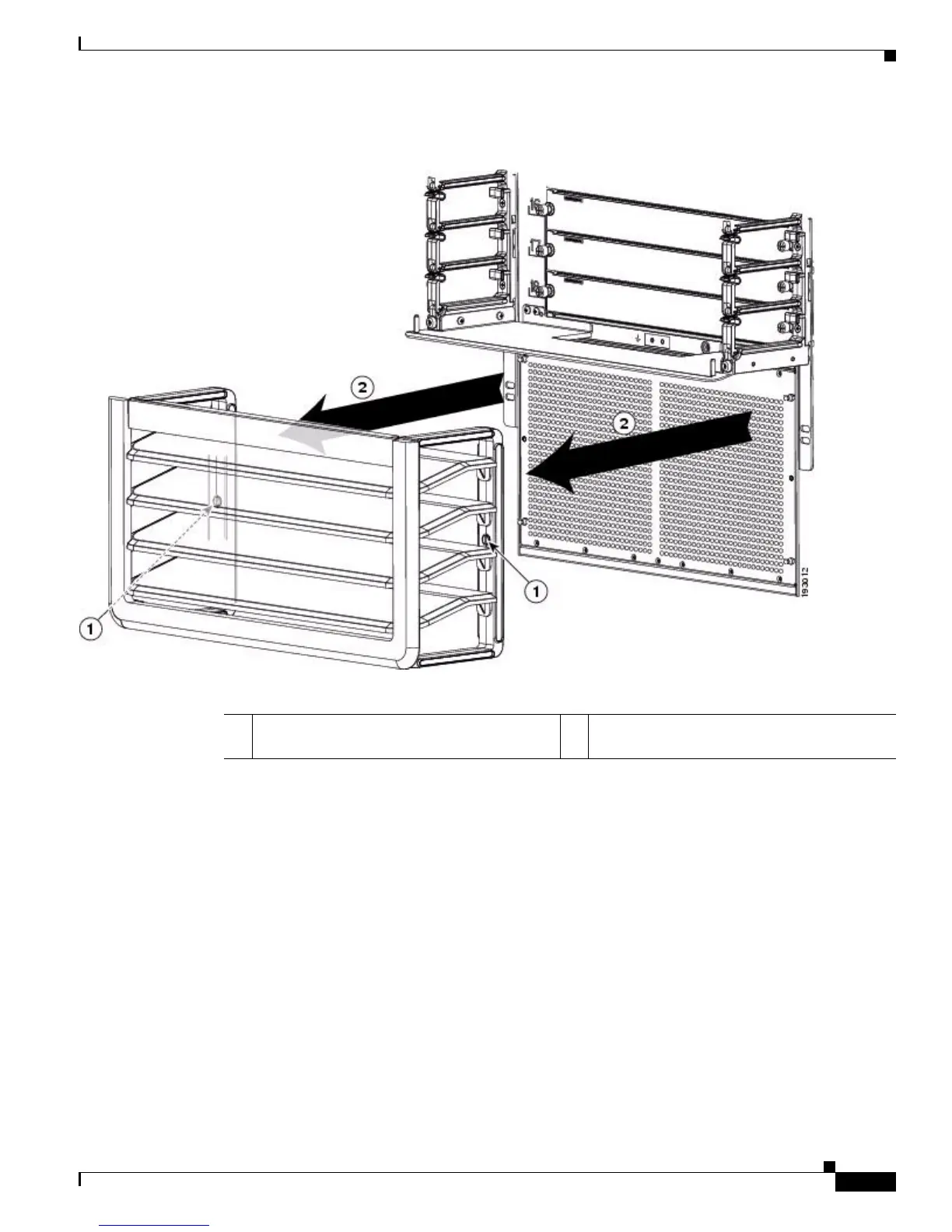

Figure E-25 Removing the Air Intake Assembly
n.
Pull the air intake assembly off the chassis.
o. Loosen and remove the four ball-point studs shown in Figure E-26.
1 Loosen two captive screws until they are clear
of the chassis.
2 Remove the air intake assembly from the
chassis.
