E-44
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components
Step 10 Remove and repack the cable management system by following these steps:
a. Loosen and remove the eight M4x8 pan-head screws that fasten the top cover to the upper cable
management assemblies and chassis (see Figure E-28).

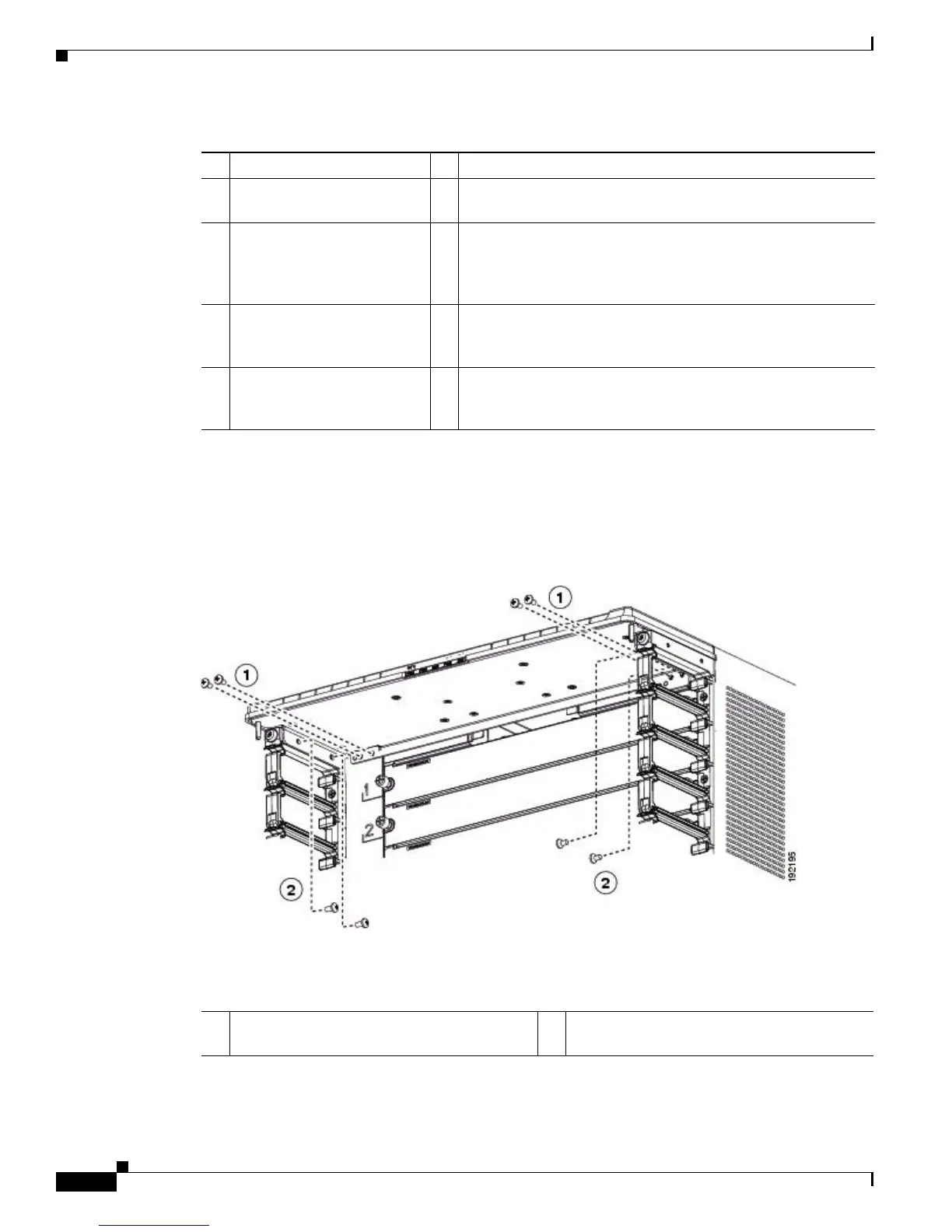

Figure E-28 Detaching the Top Cover from the Upper-Cable-Management Assemblies and Chassis
b.
Remove the top cover from the chassis and the two upper cable management assemblies.
1 Open the box. 6 Place the bag of small parts bag in one of the filler boxes
2 Insert the front door box into
the main box.
7 Fold the two short flaps over the top of the box.
3 Insert the air intake frame
box next to the front door box
and at the bottom of the main
box.
8 Fold the two long flaps over the top of the short flaps.
4 Place the bottom hinge
bracket box on top of the air
intake frame box.
9 Tape the tow long flaps together and to the box with packing
tape.
5 Place two filler boxes on top
of the bottom hinge bracket
box.
1 Four M4x8 pan-head screws fastened to the
chassis
2 Four M4x8 pan-head screws fastened to the
two upper cable management assemblies
