Appendix E Repacking the Cisco Nexus 7000 Series Switch for Shipment
Repacking the System Components

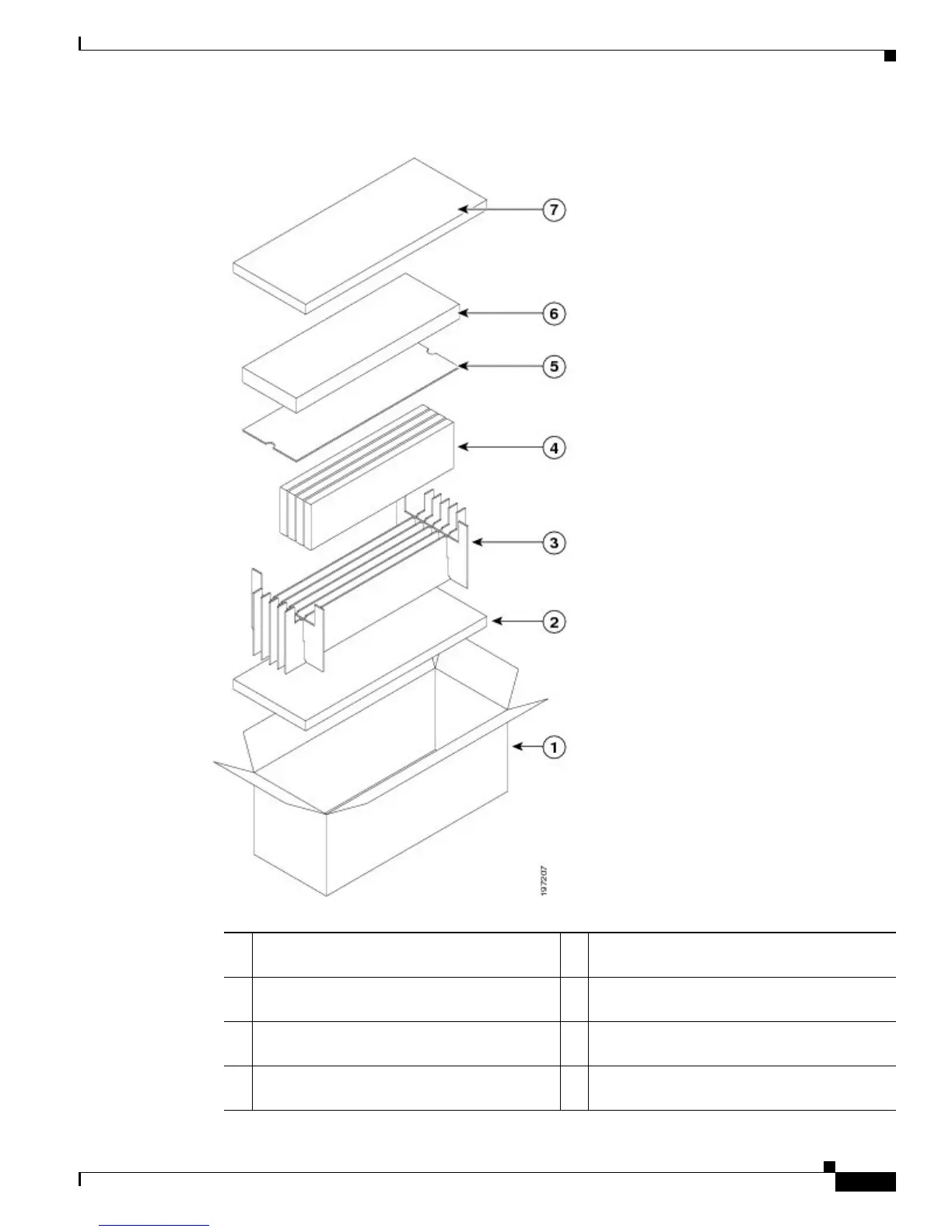

Figure E-31 Packing the Cisco Nexus 7018 Cable Management System
1 Open the cable management box. 5 Place the flat cardboard divider on top of the
cable management frames.
2 Insert a packing cushion at the bottom of the
box.
6 Place the top-cover box.
3 Insert the cable management frame dividers. 7 Insert a packing cushion above the top-cover
box.
4 Insert each of four cable management frames
in an open divider slot.
