Chapter 3 Installing a Cisco Nexus 7009 Chassis
Installing the Chassis

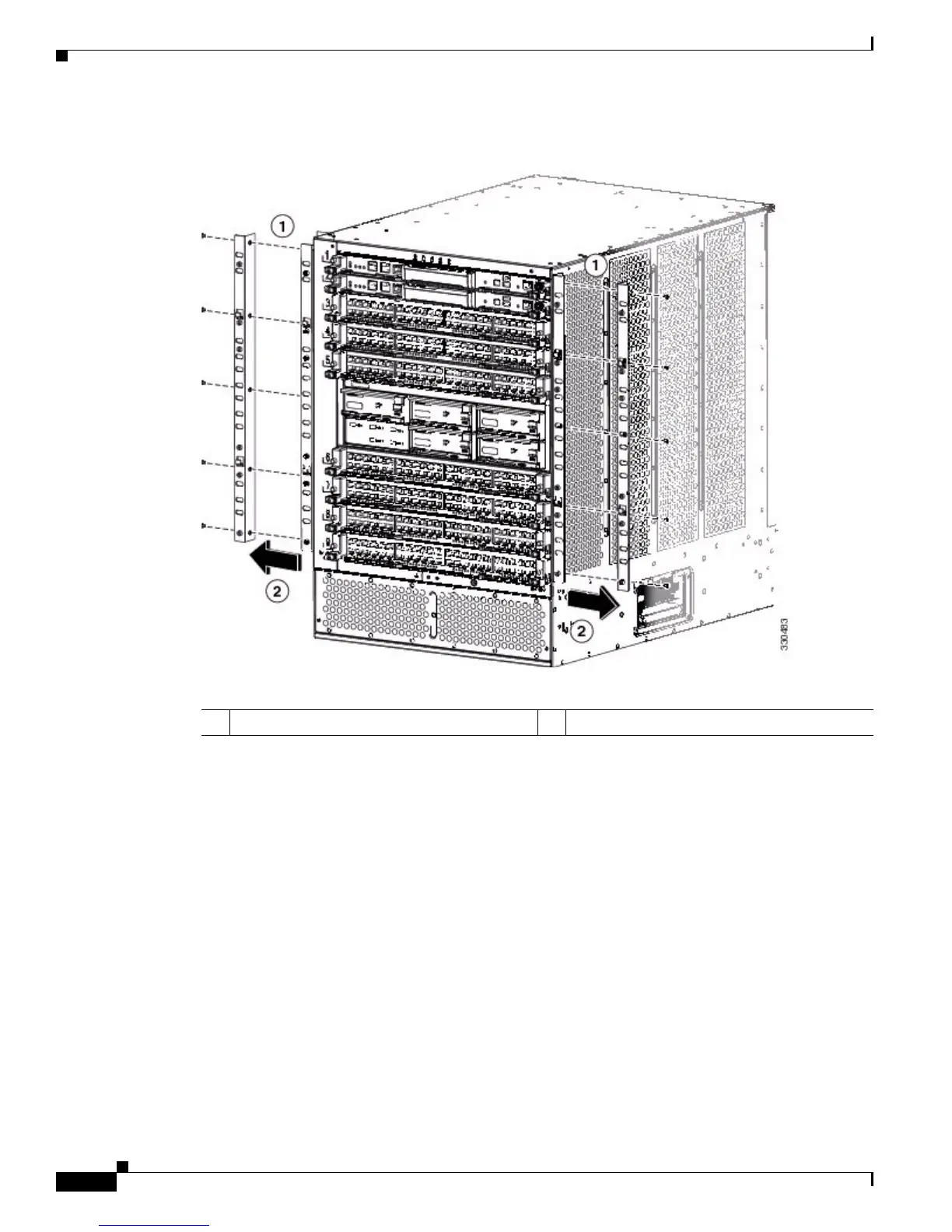

Figure 3-7 Removing the Front-Mount Brackets
b. Position the center-mount bracket so that its five screw holes are aligned to the five screw holes used
for the front-mount bracket (see Figure 3-8).
1 Remove five screws from each bracket 2 Remove the bracket from the chassis
