Chapter 3 Installing a Cisco Nexus 7009 Chassis
Grounding the Cisco Nexus 7009 Chassis

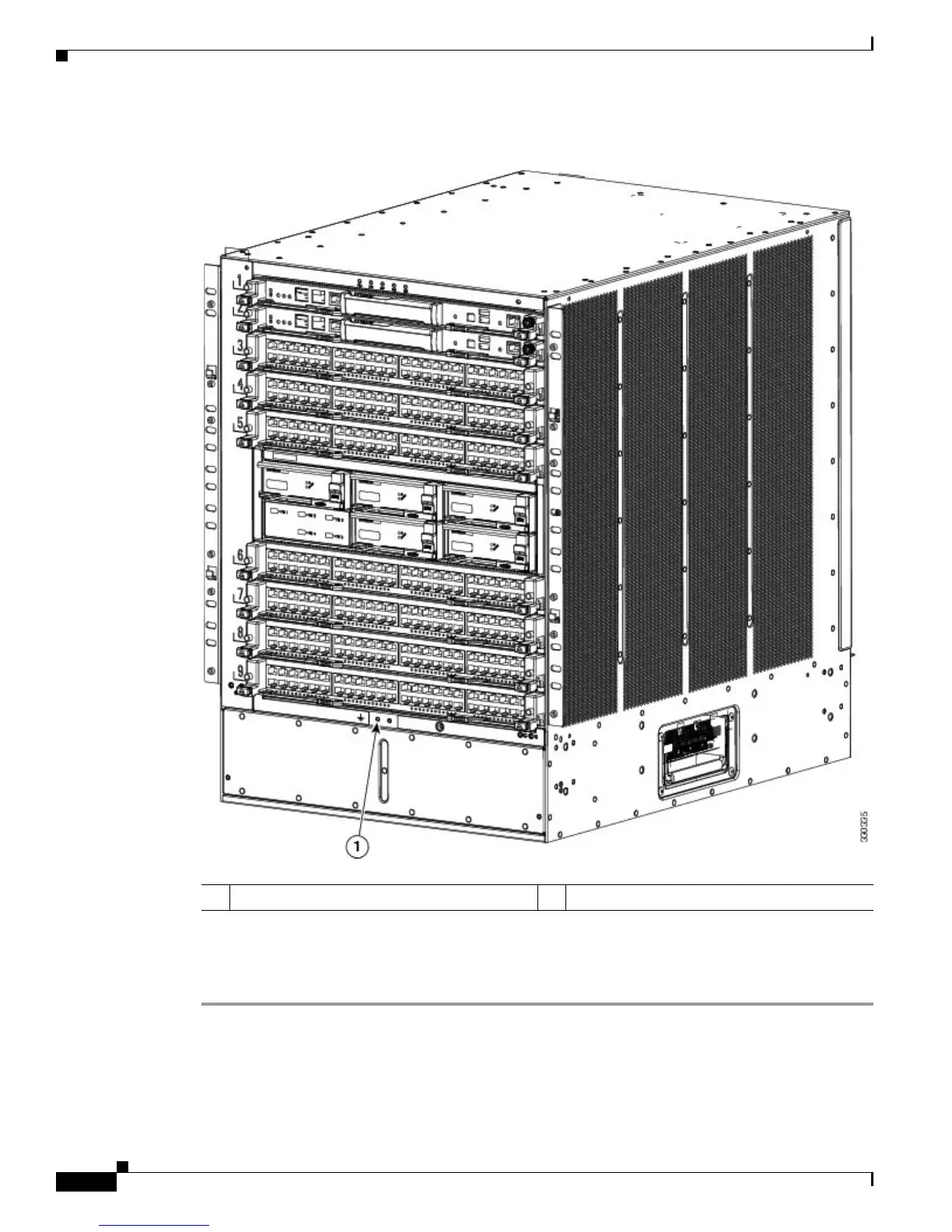

Figure 3-12 Grounding Pad on the Front of the Cisco Nexus 7009 Chassis
Prepare the other end of the grounding wire and connect it to an appropriate grounding point in your site
to ensure an adequate earth ground for the switch. If the rack is grounded, connect the grounding wire
as explained in the documentation provided by the vendor for the rack.
1 Grounding pad
