3-26
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
OL-23069-07
Chapter 3 Installing a Cisco Nexus 7009 Chassis
Installing the Cable Management Frames

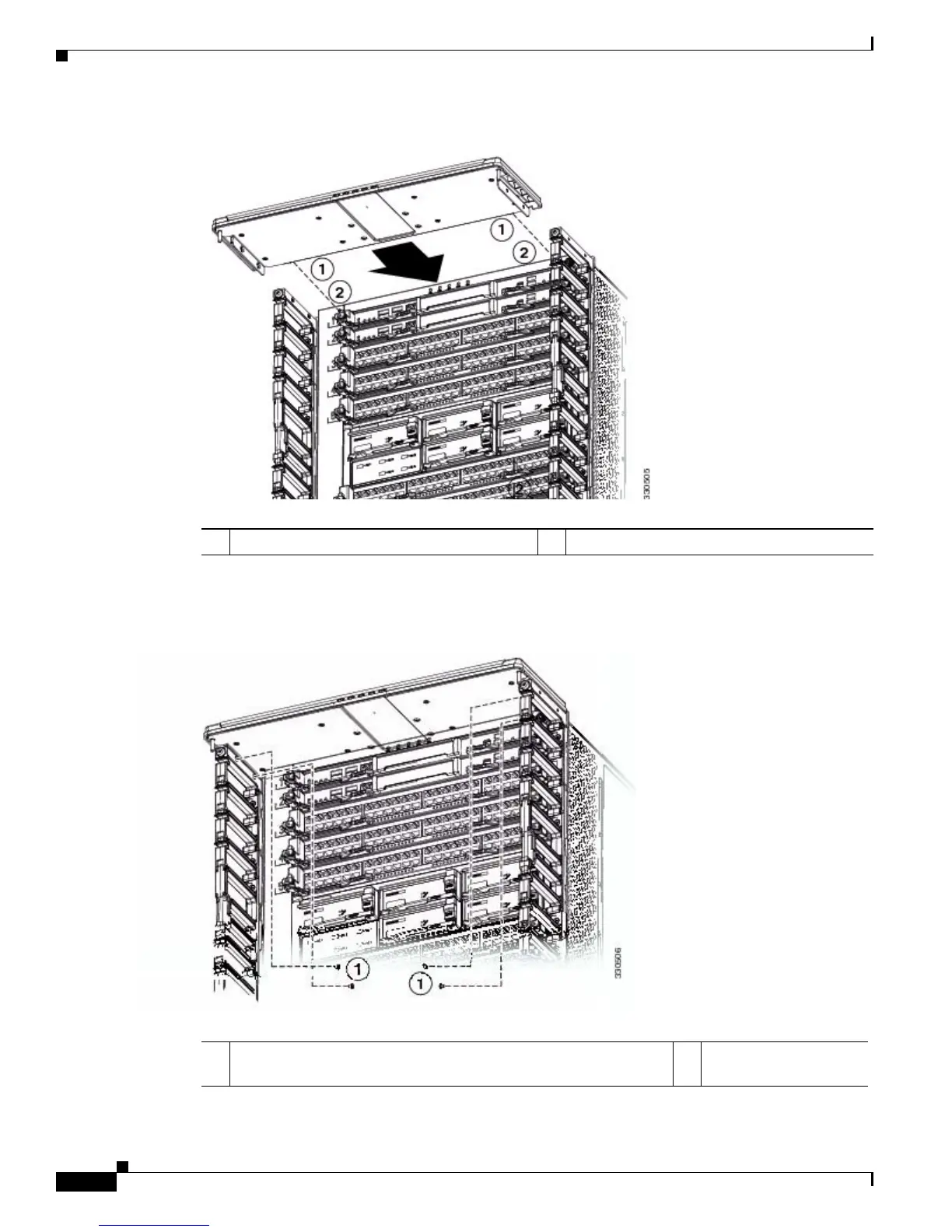

Figure 3-15 Positioning the Top Hood with the Cable Management Frames and the Chassis
Step 4
Use four M4x8 pan-head screws to loosely fasten the top hood to the chassis as shown in Figure 3-16.
Figure 3-16 Fastening the Top Hood to the Chassis and Cable Management Assemblies
1 Alignment pins 2 Alignment holes
1 Four M4x8 pan-head screws that fasten the top hood to the left and
right cable management assemblies (two screws for each side).
