Cisco Room Panorama User Manual

Name: Cisco Room Panorama
Brand: Cisco
Rating: 5 (1 reviews)

120 pages

To Next Page

To Previous Page

Upper trim, center

(M4x12, Torx 20

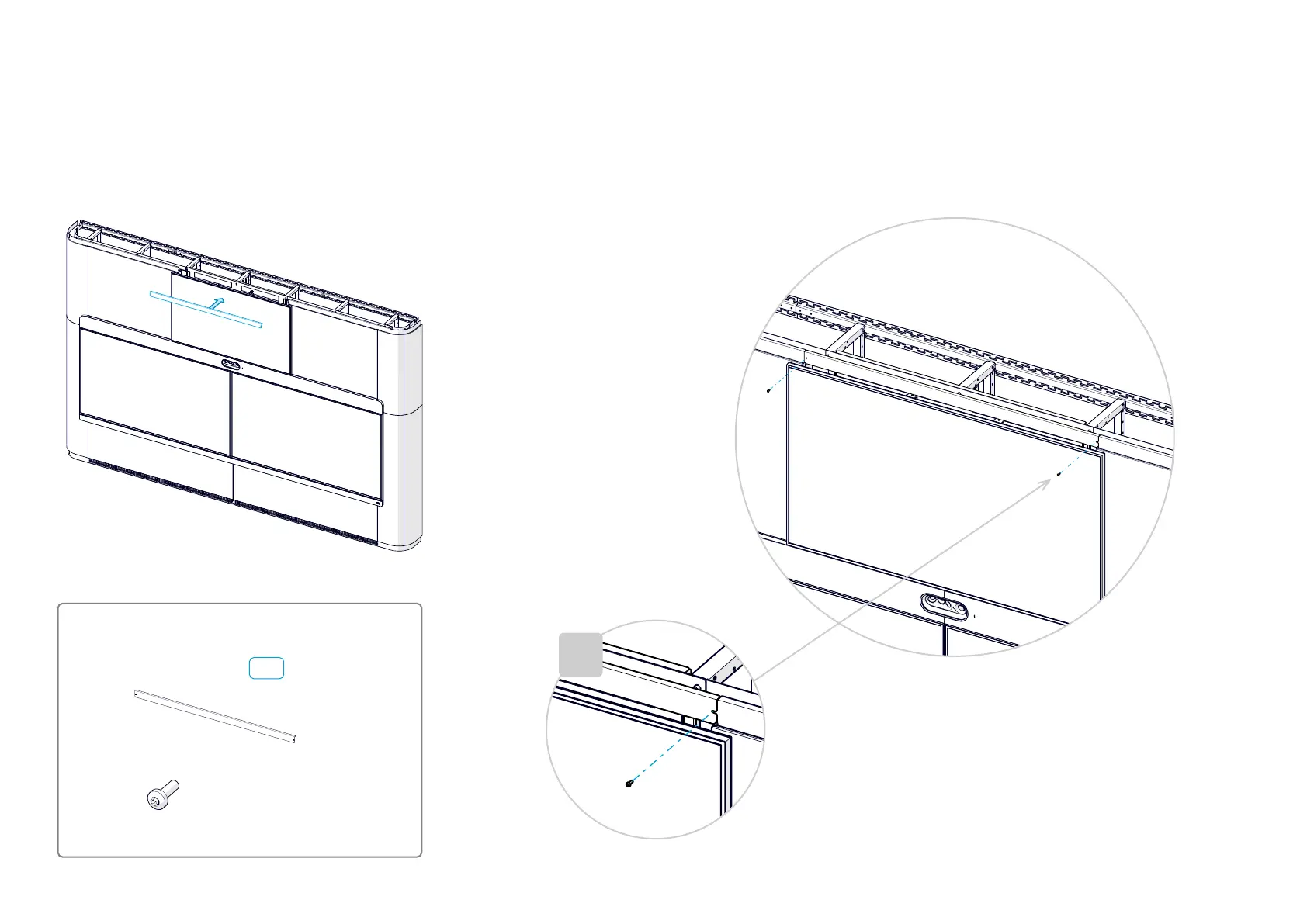

27. Mount the center part of the upper trim

Add the center part of the upper trim and fasten it

with two screws.

×2

Upper trim, center

Table of Contents4
Before You Start the Installation5
Packaging6
Screws and Tools7
Installing Room Panorama with Cosmetic Wall Panels8
Fasten the Horizontal Rails9
Mount the Vertical Risers13
Place the Subwoofers16
Mount the Cavities18
Fasten the Mounting Plates for the Speakers22
Mount the PSU Bracket24
Mount the Codec and Amplifier25
Attach the Rating Label27
Mount the Ethernet Switch28
Mount the Antennas29
Mount the Fan Module30
Connect Cables31
Organize the Cables Neatly35
Mount Brackets for the Cosmetic Panels36
Mount the Flex Tubes for Cables40
Mount the Bottom Trim42
Mount the Upper Trim44
Mount the Content Cavity and Screen Mount Brackets46
Mount the Cosmetic Panels48
Mount the Camera62
Mount the Fan Duct64
Mount the Loudspeakers65
Mount the Content Screen68
Mount the Right Screen and Deco Grille71
Mount the Left Screen and Deco Grille86
Mount the Speaker Grille88
Mount the Center Part of the Upper Trim91
Pull up and Connect the Cables between the System and Components on the Table92
Mount the Ethernet Switch in the Table93
Place Components on the Table94
Finish up95
Installing Room Panorama with a Custom Wall97
Extra Requirements and Preparations When Building a Custom Wall98
A1. Mount the Rails and Risers102
A2. Build the Custom Wall Structure102
A3. Paint Visible Parts of the Wooden Structure104
A4. Mount the Antenna Support105
A5. Mount the Flex Tubes106
A6. Mount the Custom Wallboards107
A7. Place the Subwoofers and Mount the Rack Cavity108
A8. Complete the Flex Tube Mounting108
A9. Route the Antennas to the Rack Cavity109
A10. Mount the Remaining Cavities109
A11. Fasten the Mounting Plates for the Speakers110
A12. Mount the Subwoofer Grille111
A13. Mount Components112
A14. Connect the Antennas112
A15. Connect and Organize Cables113
A16. Mount the Content Cavity and Screen Mount Brackets113
A17. Mount and Adjust Spacers for All Screens114
A18. Mount the Remaining Components and Grilles115
A19. Mount and Connect the Components on the Table and Finish up115
Connector Panels116
More Information about Our Products118
