Chapter 2 Introduction to the SCE Platform
Information About The SCE Platform
Back Panel
The SCE 2000 platform back-panel contains the following components:
• Two field-replaceable power supply units with ON/OFF switches
• A field-replaceable fan drawer
• Ground connections
• Two connectors to the external bypass module
The rear panels of both the AC- and DC-powered SCE 2000 platforms are shown in the following pair
of figures.

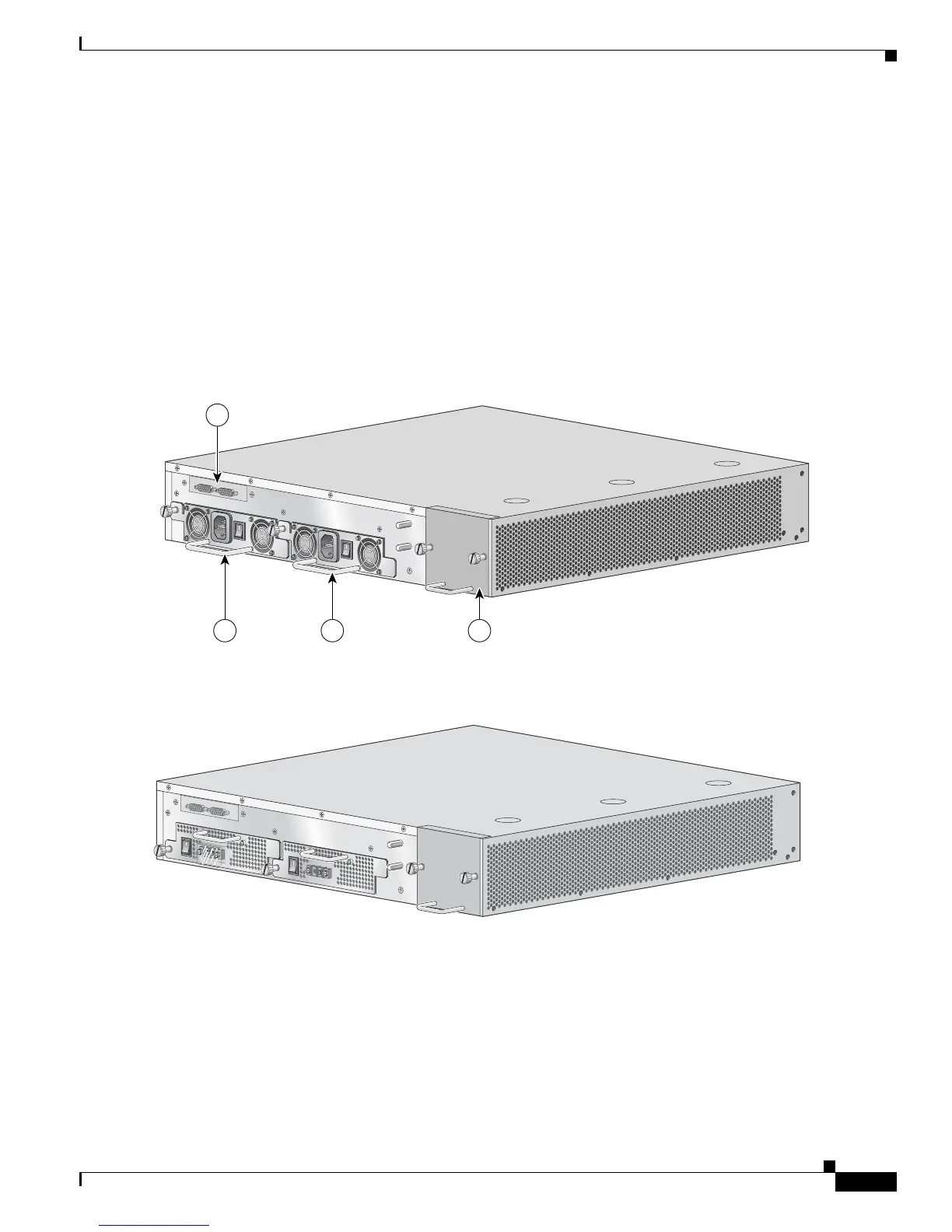

Figure 2-2 SCE 2000 Back Panel: AC Power
Figure 2-3 SCE 2000 Back Panel: DC Power
Information About Checking the Shipping Container Contents
Use the SCE 2000 Component List to check the contents of the SCE 2000 platform shipping container.
Do not discard the shipping container. You need the container if you move or ship the SCE 2000 platform
in the future.
• SCE 2000 Component List
BYPASS 2
IN
PO
W
ER
BO
K
IN
PO
W
ER A OK
BYPASS 1
1
234
92760
BYPASS 2
IN POW
ER
BO
K
IN
PO
W
ER A
O
K
BYPASS 1
210432

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
