4-25
Cisco SCE 2000 4xGBE Installation and Configuration Guide
OL-7824-06
Chapter 4 Installation and Maintenance
Fan Module Overview
Replacing the Fan Module
SUMMARY STEPS
1. Grasp the fan module handle with one hand and place your other hand underneath the fan module
for support. The handle of the unit should be at the bottom.
2. Fit the groove in the side of the new fan module into the guide in the chassis.
3. Gently, but firmly, slide the module into the chassis until its faceplate is flush with the chassis rear
panel.
4. Seat the fan module in the SCE 2000 platform by tightening the two captive installation screws with
a 1/4-inch flat-blade screwdriver.
DETAILED STEPS
Step 1 Grasp the fan module handle with one hand and place your other hand underneath the fan module for
support. The handle of the unit should be at the bottom.
Step 2 Fit the groove in the side of the new fan module into the guide in the chassis.
Step 3 Gently, but firmly, slide the module into the chassis until its faceplate is flush with the chassis rear panel.

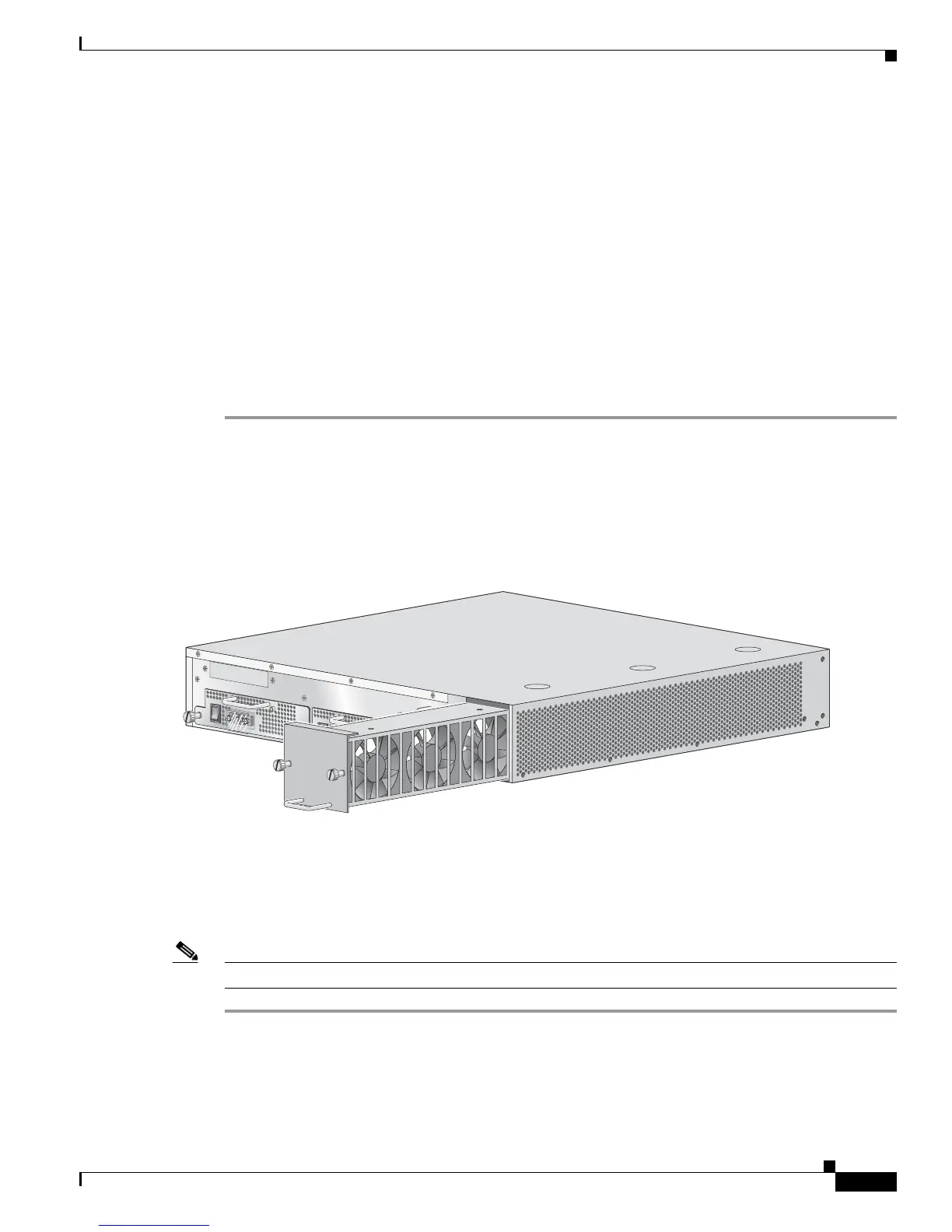

Figure 4-19 Inserting the Fan Module
When inserting a fan module into the SCE 2000 platform, do not use unnecessary force; slamming the
fan module into the chassis can damage the connectors on the rear of the module.
Step 4 Seat the fan module in the SCE 2000 platform by tightening the two captive installation screws with a
1/4-inch flat-blade screwdriver.
Note The fan module is not fully seated until you tighten the installation screws on the faceplate.
IN PO
W
ER B O
K
IN
PO
W
ER A
O
K
210416
