4-24
Cisco SCE 2000 4xGBE Installation and Configuration Guide
OL-7824-06
Chapter 4 Installation and Maintenance
Fan Module Overview

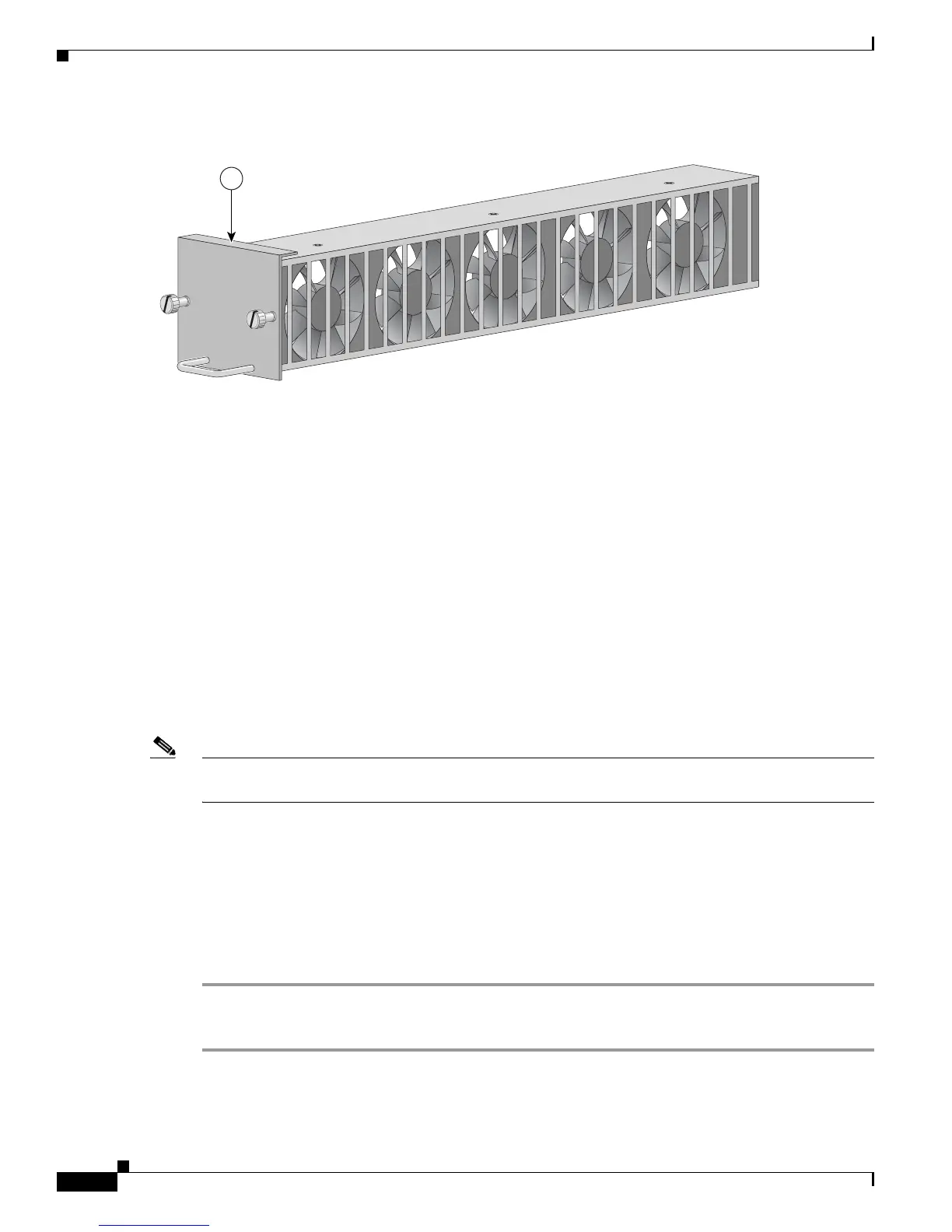

Figure 4-18 SCE Platform Fan Module
When a fan failure occurs, the environment monitor will send an error message to the console. An SNMP
trap indicating that the fan is not functioning properly is also sent. Note that a fan failure is often audible.
• Removing and Replacing the Fan Module
• Replacing the Fan Module
Removing and Replacing the Fan Module
The following sections explain how to remove and replace a fan module in a SCE 2000 platform:
Do not remove or install modules without using appropriate anti-static guard measures. The SCE 2000
includes an anti-static wrist strap in the accessory kit. Attach the copper tape strap to an unpainted metal
surface on the chassis. You may leave the strap connected to the chassis when your have finished.
• How to Remove the Fan Module
How to Remove the Fan Module
Note When removing the fan drawer, keep hands and fingers away from the spinning fan blades. Let the fan
blades stop completely before removing the fan drawer.
SUMMARY STEPS
1. Using a 1/4-inch flat-blade screwdriver, loosen the two captive screws on the faceplate of the fan
module.
2. Grasp the fan module handle and remove it from the router.
DETAILED STEPS
Step 1 Using a 1/4-inch flat-blade screwdriver, loosen the two captive screws on the faceplate of the fan module.
Step 2 Grasp the fan module handle and remove it from the router.
92772
1
