ACL
MAC Based ACL
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 104
6
To define MAC Based ACLs:
STEP 1 Click ACL > MAC Based ACL. The
MAC Based ACL Screen
opens.

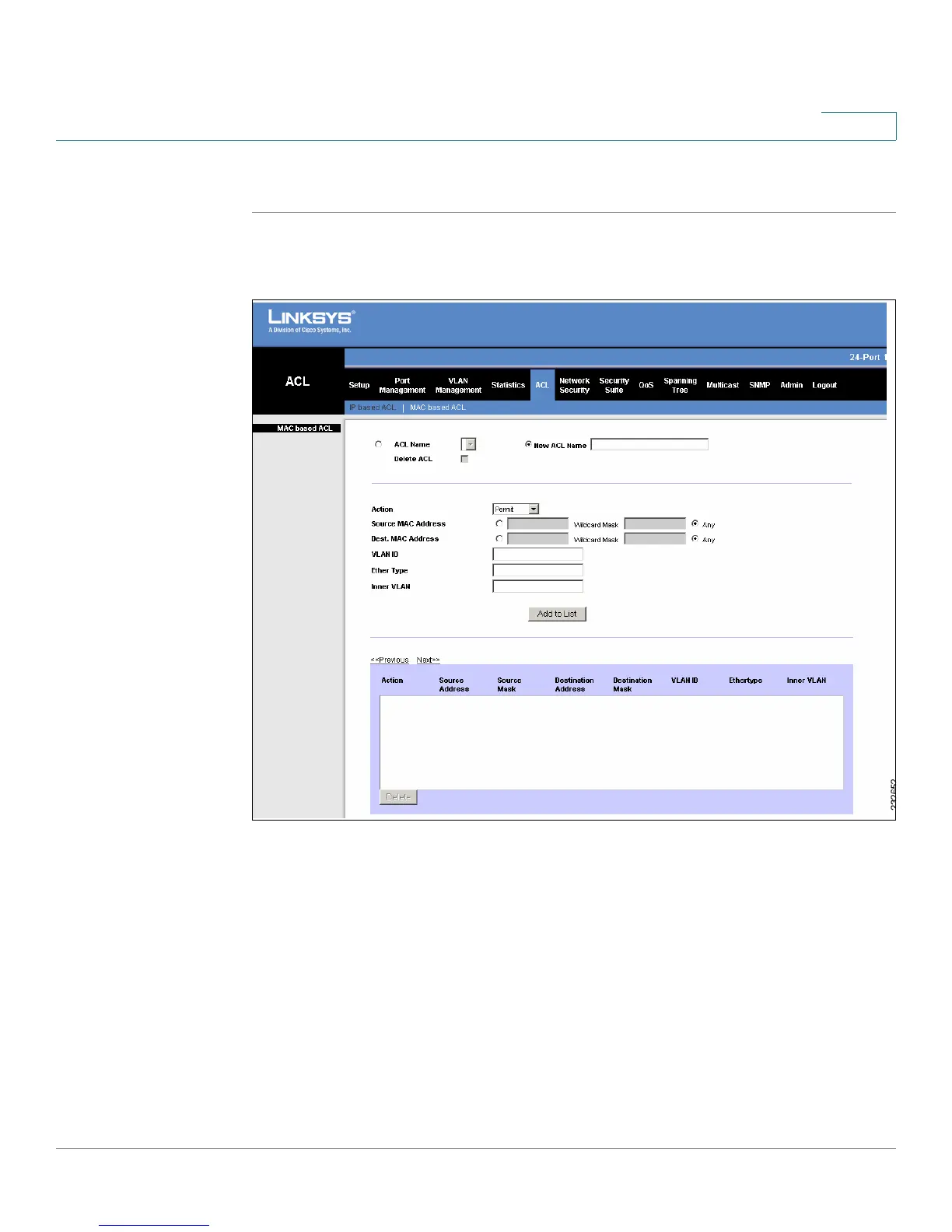

Figure 45 MAC Based ACL Screen
The
MAC Based ACL Screen
contains the following fields:
• ACL Name — User-defined ACLs.
• New ACL Name — Defines a new ACL name. Enter the name in the box.
• Delete ACL — Removes MAC based ACLs. The possible field values are:
-
Checked
— Deletes the selected MAC based ACL.
-
Unchecked
— Maintains the MAC based ACLs.
STEP 2 To display a MAC Based ACL configuration, select an ACL Name or enter a new
name to create a new ACL.
