Network Security
Storm Control
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 130
7
Storm Control is enabled per port by defining the packet type and the rate the
packets are transmitted. The system measures the incoming Broadcast and
Multicast frame rates separately on each port and discards the frames when the
rate exceeds a user-defined rate.
The system measures incoming Unknown Unicast frames (addressed to an
unknown destination MAC address) separately. The defined Unknown Unicast rate
threshold is the maximum rate that all ports are allowed to forward at any single
time.
The
Storm Control Screen (SPS 224G4)
provides fields for configuring packet
Storm Control.
STEP 1 Click Network Security > More > Storm Control. The
Storm Control Screen (SPS
224G4)
opens.

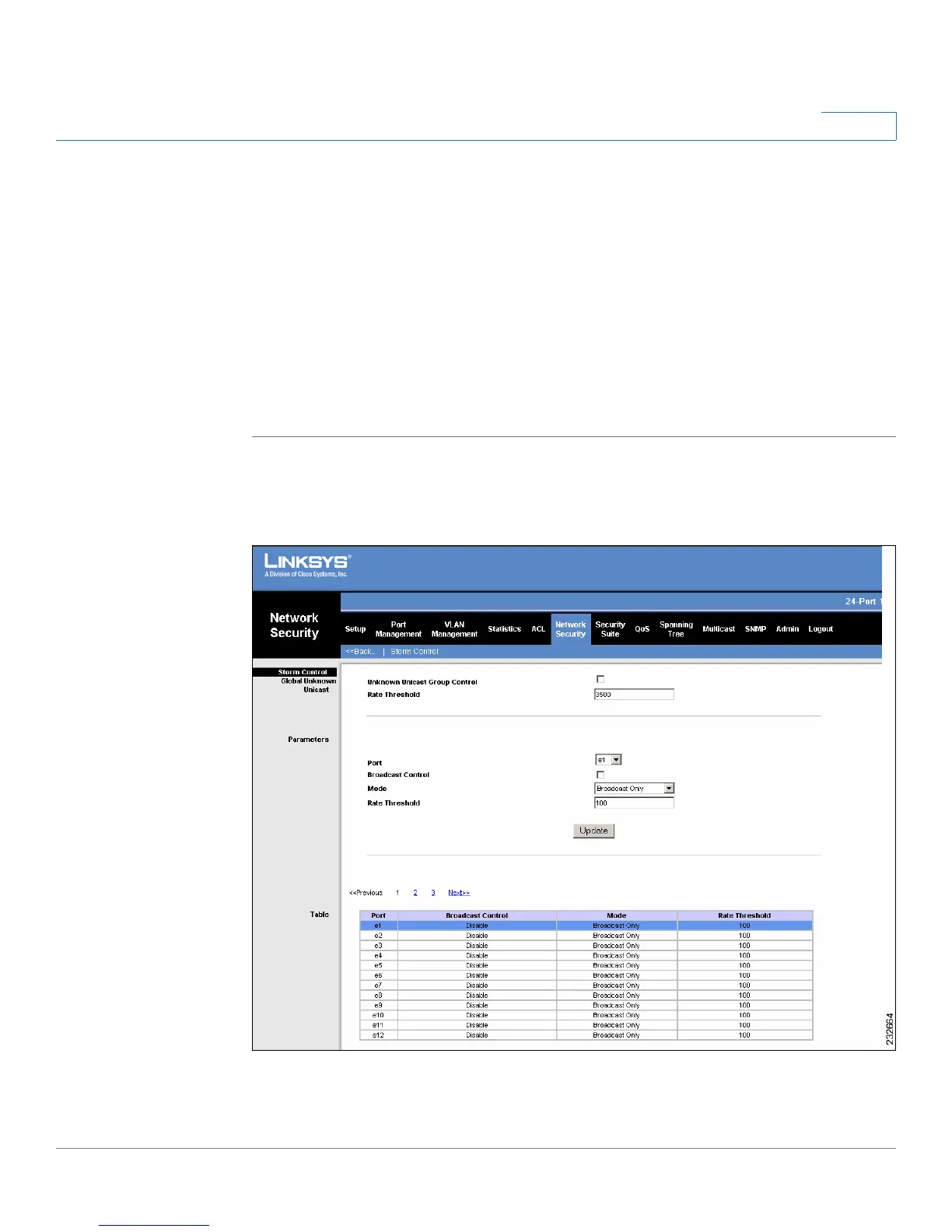

Figure 57 Storm Control Screen (SPS 224G4)
