QoS
Bandwidth
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 168
9
To define bandwidth settings:
STEP 1 Click QoS > Bandwidth. The
Bandwidth Screen
opens.

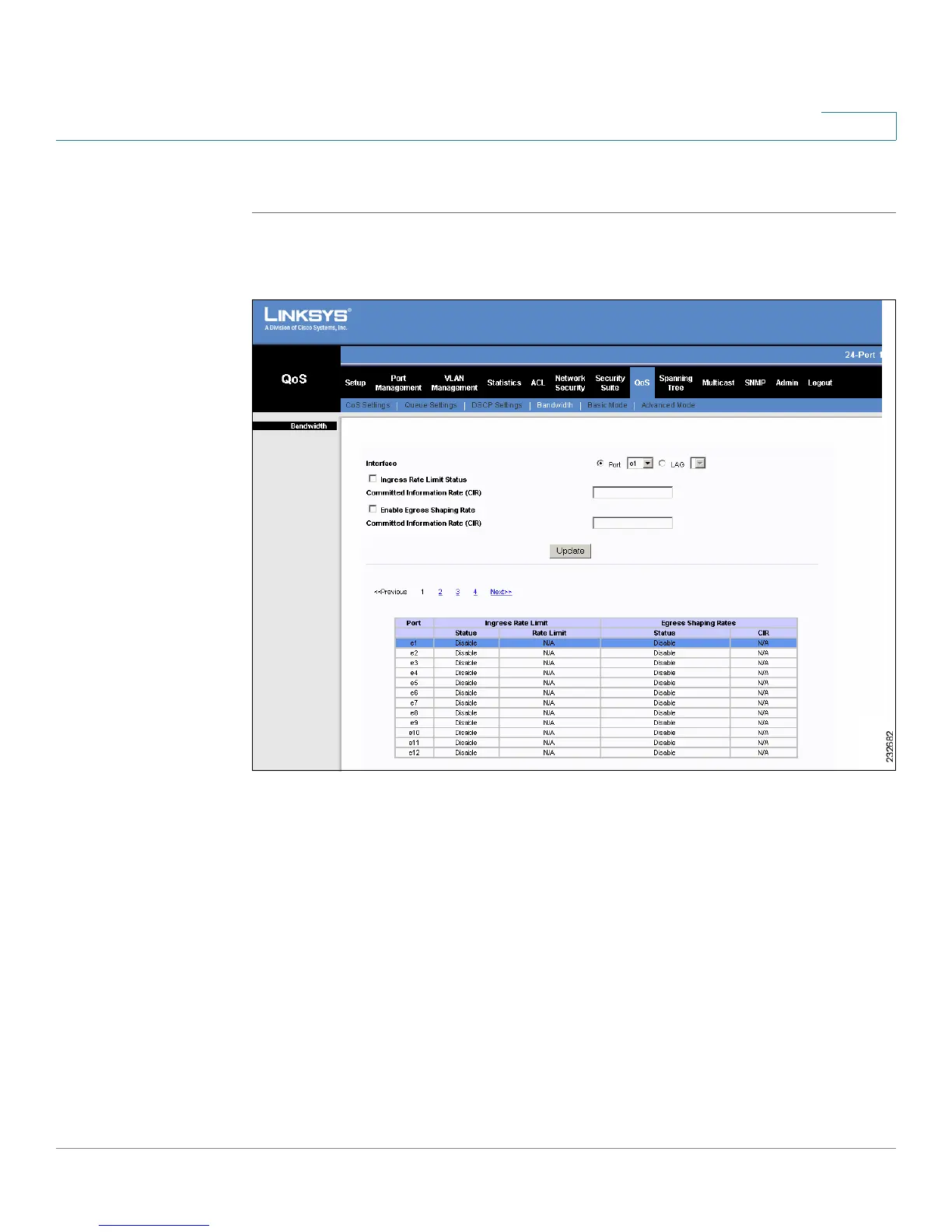

Figure 74 Bandwidth Screen
The
Bandwidth Screen
is divided into the following areas:
• Interface Bandwidth Parameters
• Bandwidth Table
The Interface Bandwidth Parameters area contains the following fields:
• Interface — Indicates the interface for which this bandwidth information is
displayed. The possible field values are:
-
Port
— Indicates the port for which the bandwidth settings are
displayed.
-
LAG
— Indicates the LAG for which the bandwidth settings are
displayed.
• Ingress Rate Limit Status — Enables ingress rate limiting on the interface.
